Siemens QF215H GFCI Miniature Circuit Breaker
- 15A
- 2 Pole
- Plug-On
Siemens
QF215H
GFCI Miniature Circuit Breaker
Brand
Siemens
SKU
QF215H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QF215H - 15A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
Description
Built for residential and commercial applications, the Siemens QF215H delivers reliable Class A 5mA ground-fault protection. This 15-amp, 2-pole miniature circuit breaker is designed to safeguard personnel in wet or damp locations like kitchens, bathrooms, and outdoor circuits. It mounts easily into Siemens PL, ES, EQ, and Ultimate load centers using a standard plug-on connection. Featuring a high 22kAIC rating, pigtail neutral, and self-test capabilities, it is replaced by the Q215GFH.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QF215H |
| Series | QF |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens PL, ES, EQ, Ultimate Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, HID Rated, Self-Test, Common Trip, Insta-Wire |
Product FAQs
6 answersWhich load centers are compatible with the QF215H breaker?
This breaker mounts into Siemens PL, ES, EQ, and Ultimate load centers. It is designed for panels that accept Type QPHF plug-on breakers.
What is the difference between the Siemens QF215 and the QF215H?
The H in the QF215H part number indicates a higher interrupting rating. The QF215H is rated for 22kAIC at 120/240VAC, whereas the standard QF215 is rated for 10kAIC.
What level of ground fault protection does the QF215H provide?
This breaker provides Class A ground fault protection. It is designed to trip when a ground fault of 5mA is detected, providing personnel protection for wet or damp locations like kitchens, bathrooms, and outdoor circuits.
How is the neutral connection wired on this GFCI breaker?

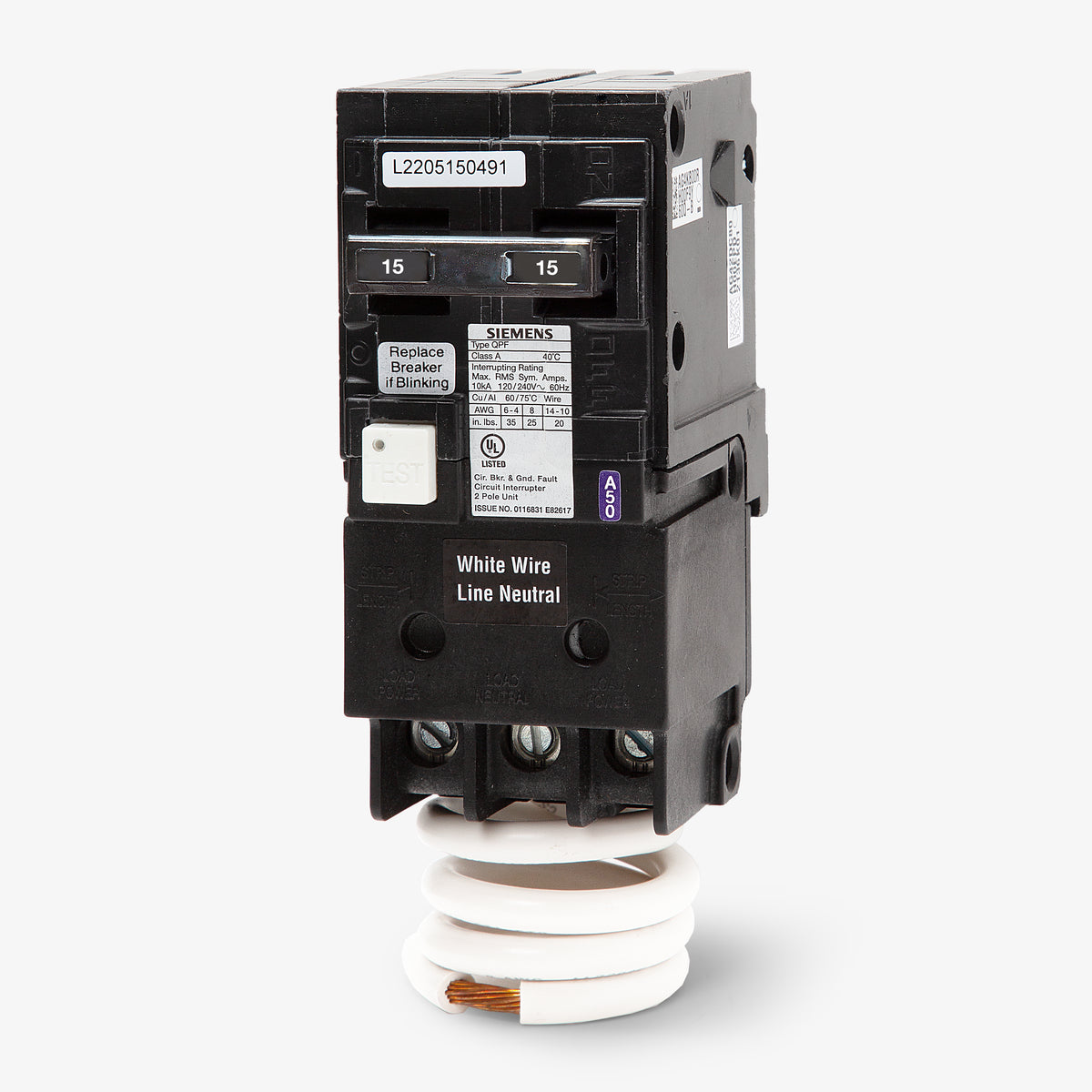

The QF215H features a factory-installed pigtail neutral wire. This coiled white wire must be connected directly to the neutral bus bar in the load center for the ground fault circuitry to operate correctly.
Can this 2-pole GFCI breaker be used for multi-wire branch circuits?
Yes, 2-pole GFCI breakers can be used to protect 120/240V multi-wire branch circuits with a shared neutral, or dedicated 240V loads. The load neutral must be connected to the neutral lug on the breaker itself.
What is the newer replacement model for the QF215H?
Siemens has updated their GFCI breaker lineup, and the QF215H is commonly replaced by the Q215GFH for newer installations.
