Siemens QF115A GFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Siemens
QF115A
GFCI Miniature Circuit Breaker
Brand
Siemens
SKU
QF115A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

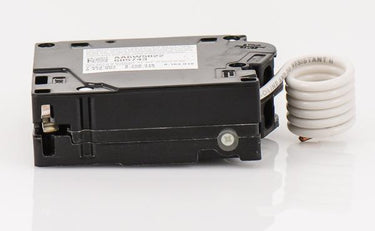

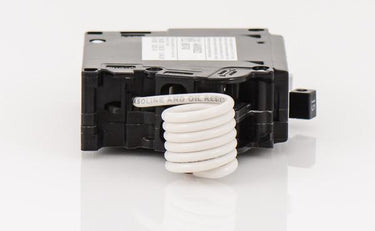

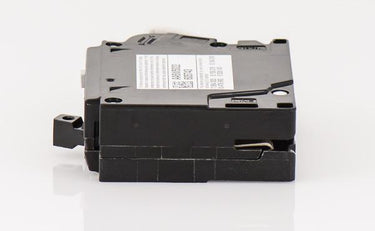

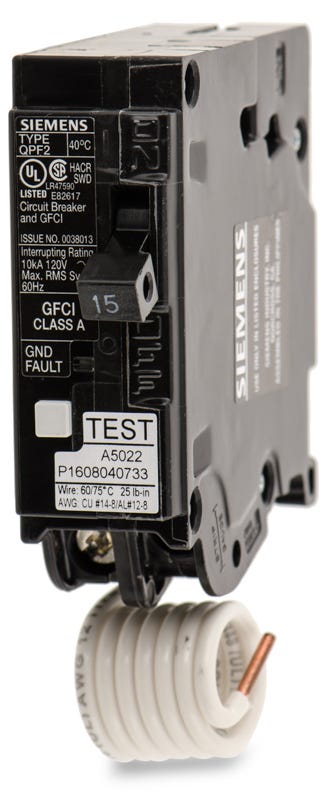

Siemens QF115A - 15A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
20A GFCI Miniature Circuit Breaker
20A GFCI Miniature Circuit Breaker
25A GFCI Miniature Circuit Breaker
Description
Engineered for residential and commercial applications, the Siemens QF115A delivers reliable Class A 5mA ground fault protection. It includes a built-in self-test feature to ensure ongoing safety compliance with current NEC requirements for wet or damp locations. This plug-on unit installs into Siemens PL, ES, EQ, and Ultimate load centers. It comes equipped with a factory-installed pigtail neutral and serves as an exact replacement for the discontinued QF115 model.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QF115A |
| Series | QF |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens PL, ES, EQ, Ultimate Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral (Factory Installed) |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, HID Rated, Self-Test, Insta-Wire |
Product FAQs
7 answersWhat does the A suffix in the QF115A catalog number indicate?
It indicates the inclusion of an automatic self-test feature. This mechanism routinely tests the internal GFCI circuitry to confirm proper function, complying with updated UL 943 requirements.
What is the ground fault trip sensitivity for this breaker?
The QF115A provides Class A personnel protection. It is calibrated to trip when it detects a ground fault leakage current of 5mA.
How is the pigtail neutral wired during installation?
The circuit load neutral must connect directly to the load neutral lug on the breaker. The factory-installed white pigtail wire is then routed and landed directly on the panel neutral bus bar.
Can the QF115A replace a discontinued QF115 breaker?
Yes. The QF115A is the direct upgrade and exact replacement for the older QF115 model. It shares the same plug-on footprint while adding modern self-test functionality.
Does this breaker replace Murray 15A GFCI breakers?
Yes. Siemens phased out the Murray product line. The QF115A replaces discontinued Murray GFCI models like the MP115GF. Always confirm the panel label permits Siemens QP or QPF2 breaker types.
Which load centers are compatible with this GFCI breaker?
The QF115A is designed for plug-on installation in Siemens PL, ES, EQ, and Ultimate series load centers.
What protective trip functions does the QF115A provide?
It features thermal magnetic trip technology with LIG functions. This delivers a long time delay for thermal overloads, instantaneous response for short circuits, and ground fault protection.
