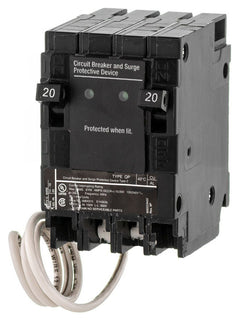

Siemens QSA2020TVSS 20/20A 2 Pole Miniature Circuit Breaker
- 20/20A
- 2 Pole
- Plug-On
Siemens
QSA2020TVSS
20/20A 2 Pole Miniature Circuit Breaker
Brand
Siemens
SKU
QSA2020TVSS
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QSA2020TVSS - 20/20A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items

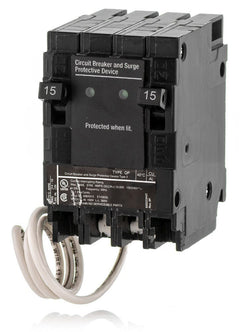

15/15A 2 Pole Miniature Circuit Breaker
20A 2 Pole Miniature Circuit Breaker
20A 2 Pole Miniature Circuit Breaker
Description
Designed for residential electrical systems, this Siemens TVSS module combines two 20A breakers with a transient voltage surge suppressor. It delivers thermal-magnetic overcurrent defense while protecting electronics from voltage spikes. This plug-on device installs into Siemens EQ, PL, and ES series load centers. Note that this model is superseded by the updated QSA2020SPD. Operating at 120/240V with a 10 kAIC rating, it includes LED status lights and a trip-to-notify safety feature.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QSA2020TVSS |
| Series | QSA |
| Amperage | 20/20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Siemens EQ, EQL, SEQ, EQG, PL, ES Series Load Centers |
| Wire Gauge | 14-6 AWG |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | LED Status Indicators |
|---|---|
| Standards | CSA C22.2, UL 1449, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Special Features | Surge Protective |
Product FAQs
7 answersWhat load centers are compatible with the QSA2020TVSS?
This plug-on surge breaker is designed for use in Siemens EQ, EQL, SEQ, EQG, PL, and ES series load centers. It installs directly onto the busbar, taking the place of standard QP breakers.
Is there a direct replacement for the QSA2020TVSS?
Yes, the QSA2020TVSS is an older model that has been superseded by the Siemens QSA2020SPD. The updated SPD version provides the same two 20A circuits and integrated whole-panel surge suppression.
How many panel spaces does the QSA2020TVSS require?
This unit requires two standard 1-inch panel spaces. It provides two 20A circuits along with whole-panel surge protection, ensuring you do not lose any usable breaker spaces in the load center.
What are the surge protection ratings for the QSA2020TVSS?
This transient voltage surge suppressor (TVSS) features an initial clamping level of 240V, a transient energy rating of 720 Joules (line-to-line), and a peak impulse current rating of 40kA.
How do I know if the surge protection on the QSA2020TVSS is still functioning?
The breaker features LED status indicators that remain lit while the transient voltage surge suppressor is active. If the surge protection capacity is depleted, the breaker will trip. After resetting, the breaker will continue to provide overcurrent protection, but the surge protection will be inactive.
Does the QSA2020TVSS only protect the two circuits it is connected to?
No. Once installed in the load center, the integrated transient voltage surge suppressor provides surge protection for the entire panel and all connected branch circuits, not just the two 20A circuits wired directly to it.
What type of circuits should be connected to the QSA2020TVSS?
Siemens recommends connecting this breaker to frequently used circuits. Because the breaker trips when surge protection is lost, wiring it to regularly used lights or devices provides an immediate, noticeable indication that the panel is no longer protected from surges.
