Square D QO310 Miniature Circuit Breaker
- 10A
- 3 Pole
- Plug-On
Square D
QO310
Miniature Circuit Breaker
Brand
Square D
SKU
QO310
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

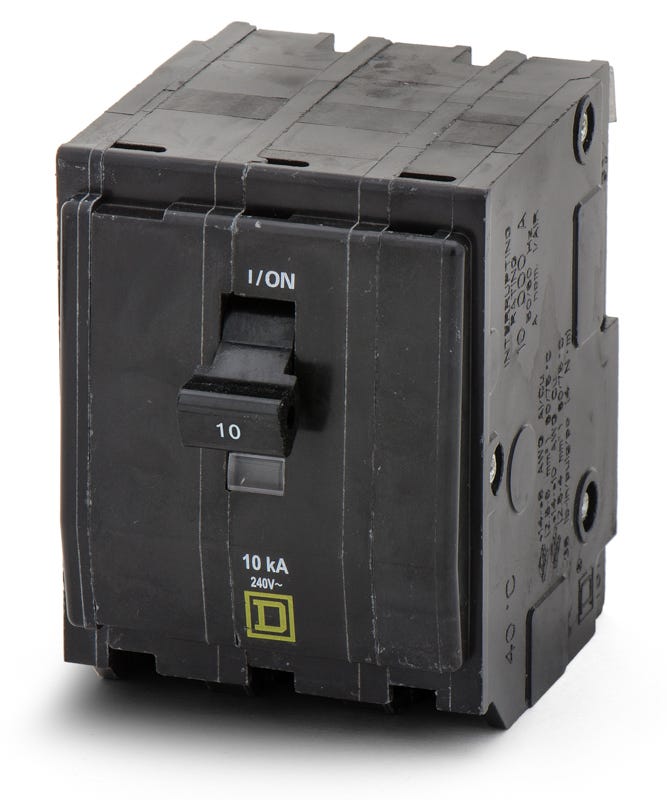

Square D QO310 - 10A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
15A 3 Pole Miniature Circuit Breaker
20A 3 Pole Miniature Circuit Breaker
20A 3 Pole Miniature Circuit Breaker
Description
Providing reliable three-phase overcurrent protection, this 10A miniature breaker serves specialized commercial and industrial equipment. It installs into Square D NQ panelboards and three-phase QO load centers, utilizing three standard pole spaces. The unit features a 10kA interrupting rating at 240VAC and incorporates the signature Visi-Trip window for rapid fault identification. Pressure plate terminals securely accommodate 14 to 8 AWG copper or aluminum wiring.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO310 |
| Series | QO |
| Amperage | 10A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Terminal Type | Pressure Plate |
|---|---|
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, Common Trip |
Product FAQs
5 answersCan I install the QO310 breaker in a Square D Homeline panel?
No. Square D QO and Homeline series breakers are not interchangeable. The QO310 is designed exclusively for QO load centers and NQ panelboards.
How many panel spaces does this 3-pole breaker require?
The QO310 requires three standard 3/4-inch spaces in a compatible QO load center or NQ panelboard.
Is there a bolt-on equivalent available for the QO310?
Yes, the bolt-on equivalent is the QOB310. It is used in NQ and older NQOD panelboards that require bolt-on connections rather than plug-on.
Does this breaker include a tripped circuit indicator?
Yes, it features the Square D Visi-Trip indicator. When the breaker trips, a highly visible red flag appears in the window to help you quickly identify the faulted circuit.
Is the QO310 suitable for HVAC equipment?
Yes, this breaker is HACR rated, making it approved for use with heating, air conditioning, and refrigeration equipment that requires this specific rating.
