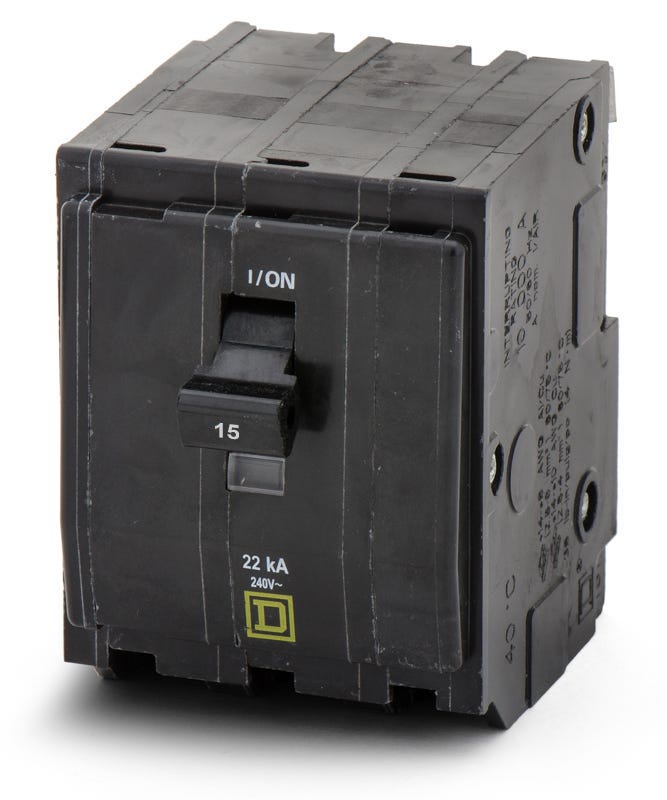

Square D QO315VH Miniature Circuit Breaker
- 15A
- 3 Pole
- Plug-On
Square D
QO315VH
Miniature Circuit Breaker
Brand
Square D
SKU
QO315VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO315VH - 15A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
40A 3 Pole Miniature Circuit Breaker
50A 3 Pole Miniature Circuit Breaker
60A 3 Pole Miniature Circuit Breaker
Description
Delivering enhanced short-circuit protection, the Square D QO315VH is a 15A, three-pole miniature circuit breaker with a high interrupting capacity. It provides reliable thermal-magnetic protection for commercial and industrial branch circuits requiring elevated fault current ratings. This plug-on breaker is compatible with Square D QO load centers, as well as NQ and legacy NQOD panelboards. It features pressure plate terminals that accommodate 14-8 AWG copper or aluminum conductors.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO315VH |
| Series | QO |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, High Interrupting Capacity |
Product FAQs
6 answersCan I install the QO315VH in a Square D Homeline load center?
No. QO series breakers are not interchangeable with Homeline panels. The QO315VH is designed exclusively for QO load centers, NQ panelboards, and NQOD panelboards.
What does the VH suffix in the QO315VH catalog number indicate?
The VH suffix designates a higher interrupting rating of 22kA at 120/240VAC. Standard QO breakers without this suffix typically have a 10kA interrupting rating.
How many panel spaces does this 3-pole breaker require?
The QO315VH requires three standard 3/4-inch spaces, taking up a total of 2.25 inches on the bus bar.
Does this breaker feature the Visi-Trip indicator?
Yes, it includes the Square D Visi-Trip red indicator, which provides a clear visual confirmation when the breaker has tripped.
Can I use the QO315VH to replace a standard QO315?
Yes, the QO315VH has the same physical dimensions and mounting style as the standard QO315, but it provides a higher 22kA interrupting rating for applications requiring greater fault current protection.
Is the QO315VH suitable for HVAC equipment?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires motor group combinations.
