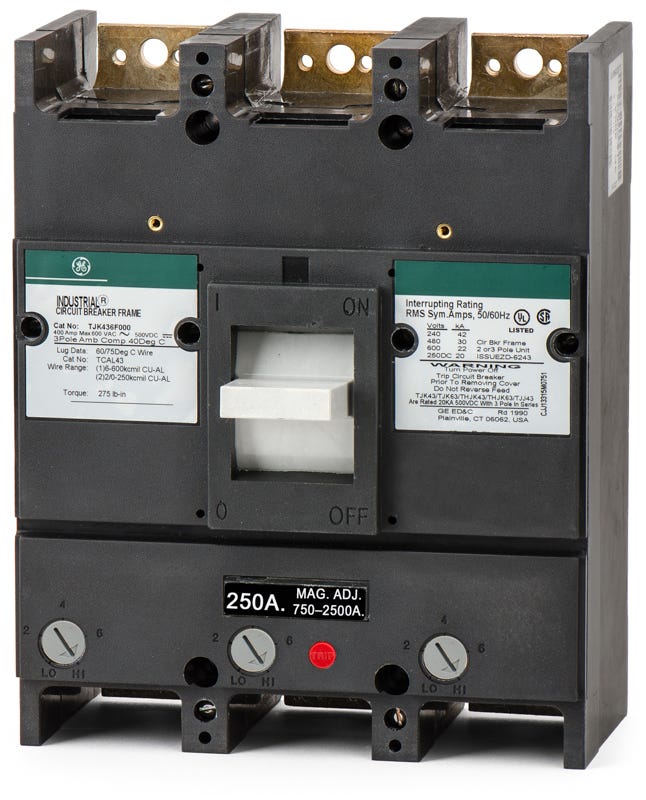

ABB / General Electric TJK436250 Molded Case Circuit Breaker
- 250A
- 3 Pole
- Bolt-On
ABB / General Electric
TJK436250
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TJK436250
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TJK436250 - 250A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTJK436225
225A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJK436300
300A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJK436250WL
250A 3 Pole Molded Case Circuit Breaker
Description
Serving as a high-capacity distribution component, this 250-amp molded case circuit breaker provides essential long-time and instantaneous fault defense. It fastens securely into GE A-Series panelboards, J600 enclosures, and standard switchboards via a bolt-on mounting style. Users benefit from an interchangeable trip unit that simplifies maintenance and system upgrades. Capable of interrupting 42kA at 240VAC, it meets rigorous industrial standards for safety and performance.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJK436250-R |
| Series | TJK |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE J600 Panelboards, GE A-Series Panelboards, GE Switchboards |
| Wire Gauge | (1) 6 AWG-600 kcmil (Cu/Al) or (2) 2/0 AWG-250 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Lugs (TCAL43) |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit |
Product FAQs
5 answersWhich panelboards and switchboards are compatible with the TJK436250 breaker?
This J-Frame breaker is designed for bolt-on installation in GE J600 panelboards, GE A-Series panelboards, and compatible GE switchboards.
What are the acceptable wire sizes for the lugs on the TJK436250?
The standard lugs accept either one wire ranging from 6 AWG to 600 kcmil or two wires ranging from 2/0 AWG to 250 kcmil. Both copper and aluminum conductors are supported.
Does the TJK436250 feature adjustable trip settings?
Yes, this breaker uses a thermal-magnetic trip unit with fixed thermal protection for long-time overloads and an adjustable magnetic setting for instantaneous short-circuit protection.
Why might the TJK436250 arrive with ABB branding instead of General Electric?
ABB acquired GE Industrial Solutions. As a result, newly manufactured TJK series breakers may feature ABB branding while retaining the exact same physical dimensions, mounting, and electrical characteristics as the legacy GE versions.
Can the TJK436250 be utilized in direct current systems?
Yes, this breaker is rated for DC applications up to 500VDC, providing a 20kA interrupting capacity at both 250VDC and 500VDC.
