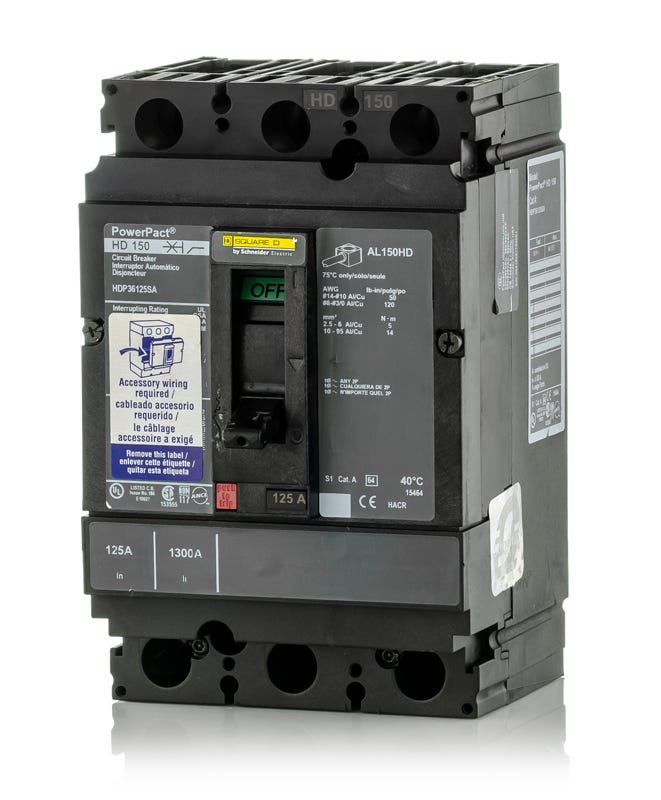

Square D HDP36125SA Molded Case Circuit Breaker
- 125A
- 3 Pole
- Unit Mount
Square D
HDP36125SA
Molded Case Circuit Breaker
Brand
Square D
SKU
HDP36125SA
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HDP36125SA - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
125A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Delivering versatile protection, the Square D HDP36125SA is a 125A, 3-pole MCCB from the PowerPacT H-Frame series. It provides long-time and instantaneous (LI) trip functions. This unit-mount breaker is designed for installation in control panels and switchboards. It features load-side lugs that accommodate 14-3/0 AWG wire. A factory-installed shunt trip allows for remote tripping. Rated at 18 kAIC at 480VAC, it features a trip-free mechanism and reverse-feed capabilities.Specifications
| Brand | Square D |
|---|---|
| Part Number | HDP36125SA |
| Series | HDP |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Industrial Control Panels, Switchboards |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Trip-Free Mechanism |
