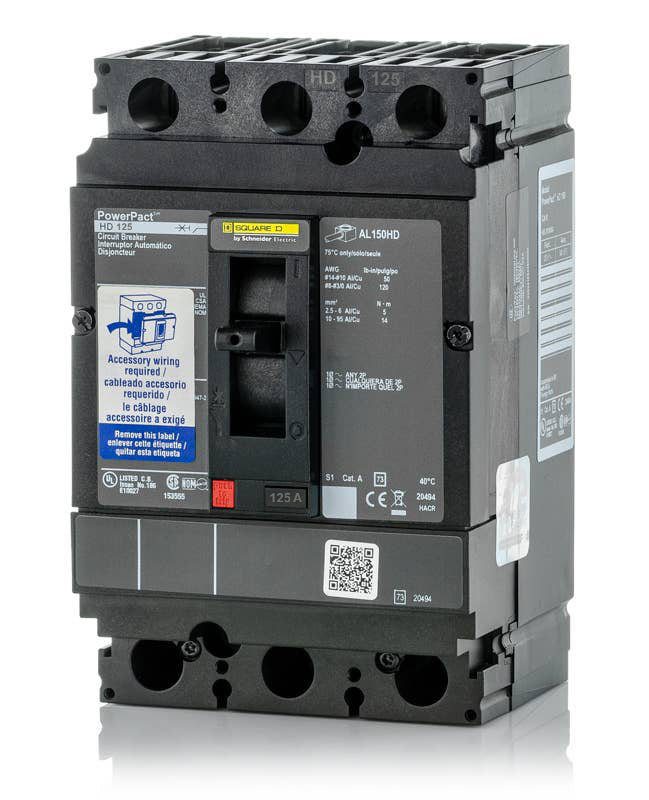

Square D HDL36125SA Molded Case Circuit Breaker
- 125A
- 3 Pole
- Unit Mount
Square D
HDL36125SA
Molded Case Circuit Breaker
Brand
Square D
SKU
HDL36125SA
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HDL36125SA - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
110A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
Description
Engineered for industrial applications, the Square D HDL36125SA is a 3-pole, 125A molded case circuit breaker from the PowerPacT H-Frame family. It provides reliable thermal-magnetic protection for demanding electrical systems. This unit mount MCCB installs into control panels and switchboards, accepting 14 to 3/0 AWG wire. Rated 14 kAIC at 600VAC, it includes a factory-installed 120VAC shunt trip for remote tripping capabilities. It features a Visi-Trip indicator and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | HDL36125SA |
| Series | HDL |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, Industrial Enclosures |
| Wire Gauge | 14 AWG-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip 120VAC (Factory Installed) |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, 80% Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhat does the "SA" suffix indicate on the HDL36125SA catalog number?
The "SA" suffix means this breaker includes a factory-installed 120VAC (110-130VAC) shunt trip. This allows the breaker to be tripped remotely by applying a control voltage signal.
Do I need to purchase lugs separately for the HDL36125SA?
No, this breaker comes with factory-installed lugs that accept 14 AWG to 3/0 AWG aluminum or copper wire.
Which breaker frame family does the HDL36125SA belong to?
It is part of the Square D PowerPacT H-Frame family. It is commonly used in industrial control panels, switchboards, and industrial enclosures.
What does the LI trip function code mean on this breaker?
The LI code indicates the thermal-magnetic trip unit provides Long-Time (overload) and Instantaneous (short circuit) protection. Both the thermal and magnetic trip points are fixed on this specific model.
Is this breaker suitable for DC control panels?
Yes, the HDL36125SA is rated for use in DC systems up to 250VDC, providing a 20 kA interrupting capacity for those applications.
What does unit mount mean for the HDL36125SA?
Unit mount means the breaker is designed to be bolted directly to a backpan or mounting surface in a control panel or enclosure, rather than plugging into an I-Line busbar system.
