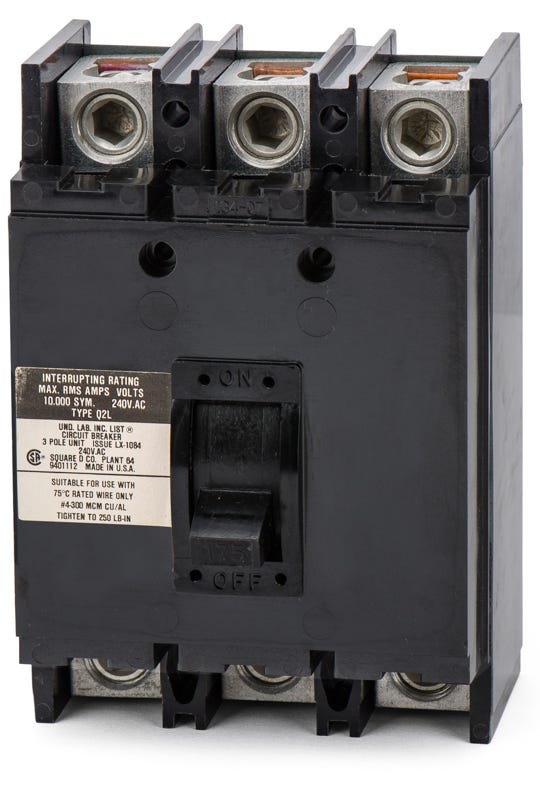

Square D Q2L32175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Unit Mount
Square D
Q2L32175
Molded Case Circuit Breaker
Brand
Square D
SKU
Q2L32175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D Q2L32175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
175A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Part of Square D's legacy Q-frame lineup, this 175A molded case circuit breaker delivers reliable thermal-magnetic protection for commercial systems. It features a non-interchangeable trip unit with long-time and instantaneous functions. Designed for unit mounting, it installs into Square D enclosures, switchboards, and older NQOD panelboards. This legacy Q2L series is superseded by the QBL32175 model.Specifications
| Brand | Square D |
|---|---|
| Part Number | Q2L32175-R |
| Series | Q2L |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Enclosures, Switchboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, Common Trip, Non-Interchangeable Trip |
Product FAQs
5 answersWhat equipment is compatible with the Q2L32175 circuit breaker?
This legacy Q-frame breaker is designed for installation in Square D individual enclosures, switchboards, and legacy NQOD panelboards.
Can a modern PowerPact QB breaker replace the Q2L32175?
While modern PowerPact Q-frame breakers (such as the QBL series) physically fit, using the exact legacy Q2L32175 preserves the original UL listing of legacy NQOD panelboards.
How is the Q2L32175 mounted?
It is a unit-mount, feed-thru circuit breaker. It secures directly to the enclosure or panelboard rather than plugging onto a bus, utilizing mechanical lugs on both the line and load sides.
What wire sizes are accepted by the terminals on this 175A breaker?
The standard lugs accommodate either aluminum or copper conductors ranging from 4 AWG to 300 kcmil.
What type of protection does the thermal-magnetic trip unit provide?
The fixed thermal-magnetic trip unit delivers standard LI protection, combining long-time thermal response for overloads with an instantaneous magnetic response for short circuits.
