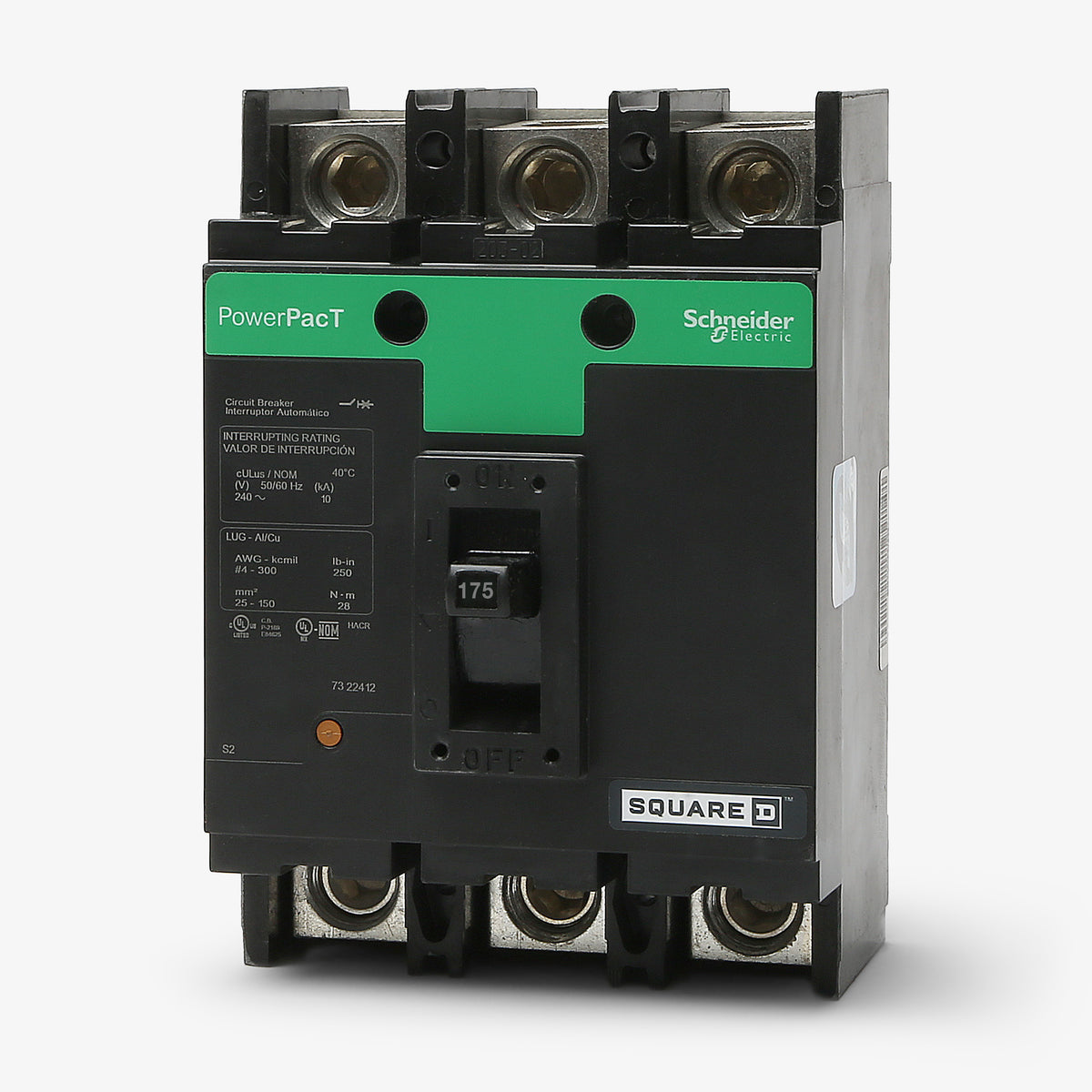

Square D QBL32175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Unit Mount
Square D
QBL32175
Molded Case Circuit Breaker
Brand
Square D
SKU
QBL32175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBL32175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QBL32175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | QBL |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Q2 Enclosures, Switchboards, Control Panels |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|

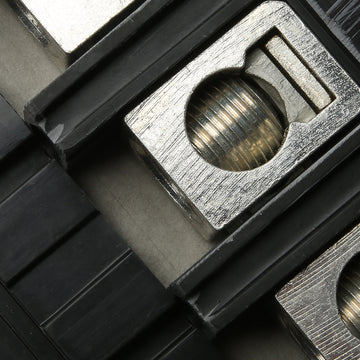

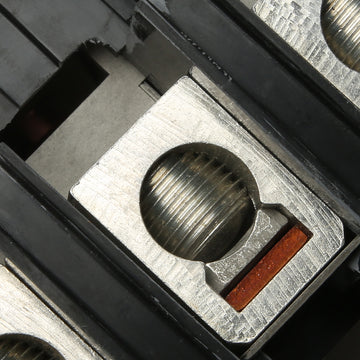

| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Visual Trip Indicator |
Quantity
Square D QBL32175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | QBL |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Q2 Enclosures, Switchboards, Control Panels |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Visual Trip Indicator |
Similar Items
200A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty applications, the 3-pole 175A Square D QBL32175 MCCB provides essential thermal-magnetic protection for 240V commercial and industrial systems. It belongs to the robust PowerPacT Q-Frame family. This unit-mount breaker comes with factory-installed line and load lugs, making it ideal for Square D Q2 enclosures, switchboards, and control panels. It replaces discontinued Q23175 breakers. Key features include a 10kAIC rating, fixed LI trip functions, and a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Series | QBL |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Q2 Enclosures, Switchboards, Control Panels |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Visual Trip Indicator |
Product FAQs
5 answersIs the QBL32175 compatible with Square D I-Line panelboards?
No. This is a unit-mount circuit breaker equipped with feed-thru lugs for cabled applications. It will not plug into an I-Line bussing system.
What older Square D circuit breakers does the QBL32175 replace?
The PowerPacT Q-frame unit-mount breaker is a direct replacement for discontinued Square D Q2 series breakers, such as the Q23175. It shares the same mounting footprint, door trim, and handle location.
Does the QBL frame offer higher interrupting ratings if my system requires it?
Yes. While the QBL model provides a 10kA interrupting rating at 240VAC, the identical footprint is available in QD (25kA), QG (65kA), and QJ (100kA) versions for systems with higher available fault currents.
Does this breaker feature a push-to-trip button for mechanical testing?
Yes, PowerPacT Q-frame breakers include an integral push-to-trip button on the front cover. This allows you to manually trip the mechanism and verify proper operation during maintenance.
Can the QBL32175 be installed on a DIN rail?

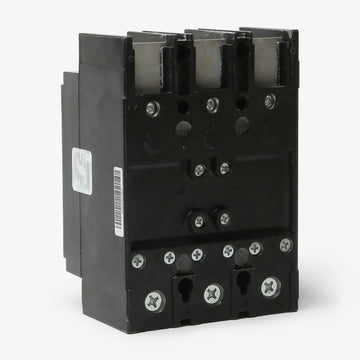

Out of the box, it is designed for free-standing unit mounting on a backpan or baseplate. However, you can mount it to a DIN rail by purchasing a separate compatible DIN rail adapter kit.
