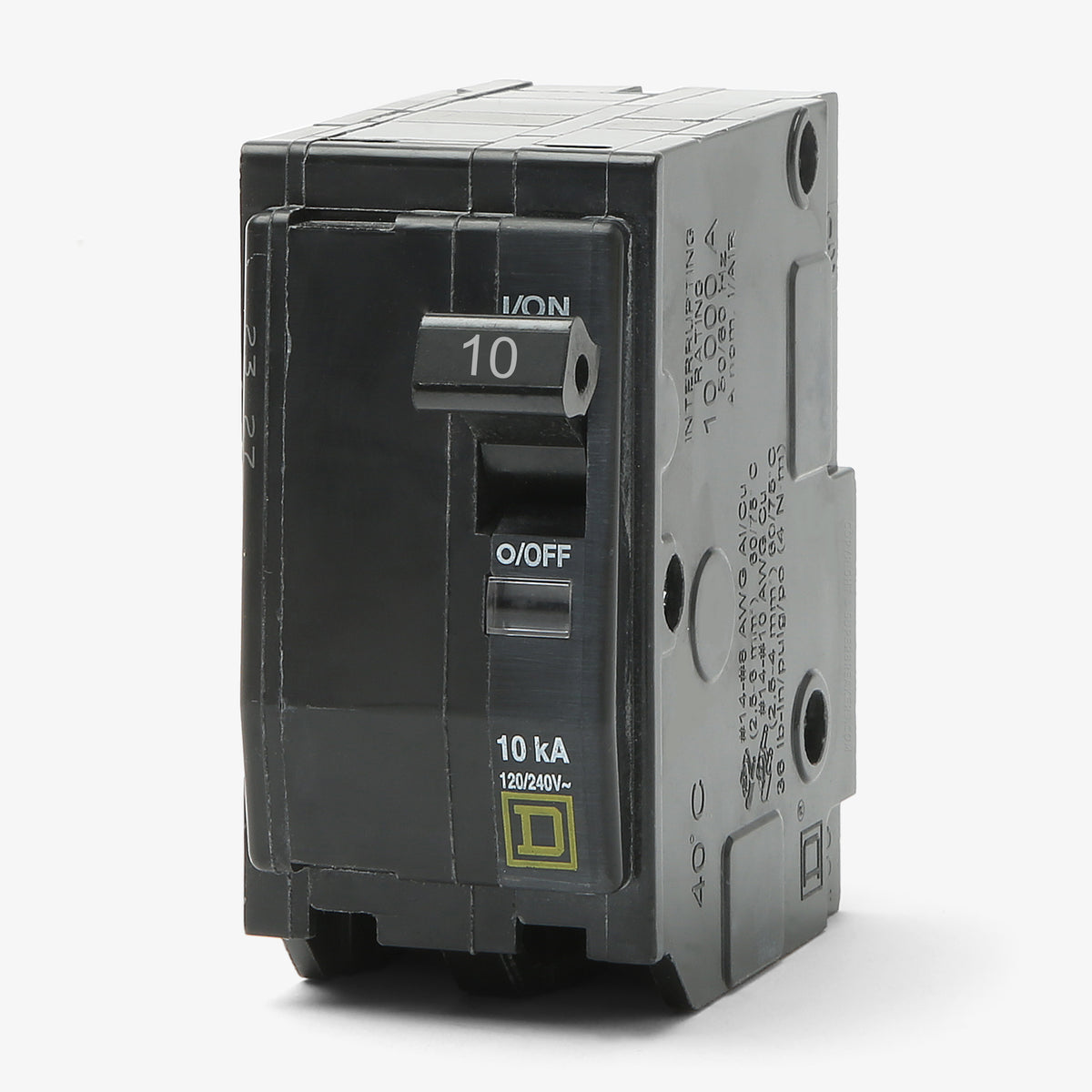

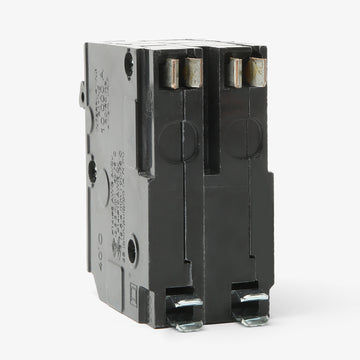

Square D QO210 Miniature Circuit Breaker
- 10A
- 2 Pole
- Plug-On
Square D
QO210
Miniature Circuit Breaker
Brand
Square D
SKU
QO210
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO210 - 10A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QO210 - 10A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QO210 |
| Series | QO |
| Amperage | 10A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Sold out
Quantity
Square D QO210 - 10A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QO210-R |
| Series | QO |
| Amperage | 10A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Similar Items
15A 2 Pole Miniature Circuit Breaker
20A 2 Pole Miniature Circuit Breaker
20A 2 Pole Miniature Circuit Breaker
Description

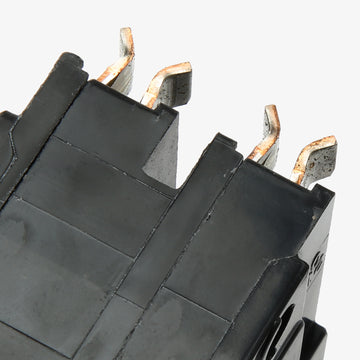

Engineered for precise overcurrent protection, the Square D QO210 provides 10A of capacity for specialized commercial loads. This miniature circuit breaker utilizes a thermal-magnetic trip mechanism to ensure reliable performance across 120/240VAC systems. The plug-on design mounts into QO load centers, NQ, and NQOD panelboards. It accepts 14-8 AWG wiring via pressure plate terminals. The built-in Visi-Trip indicator displays a red flag when tripped, allowing for rapid fault identification.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO210 |
| Series | QO |
| Amperage | 10A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Product FAQs
5 answersCan I install the QO210 in a Square D Homeline load center?
No. Square D QO and Homeline circuit breakers are not interchangeable. The QO210 is designed exclusively for QO load centers, NQ panelboards, and legacy NQOD panelboards.
Is there a bolt-on equivalent for the QO210?
Yes. If your panelboard requires a bolt-on connection rather than a plug-on mount, the equivalent breaker is the QOB210.
Can the QO210 be used in DC control circuits?
Yes, this thermal magnetic breaker is rated for DC applications up to 48VDC, providing a 5kA interrupting capacity for low-voltage control or battery circuits.
Does this breaker feature a tripped-state indicator?
Yes, it includes the Square D Visi-Trip indicator. When the breaker trips, a highly visible red flag appears in the window to help quickly identify the faulted circuit in the panel.

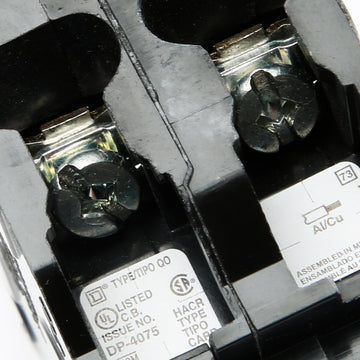

Will the pressure plate terminals accept aluminum wiring?
Yes, the terminals are dual-rated for both aluminum and copper conductors. They accept wire gauges from 14 AWG to 8 AWG.
