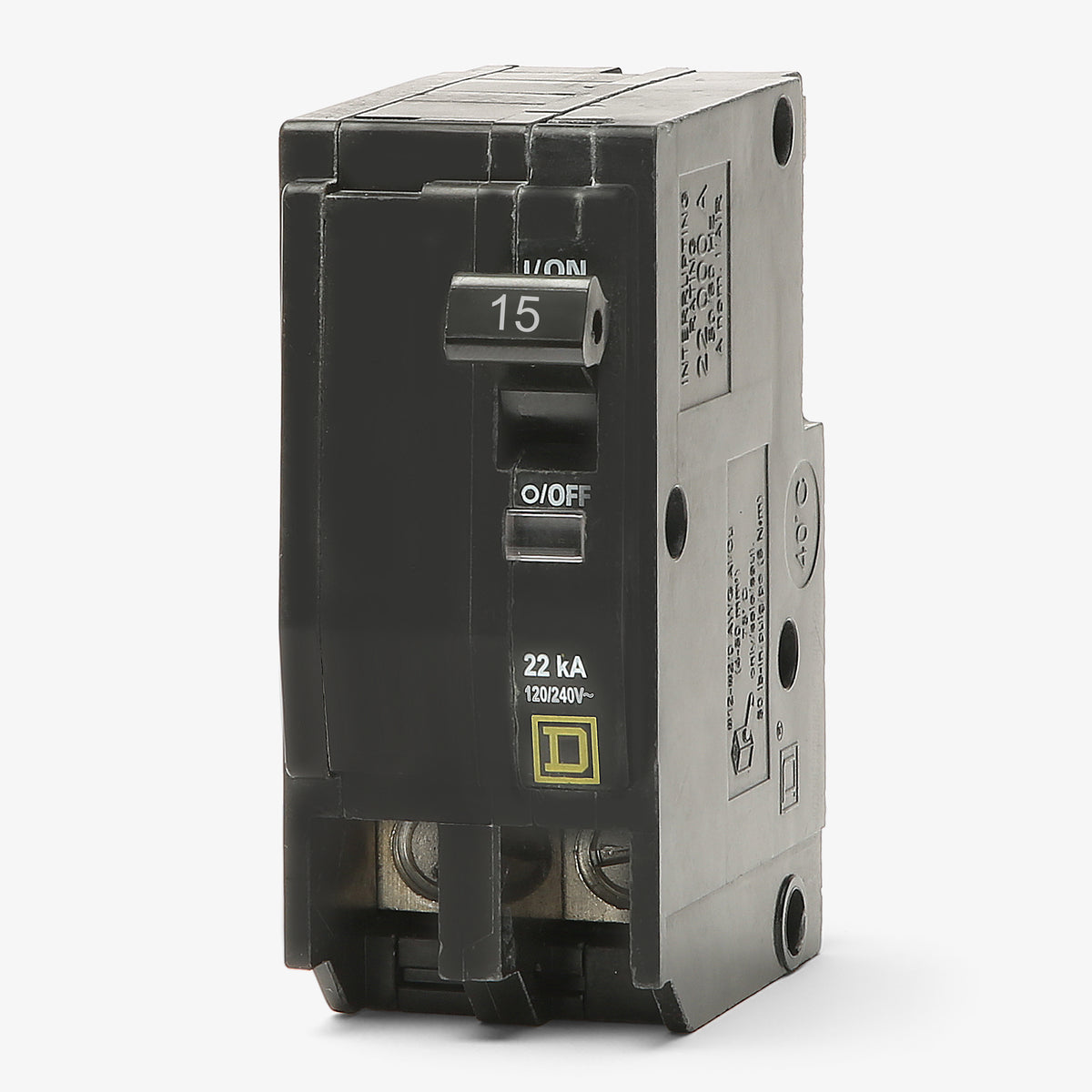

Square D QO215VH Miniature Circuit Breaker
- 15A
- 2 Pole
- Plug-On
Square D
QO215VH
Miniature Circuit Breaker
Brand
Square D
SKU
QO215VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO215VH - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
25A 2 Pole Miniature Circuit Breaker
30A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
Description
Part of the QO series, the Square D QO215VH is a 2-pole, 15-amp miniature circuit breaker designed for robust thermal-magnetic protection. It is engineered for commercial and industrial applications requiring higher interrupting capacities. This plug-on breaker installs into Square D QO load centers, NQ panelboards, and Speed-D switchboards. It accepts 14-8 AWG wire via pressure plate terminals.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO215VH |
| Series | QO |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards, Speed-D Switchboard Distribution Panels |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Visi-Trip Indicator |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, High Interrupting Capacity, Common Trip |
Product FAQs
5 answersWhat does the VH suffix indicate on the QO215VH circuit breaker?
The VH designation means this breaker has a high interrupting rating of 22kAIC. Standard QO breakers without this suffix typically have a 10kAIC rating.
Can I install the QO215VH in a Square D Homeline load center?
No. Square D QO and Homeline breakers are not interchangeable. QO breakers are 3/4-inch wide per pole and only fit QO load centers, NQ panelboards, and specific switchboards, whereas Homeline breakers are 1-inch wide per pole.
Does this breaker include the Visi-Trip indicator?
Yes, the QO215VH features the Square D Visi-Trip visual indicator. When the breaker trips, a red flag appears in the window, making it easy to identify the tripped circuit inside the panel.
Is the QO215VH suitable for HVAC applications?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires this specific safety designation.
Can the QO215VH be used to replace a standard QO215?
Yes. The QO215VH shares the same physical dimensions and mounting style as the standard QO215. It can be used as a direct replacement or upgrade in applications that require a higher 22kAIC interrupting capacity.
