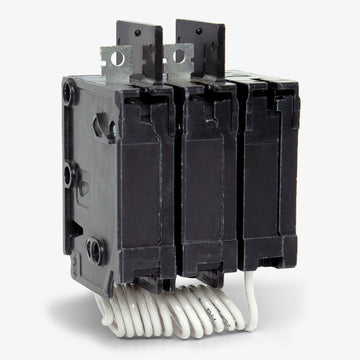

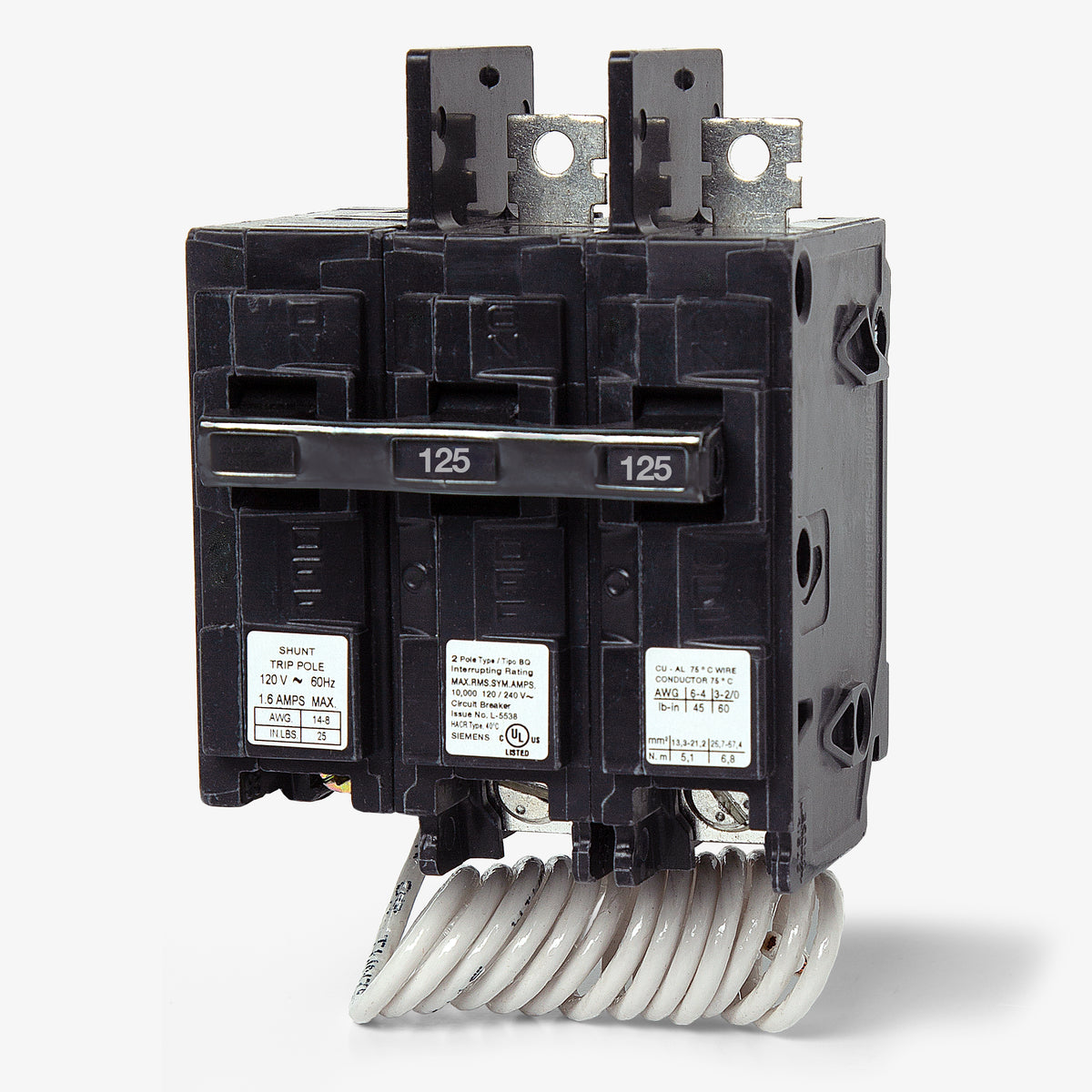

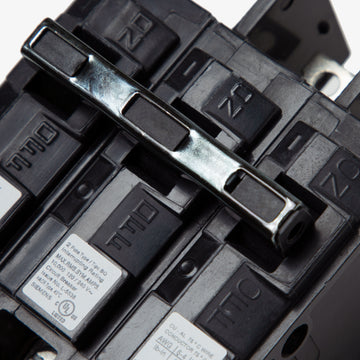

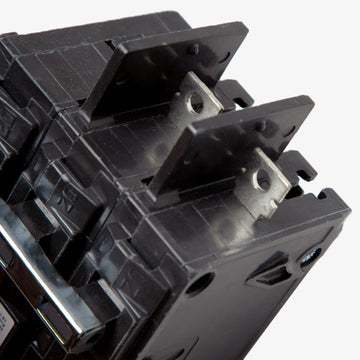

Siemens BQ2B12500S01 Molded Case Circuit Breaker
- 125A
- 2 Pole
- Bolt-On
Siemens
BQ2B12500S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQ2B12500S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQ2B12500S01 - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
90A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
Description
Designed for advanced control applications, the Siemens BQ2B12500S01 features a factory-installed 120VAC shunt trip for remote disconnect capabilities. This 125A, two-pole molded case circuit breaker delivers reliable thermal-magnetic protection for 120/240VAC systems. It utilizes a bolt-on mounting style to ensure a secure connection within Siemens P1 and legacy ITE panelboards. Rated at 10kAIC, this HACR-rated unit includes common trip functionality and standard load side lugs.Specifications
| Brand | Siemens |
|---|---|
| Series | BQ |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards, ITE Panelboards |
| Wire Gauge | 4-2/0 AWG (Cu), 2-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG (Cu), 2 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip 120VAC, Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
6 answersIs the BQ2B12500S01 compatible with older ITE panelboards?
Yes. Siemens acquired ITE and maintains backward compatibility for the BQ frame. This breaker will bolt directly into legacy ITE panelboards as well as modern Siemens P1 panelboards.
What does the 00S01 suffix mean on the BQ2B12500S01?
The 00S01 suffix indicates that this breaker includes a factory-installed 120VAC shunt trip. This differentiates it from the standard BQ2B125, which does not have remote tripping capabilities.
How does the shunt trip operate on this breaker?
The integrated shunt trip requires an external 120VAC control signal. When voltage is applied to the shunt trip leads, it mechanically trips the breaker to open the contacts and disconnect the load.
When is the shunt trip feature typically utilized?
The 120VAC shunt trip is commonly used in commercial and industrial control applications that require a remote disconnect for safety. Examples include tying the breaker into a fire alarm system, an emergency stop button, or a remote control panel.
Is the BQ2B12500S01 suitable for HVAC applications?
Yes. This breaker is HACR rated, meaning it is tested and approved for use with heating, air conditioning, and refrigeration equipment.
What is the UPC for the Siemens BQ2B12500S01?
The standard industry UPC for this specific shunt trip circuit breaker is 783643088849.
