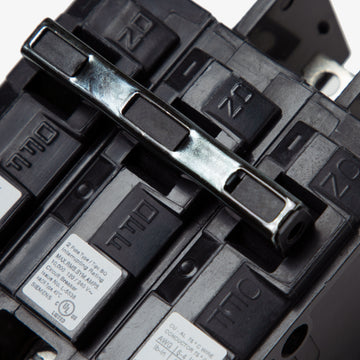

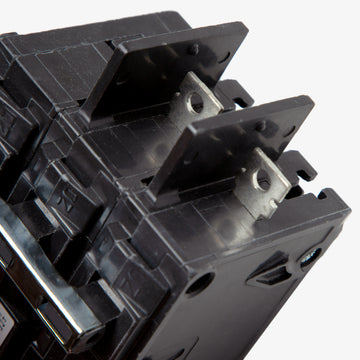

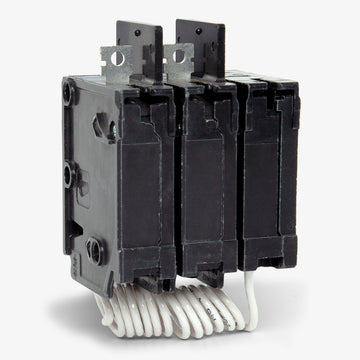

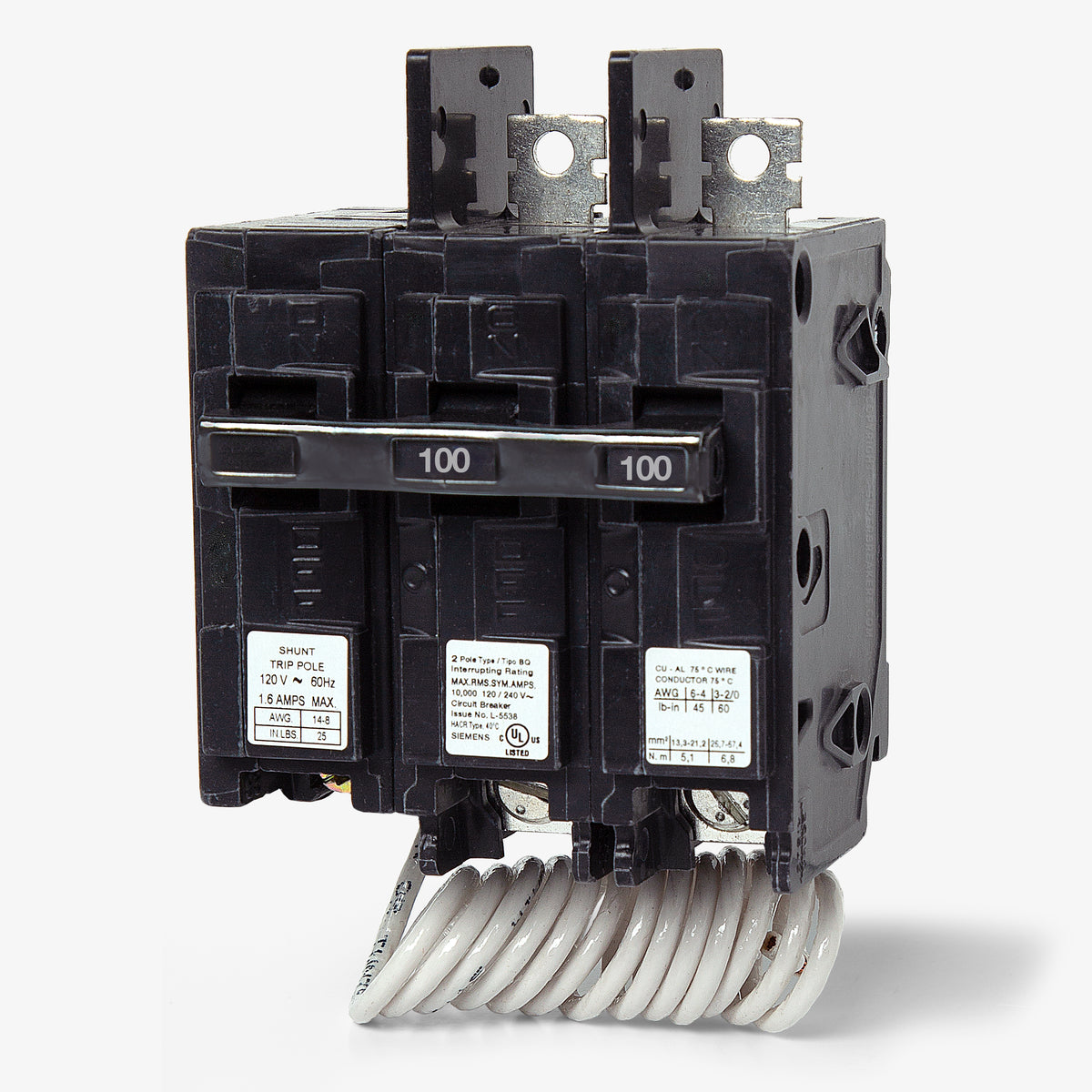

Siemens BQ2B10000S01 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
Siemens
BQ2B10000S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQ2B10000S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQ2B10000S01 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
80A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
Description
Designed for advanced control, the Siemens BQ2B10000S01 integrates a 120VAC shunt trip for remote disconnect applications. This 2-pole, 100A molded case circuit breaker delivers reliable thermal-magnetic protection with a 10kAIC rating at 120/240VAC. The bolt-on design provides a stable connection within Siemens P1, S1, S2, and SE panelboards. It features standard lug terminals for secure wiring. With its HACR rating and factory-installed shunt trip, it is ideal for emergency stop systems.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQ2B10000S01 |
| Series | BQ |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, S1, S2, SE Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs, Shunt Trip 120VAC |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhat does the S01 suffix mean in the BQ2B10000S01 catalog number?
The S01 suffix indicates that this circuit breaker is factory-equipped with a 120VAC shunt trip.
Which panelboards are compatible with the Siemens BQ2B10000S01 circuit breaker?
This bolt-on breaker is designed for use in Siemens P1, S1, S2, and SE series panelboards.
What wire sizes and materials are accepted by the lugs on the BQ2B10000S01?
The load side lugs accept 8 to 1 AWG copper (Cu) wire or 6 to 1/0 AWG aluminum (Al) wire.
Is the Siemens BQ2B10000S01 HACR rated?
Yes, this circuit breaker is HACR rated for use with heating, air conditioning, and refrigeration equipment.
Does the BQ2B10000S01 mount via plug-on or bolt-on connection?
This is a bolt-on circuit breaker, meaning it requires a bolted connection to the panelboard busbar rather than a plug-on installation.
What type of trip unit is used in the BQ2B10000S01?
It features a fixed thermal-magnetic trip unit that provides both long-time overload and instantaneous short-circuit protection.
