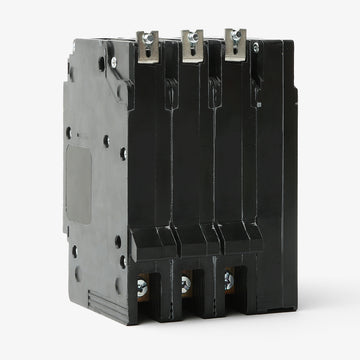

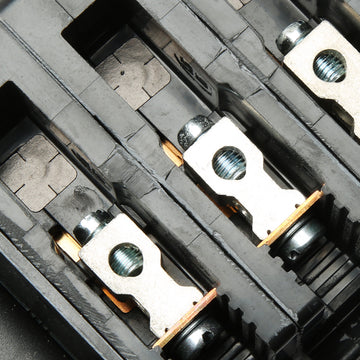

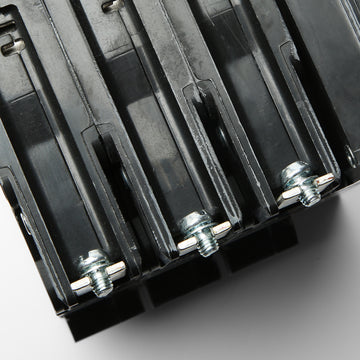

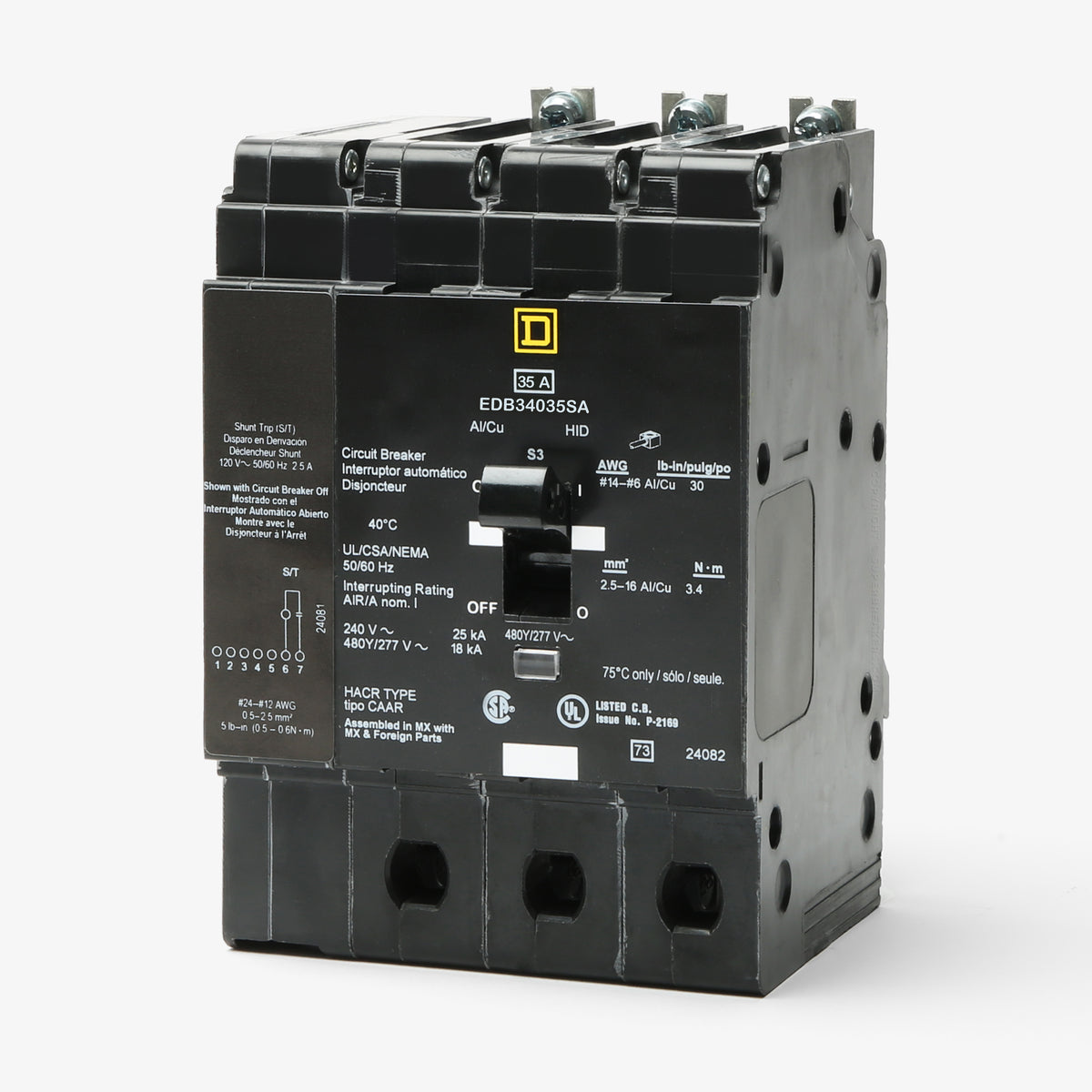

Square D EDB34035SA Miniature Circuit Breaker
- 35A
- 3 Pole
- Bolt-On
Square D
EDB34035SA
Miniature Circuit Breaker
Brand
Square D
SKU
EDB34035SA
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EDB34035SA - 35A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
30A 3 Pole Miniature Circuit Breaker
45A 3 Pole Miniature Circuit Breaker
25A 3 Pole Miniature Circuit Breaker
Description
Integrating remote tripping capabilities, this 35A commercial breaker includes a factory-installed 120VAC shunt trip mechanism. The thermal-magnetic design delivers reliable overcurrent protection for demanding industrial environments. Installs into Square D NF panelboards via a sturdy bolt-on configuration. Due to the integrated shunt trip accessory, this three-pole device requires four pole spaces within the enclosure.Specifications
| Brand | Square D |
|---|---|
| Part Number | EDB34035SA |
| Series | EDB |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480Y/277VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 120VAC, 25kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 25kA @ 120/240VAC |
| Frame Type | EDB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip 120VAC |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, cULus, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Product FAQs
5 answersDoes the EDB34035SA require extra panel space for the shunt trip?
Yes. The SA suffix indicates a factory-installed 120V AC shunt trip. This accessory adds one additional pole space to the breaker, meaning this 3-pole breaker will require four pole spaces in your Square D NF panelboard.
Can I add or remove the shunt trip on the EDB34035SA in the field?
No. The 120V shunt trip is factory-installed and is not field-installable or removable on Square D E-frame breakers.
Can I install the EDB34035SA in an I-Line or NQ panelboard?
No. This E-frame bolt-on circuit breaker is designed exclusively for Square D NF series panelboards. It will not fit in I-Line or NQ panels.
What is the catalog number for this 35A breaker without the shunt trip accessory?
If your application does not require the factory-installed 120V shunt trip for remote tripping, the standard 3-pole, 35A E-frame breaker is catalog number EDB34035.
What is the purpose of the 120V shunt trip on this breaker?
The factory-installed shunt trip allows the breaker to be tripped remotely by applying a 120V AC control signal. This is commonly used for emergency shutdowns, fire alarm integration, or automated control systems.
