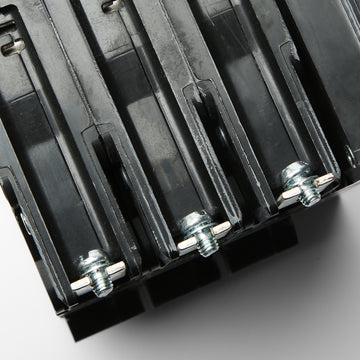

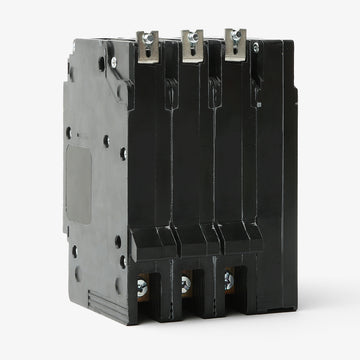

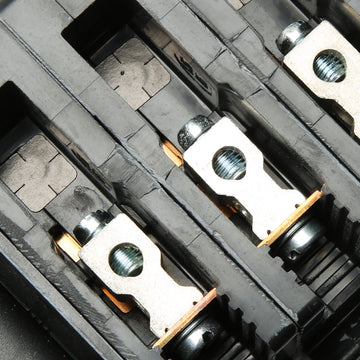

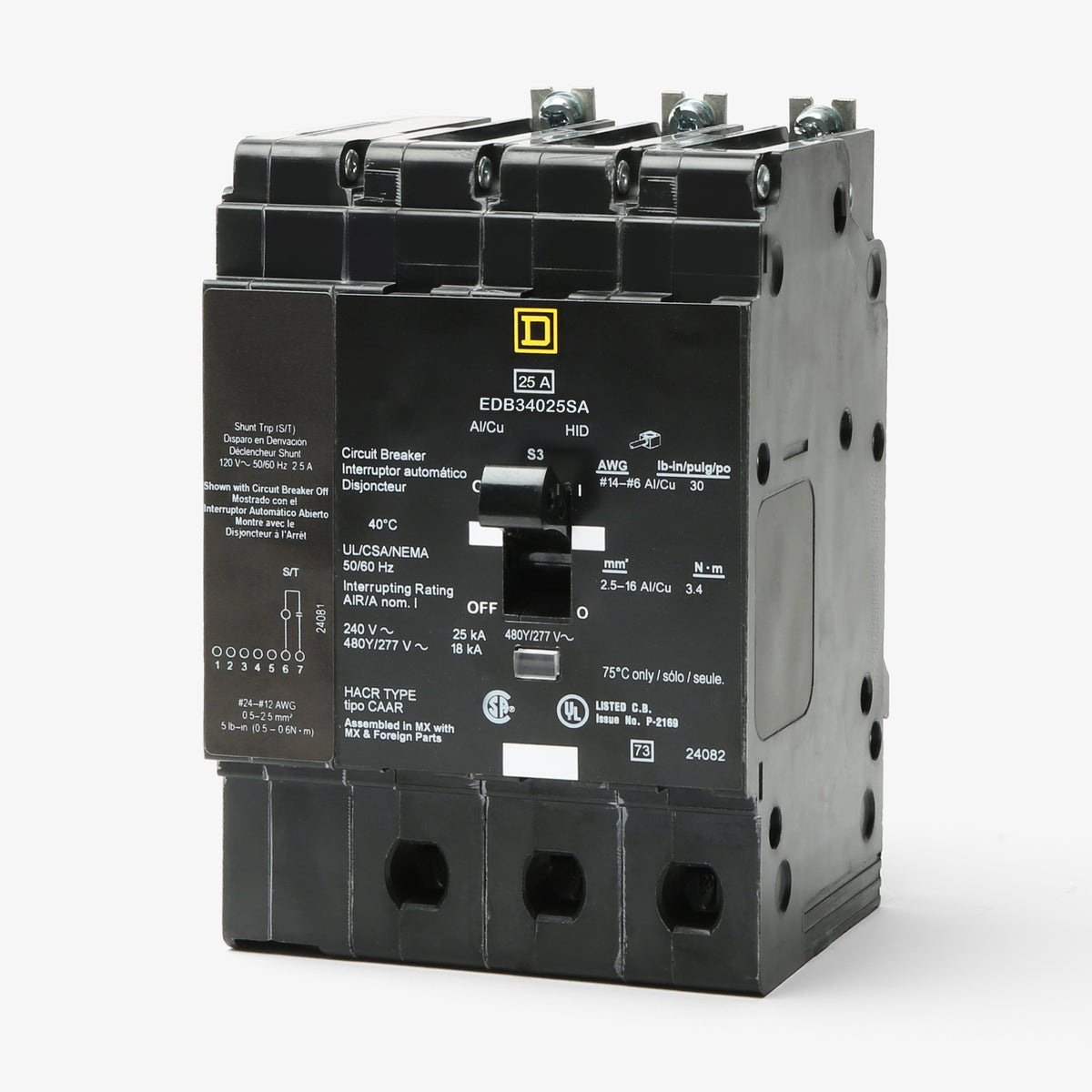

Square D EDB34025SA Miniature Circuit Breaker
- 25A
- 3 Pole
- Bolt-On
Square D
EDB34025SA
Miniature Circuit Breaker
Brand
Square D
SKU
EDB34025SA
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EDB34025SA - 25A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
20A 3 Pole Miniature Circuit Breaker
15A 3 Pole Miniature Circuit Breaker
45A 3 Pole Miniature Circuit Breaker
Description
Part of the E-Frame series, the Square D EDB34025SA is a 25A, 3-pole miniature circuit breaker built for commercial and industrial distribution. It features a factory-installed 120VAC shunt trip module for remote tripping capabilities. This unit installs into Square D NF panelboards using a secure bolt-on connection. Due to the integrated accessory, it requires four pole spaces. Rated for 18 kAIC at 480Y/277V, it includes Visi-Trip technology for quick fault identification.Specifications
| Brand | Square D |
|---|---|
| Part Number | EDB34025SA |
| Series | EDB |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480Y/277VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 120VAC, 25kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 25kA @ 120/240VAC |
| Frame Type | EDB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip 120VAC |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, cULus, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator, Non-Interchangeable Trip, Occupies 4 Pole Spaces |
Product FAQs
5 answersWhat panelboards are compatible with the EDB34025SA circuit breaker?
This E-Frame breaker is designed specifically for installation in Square D NF series panelboards.
How many pole spaces does the EDB34025SA require in a panelboard?
Although it is a 3-pole breaker, it requires four pole spaces in an NF panelboard due to the integrated factory-installed shunt trip module.
What does the SA suffix mean in the EDB34025SA catalog number?
The SA suffix indicates the breaker includes a factory-installed 120VAC shunt trip. This allows the breaker to be tripped remotely for emergency disconnects, fire alarm integration, or automation control.
Can I add or remove the shunt trip on the EDB34025SA in the field?
No. Electrical accessories for Square D E-Frame breakers, including the shunt trip, are factory-installed only and cannot be added or modified in the field.
How does the EDB34025SA indicate a tripped condition?
It features the Square D Visi-Trip visual indicator. When the breaker trips, a highly visible red flag appears in the indicator window, allowing for quick fault identification without testing each breaker.
