Siemens 3VA6110-6HL31-0AA0 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Panel Mount
Siemens
3VA6110-6HL31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA6110-6HL31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

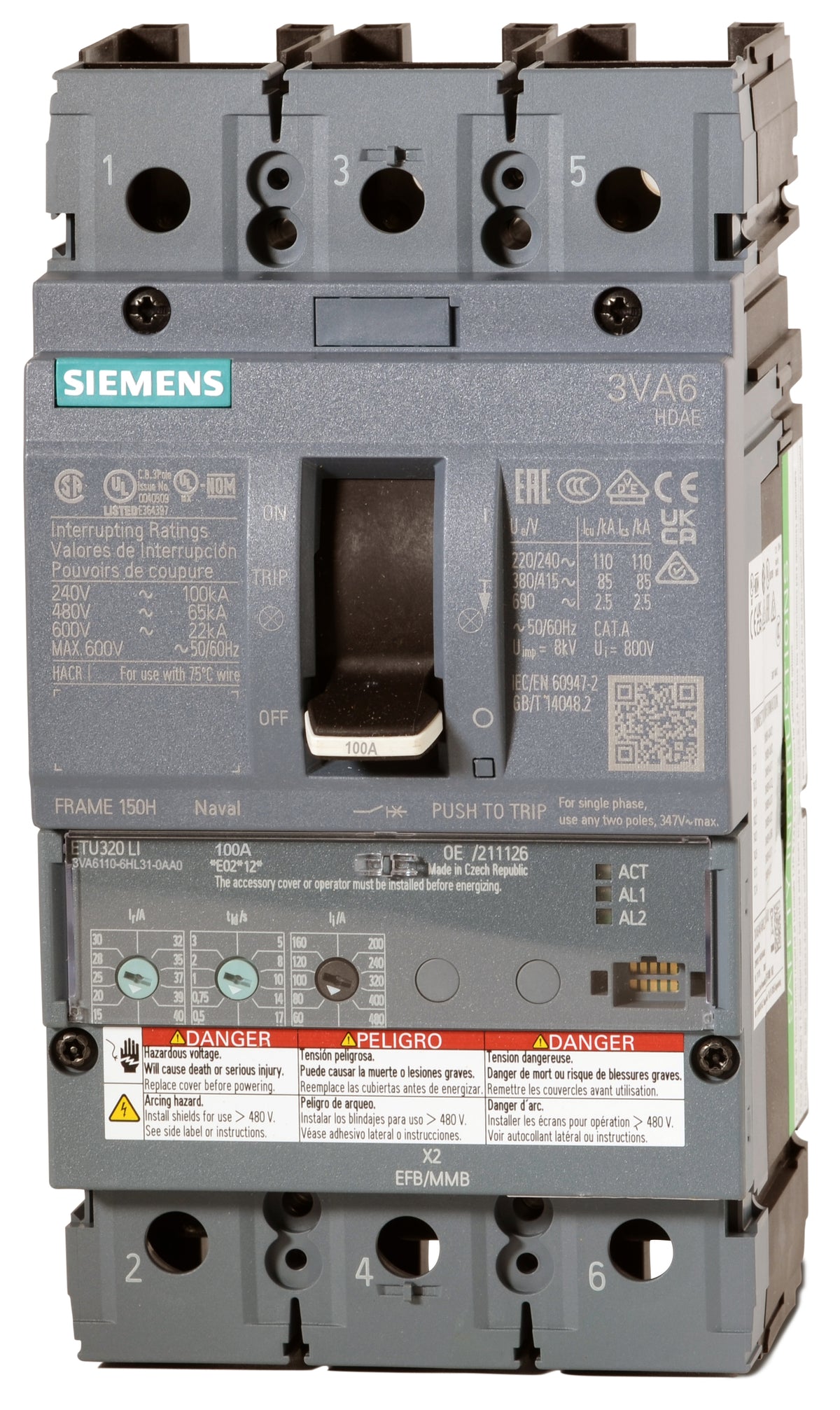

Siemens 3VA6110-6HL31-0AA0 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
A high-performance solution for demanding systems, the Siemens 3VA6110-6HL31-0AA0 is a 3-pole, 100A molded case circuit breaker. It provides reliable microprocessor-based sensing for commercial and industrial applications. This panel mount MCCB installs into Siemens panelboards, switchboards, and motor control centers. It features a compact 3VA61 frame design and is reverse feed suitable. The ETU320 electronic trip unit offers adjustable LI protection and a 65 kAIC rating at 480VAC.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA6110-6HL31-0AA0 |
| Series | 3VA6 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 22kA @ 600VAC |
| Amperage Range | 40-100A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Lugs Not Included |
| Standards | IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhat panel types are compatible with the 3VA6110-6HL31-0AA0 circuit breaker?
This breaker is designed for installation in Siemens panelboards, switchboards, and motor control centers.
Is the 3VA6110-6HL31-0AA0 suitable for reverse feed applications?
Yes, Siemens 3VA6 electronic trip circuit breakers are UL listed for reverse feed applications.
What frame size does the 3VA6110-6HL31-0AA0 use?
This breaker utilizes the Siemens 3VA61 frame, which supports a maximum continuous current rating of 150A.
What protection features are included in the ETU320 trip unit?
The ETU320 electronic trip unit provides adjustable Long-Time (L) and Instantaneous (I) overcurrent protection. The adjustment dials allow for precise coordination within your electrical system.
Can the trip unit on the 3VA6110-6HL31-0AA0 be swapped or removed?
No, Siemens 3VA6 molded case circuit breakers are shipped complete with non-interchangeable trip units.
What communication protocols are supported by the 3VA6 series?
When equipped with the appropriate communication modules, 3VA6 breakers can integrate with Profibus, Profinet, Ethernet (Modbus TCP), and Modbus RTU systems.
Where can I find the terminal torque specifications for this breaker?
Torque specifications depend on the specific wire and lug combination installed. Always refer to the manufacturer label on the side of the breaker for the exact torque values required for safe installation.
