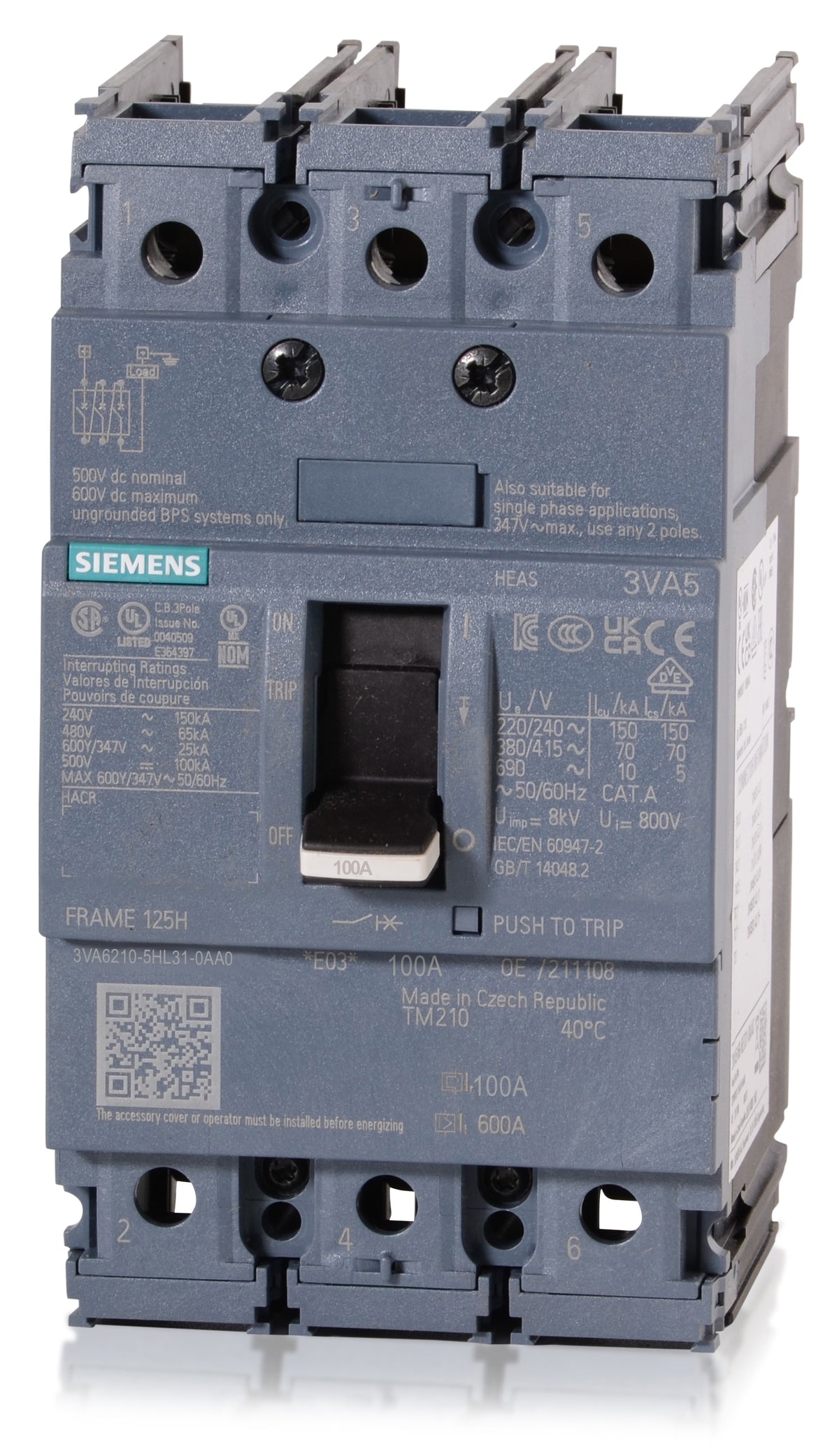

Siemens 3VA6210-5HL31-0AA0 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Panel Mount
Siemens
3VA6210-5HL31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA6210-5HL31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA6210-5HL31-0AA0 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Constructed on a robust 250A frame, this 100A molded case circuit breaker delivers reliable solid-state protection for commercial and industrial applications. It features an ETU320 electronic trip unit that provides adjustable long-time and instantaneous (LI) settings. This panel-mount breaker is engineered to fit seamlessly into Siemens P2 and P3 panelboards. Rated for Class M interrupting capacity at 35 kAIC at 480VAC, the unit ensures dependable fault clearing and utilizes true RMS sensing.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA6210-5HL31-0AA0 |
| Series | 3VA6 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC |
| Amperage Range | 40-100A |
|---|
| Frame Type | 3VA62 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2 Panelboards, P3 Panelboards, Switchboards |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, External Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Without Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, EAC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, True RMS Sensing |
Product FAQs
6 answersWhat is the adjustable trip range for the Siemens 3VA6210-5HL31-0AA0?
The ETU320 electronic trip unit features an adjustable long-time overload setting (Ir) from 40A to 100A, and an adjustable instantaneous short-circuit setting (Ii) from 150A to 1200A.
Is the 3VA6210-5HL31-0AA0 rated for 100% continuous current?
No, this standard model is rated for 80% continuous current. For applications requiring a 100% continuous current rating, you must use catalog number 3VA6210-5HL31-2AA0.
What is the physical frame size of the 100A 3VA6210-5HL31-0AA0 breaker?
While configured for a maximum continuous current of 100A, this breaker is built on the robust 250A Siemens 3VA62 frame.
Can the 3VA6210-5HL31-0AA0 be reverse fed?
Yes, all Siemens 3VA62 electronic trip circuit breakers are UL listed for reverse feed applications.
Which specific electronic trip unit is used in the 3VA6210-5HL31-0AA0?
This breaker features the Siemens ETU320 solid-state trip unit, which includes rotary dials for adjusting the long-time and instantaneous (LI) protection settings.
Is the 3VA6210-5HL31-0AA0 suitable for marine or high-temperature environments?
Yes, all 3VA6 circuit breakers are certified to UL 489 Supplement SB, carry a Naval marking, and are rated for use in ambient temperatures up to 50 degrees Celsius.
