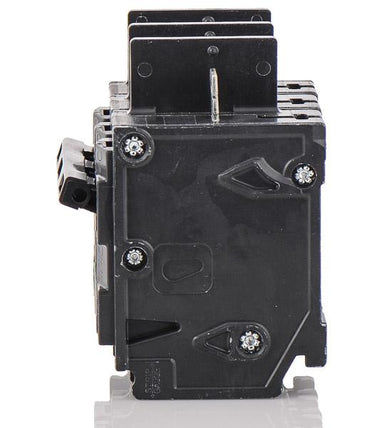

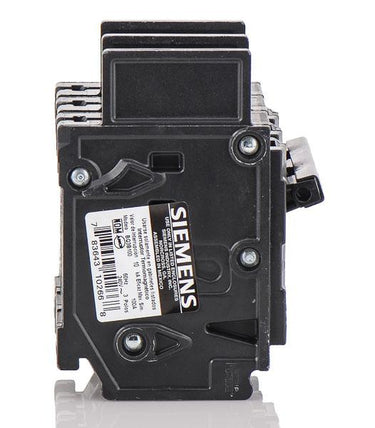

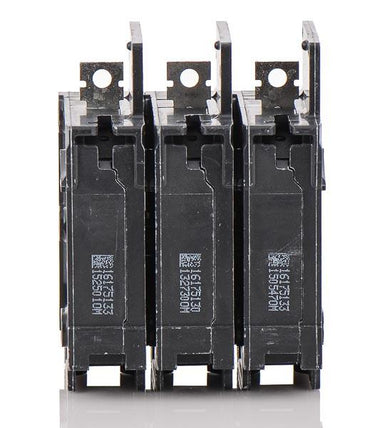

Siemens BQ3B100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
Siemens
BQ3B100
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQ3B100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQ3B100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens BQ3B100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQ3B100 |
| Series | BQ |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards, ITE Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Sold out
Quantity
Siemens BQ3B100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQ3B100-R |
| Series | BQ |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards, ITE Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Similar Items
100A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
Description
Part of the BQ series, this 100A three-pole molded case circuit breaker delivers standard commercial overcurrent protection. It features a thermal-magnetic trip unit configured for 240VAC systems. Designed for seamless integration, the unit installs into Siemens P1 panelboards and legacy ITE enclosures. The bolt-on mounting style ensures a secure mechanical connection for demanding environments. Rated at 10kA interrupting capacity, this HACR-certified component accepts 8-1 AWG copper wire.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQ3B100 |
| Series | BQ |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards, ITE Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Product FAQs
6 answersCan I use this Siemens BQ3B100 to replace an older ITE BQ3B100 breaker?
Yes. Since Siemens acquired ITE, current BQ series breakers are manufactured to the same physical dimensions and specifications. The Siemens BQ3B100 serves as a direct, backward-compatible replacement for legacy ITE units.
Which commercial panelboards accept the BQ3B100 circuit breaker?
This unit features a non-interchangeable bolt-on design intended specifically for secure mounting to the busbars in Siemens P1 panelboards, as well as older ITE distribution enclosures.
What does the LI trip function indicate on this molded case breaker?
The LI code means this thermal-magnetic trip unit provides Long-Time (L) overload protection and Instantaneous (I) short-circuit protection. These fixed settings provide reliable standard commercial overcurrent protection.
Are there equivalent 100A 3-pole BQ breakers with higher interrupting ratings?
Yes. If your electrical system requires a higher fault current rating than the standard 10kA provided by the BQ3B100, Siemens offers the BQH3B100 rated at 22kA, and the HBQ3B100 rated at 65kA at 240VAC.
Is the Siemens BQ3B100 suitable for HVAC equipment protection?
Yes, this breaker is HACR rated. This certification verifies that it has been tested to safely handle the specific inrush currents and operational demands of commercial heating, air conditioning, and refrigeration motor loads.
How are branch circuit conductors connected to the BQ3B100?
The breaker comes equipped with factory-installed load lugs on the output side. These mechanical lugs are dual-rated for bare copper and aluminum wire, while the line side bolts directly to the panelboard bus for a secure mechanical connection.
