Siemens BQ3B10000S01 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
Siemens
BQ3B10000S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQ3B10000S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

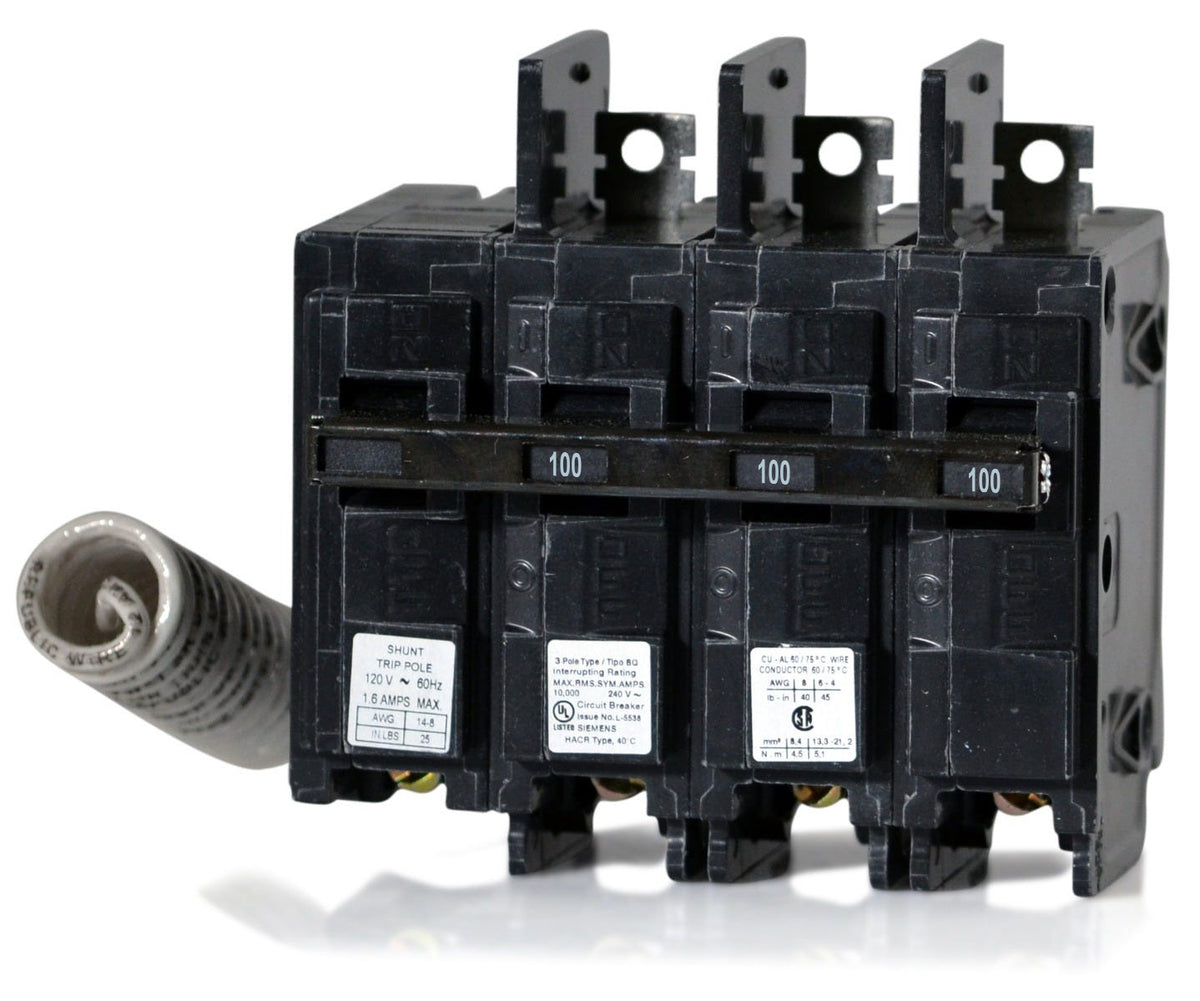

Siemens BQ3B10000S01 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
80A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Designed for three-phase industrial applications, this 100A MCCB provides reliable protection. It features an integrated 120VAC shunt trip, allowing users to remotely open the breaker. The three-pole device mounts into Siemens P1, P2, P3, and legacy ITE panelboards. It offers a secure bolt-on connection and serves as a substitute for BAB3100 and THQB32100. Rated for 10kAIC at 240VAC, the unit utilizes thermal-magnetic technology to clear faults and features a common trip mechanism.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQ3B10000S01 |
| Series | BQ |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, ITE Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs, Shunt Trip 120VAC |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhat does the S01 suffix mean on the BQ3B10000S01 catalog number?
The S01 suffix indicates this breaker is factory-equipped with a 120V AC shunt trip accessory, which allows the breaker to be tripped remotely via an external control signal.
Is this breaker compatible with legacy ITE panelboards?
Yes, Siemens BQ series breakers are fully backward compatible with legacy ITE panelboards, as well as modern Siemens P1, P2, and P3 panelboards.
Does the BQ3B10000S01 use a plug-in or bolt-on connection?
This is a bolt-on circuit breaker. It requires a bolted connection to the panelboard bus, providing a secure mechanical and electrical connection for commercial and industrial applications.
Can aluminum wire be used with the BQ3B10000S01 lugs?
Yes, the standard lugs on this breaker are dual-rated for both copper (8 to 1 AWG) and aluminum (6 to 1/0 AWG) conductors.
Are the thermal-magnetic trip settings adjustable on this model?
No, the BQ3B10000S01 features a fixed thermal-magnetic trip unit. The Long-Time and Instantaneous (LI) trip functions are factory preset and cannot be adjusted in the field.
Does the integrated shunt trip require a separate control circuit?
Yes, the factory-installed shunt trip requires a dedicated 120V AC control voltage signal to remotely open the breaker contacts.
