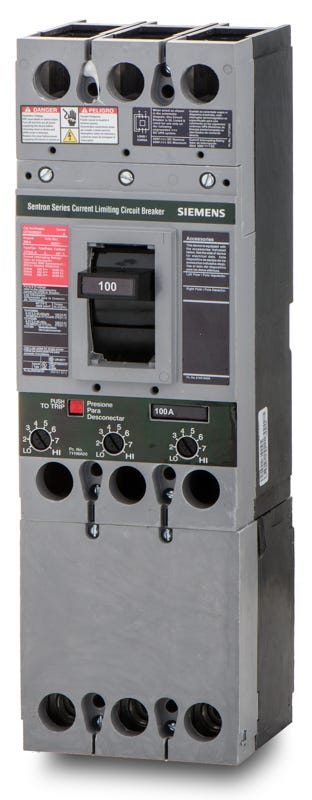

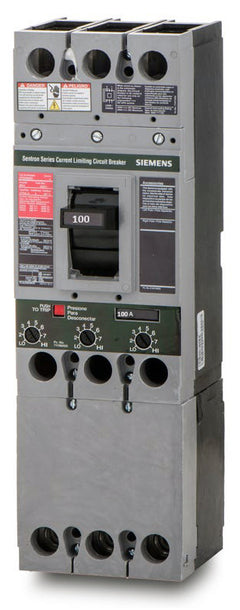

Siemens CFD63B100L Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
Siemens
CFD63B100L
Molded Case Circuit Breaker
Brand
Siemens
SKU
CFD63B100L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens CFD63B100L - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
110A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
Description
Delivering high-capacity fault interruption, the Siemens CFD63B100L is a 100-amp, 3-pole molded case circuit breaker. It utilizes standard long-time and instantaneous (LI) protection mechanisms to secure commercial electrical infrastructure. This specific model comes with factory-installed line and load lugs, streamlining the installation process into Sentron panelboards and switchboards. It accepts a wide range of wire gauges, from 6 AWG to 350 kcmil copper.Specifications
| Brand | Siemens |
|---|---|
| Part Number | CFD63B100L |
| Series | CFD6 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 100kA @ 600VAC, 50kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Sentron Panelboards (P1, P2, P3), Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 6 AWG - 350 kcmil (Cu), 4 AWG - 350 kcmil (Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Line and Load Lugs (Factory Installed) |
| Standards | HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Non-Interchangeable Trip, Fuseless |
Product FAQs
7 answersWhich panelboards and enclosures are compatible with the CFD63B100L?
This unit mounts directly into Siemens Sentron P1, P2, and P3 panelboards, as well as compatible switchboards, motor control centers, and standalone enclosures designed for FD frame breakers.
What wire sizes are accepted by the line and load lugs on the CFD63B100L?
The included line and load lugs accept 6 AWG to 350 kcmil copper (Cu) wire, or 4 AWG to 350 kcmil aluminum (Al) wire.
How is the trip unit configured on the CFD63B100L?
This breaker features a thermal-magnetic trip unit with LI (Long-Time and Instantaneous) functions. The thermal element for long-time protection is fixed, while the magnetic instantaneous trip is adjustable to coordinate with downstream loads.
Is the CFD63B100L suitable for high fault current applications?
Yes, this breaker is designed for high-capacity systems, offering a maximum interrupting rating of 200kA at 480V AC and 100kA at 600V AC. The CFD6 series features a fuseless, current-limiting design to safely clear severe faults.
How is the CFD63B100L installed into a system?
This is a unit mount circuit breaker, meaning it bolts directly to the mounting surface or enclosure backpan rather than plugging into a busbar.
What safety standards does the CFD63B100L meet?
This breaker meets UL 489 and IEC 60947-2 standards for molded case circuit breakers, ensuring reliable protection for commercial and industrial electrical systems.
What does the CFD6 prefix indicate compared to standard FD frame breakers?
The CFD6 prefix designates this as the current-limiting version of the Siemens FD frame. It provides a much higher interrupting capacity (up to 200kA at 480V) than standard FD6 or HFD6 breakers while maintaining the same physical footprint.
