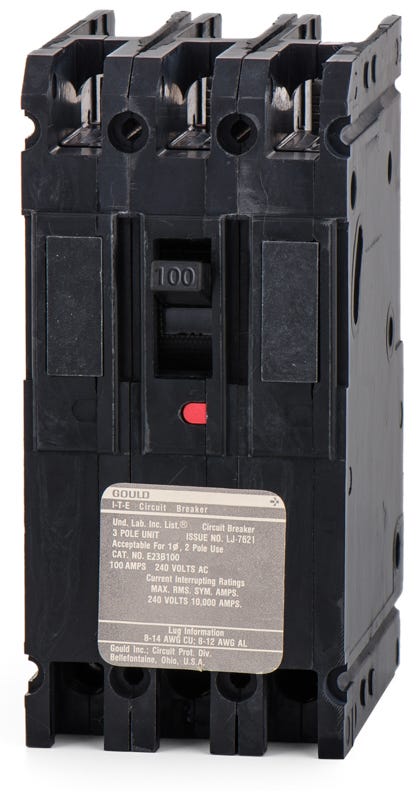

Siemens E23B100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
Siemens
E23B100
Molded Case Circuit Breaker
Brand
Siemens
SKU
E23B100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens E23B100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Part of the legacy E-Frame family, this 100-amp, three-pole breaker delivers robust thermal-magnetic protection for commercial facilities. The bolt-on design installs into Siemens P2 and P3 panelboards, alongside older ITE enclosures. It serves as an exact match for existing setups, though it is replaced by the ED23B100 in modern catalogs. Featuring a 10kA interrupting capacity at 240VAC, this HACR-rated unit includes load side lugs and supports reverse feed applications.Specifications
| Brand | Siemens |
|---|---|
| Part Number | E23B100-R |
| Series | E2 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | E2 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2, P3 Panelboards, Legacy ITE Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Common Trip, Trip-Free Mechanism |
Product FAQs
6 answersWhat panelboards are compatible with the Siemens E23B100?
This breaker is designed to bolt directly into Siemens P2 and P3 panelboards, as well as legacy ITE enclosures.
Can the Siemens E23B100 replace an older ITE E23B100?
Yes. Siemens acquired ITE, making this the exact drop-in replacement for the legacy ITE E23B100 circuit breaker.
What wire sizes and materials are supported by the E23B100 lugs?
The terminal lugs accommodate 10 AWG to 1/0 AWG wire and are rated for both copper (Cu) and aluminum (Al) conductors.
Are the trip settings adjustable on the E23B100?
No. This breaker features a fixed thermal magnetic trip unit with non-adjustable long-time and instantaneous (LI) trip functions.
What frame size is the E23B100?
It is part of the legacy Siemens and ITE E-Frame family, specifically the E2 frame type.
What safety procedures apply when installing this bolt-on breaker?
Always de-energize the panelboard and verify the power is completely off using a properly rated voltage tester before bolting the breaker to the busbar.
