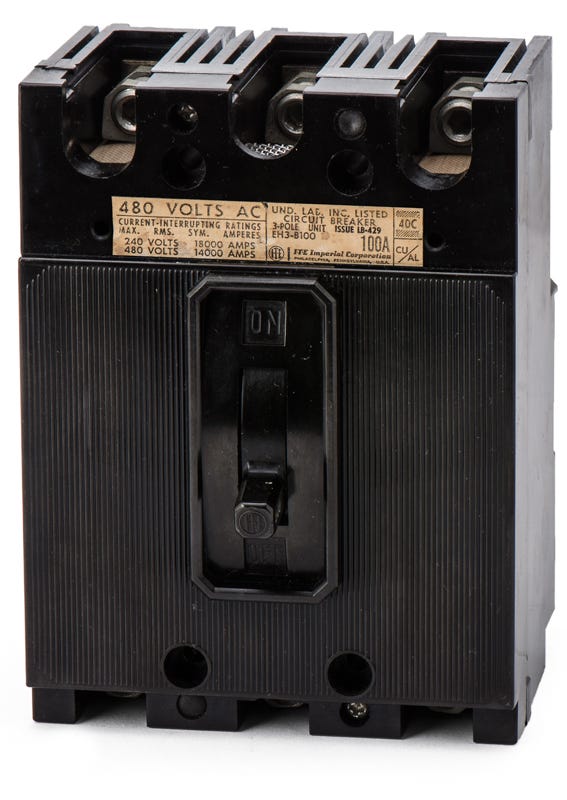

Siemens EH3B100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
Siemens
EH3B100
Molded Case Circuit Breaker
Brand
Siemens
SKU
EH3B100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

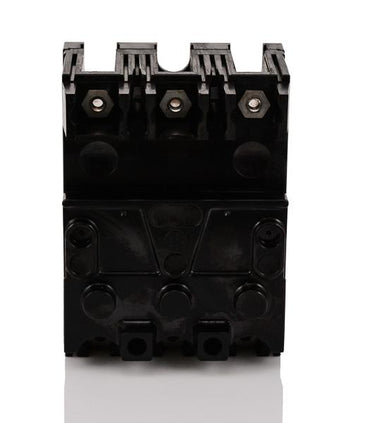

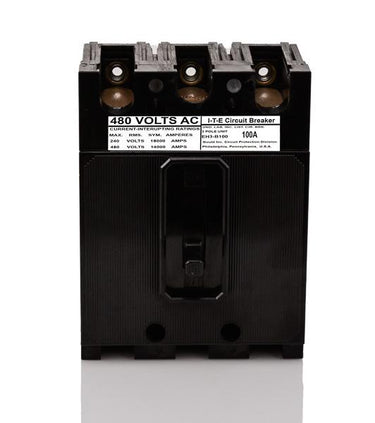

Siemens EH3B100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
60A 3 Pole Molded Case Circuit Breaker

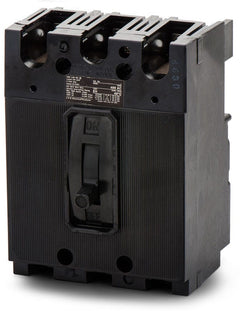

30A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Operating as a crucial safety component, the Siemens EH3B100 offers dependable thermal-magnetic trip capabilities. This 3-pole, 100-amp MCCB is engineered to protect commercial wiring from overloads and short circuits. Designed for secure bolt-on installation, it integrates smoothly into Siemens P-series and older ITE distribution boards. With an interrupting capacity of 14kAIC at 480VAC, it meets UL 489 standards and accepts copper or aluminum conductors via standard load lugs.Specifications
| Brand | Siemens |
|---|---|
| Part Number | EH3B100-R |
| Series | EH |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, ITE Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
8 answersWhich panelboards are compatible with the EH3B100 circuit breaker?
It mounts into Siemens P1, P2, and P3 panelboards, and is also fully backwards compatible with legacy ITE and Gould E-frame distribution boards.
Is this breaker a direct replacement for older ITE brand EH3B100 units?
Yes. Siemens acquired the ITE electrical line, so this breaker is the exact replacement for legacy ITE or Gould models sharing the EH3B100 catalog number.
What does the LI trip function on this breaker signify?
The LI code means the trip unit provides fixed Long-Time thermal protection against steady overloads, and fixed Instantaneous magnetic protection against sudden short circuits.
Can the trip settings on the EH3B100 be adjusted in the field?
No. This model features a non-interchangeable, fixed thermal-magnetic trip unit. Neither the thermal nor the magnetic thresholds can be modified by the user.
What type of wire is permitted for the load lugs?
The factory lugs are dual-rated for both copper and aluminum conductors ranging from 14 AWG up to 1/0 AWG.
Does this breaker support direct current (DC) systems?
Yes. While typically used for AC power, it carries an interrupting rating of 10kA at 250VDC, allowing it to protect certain industrial DC circuits.
How is the EH3B100 secured inside the panel?
It features a bolt-on connection, meaning the breaker terminals must be mechanically bolted directly to the panelboard busbars. It does not snap or plug into place.
Are there specific safety precautions for installing this bolt-on breaker?
Bolt-on breakers must only be installed when the panel is completely de-energized. Bolting hardware directly to the busbars on a live panel creates a severe shock and arc flash hazard.
