Siemens ED63M100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
Siemens
ED63M100
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED63M100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

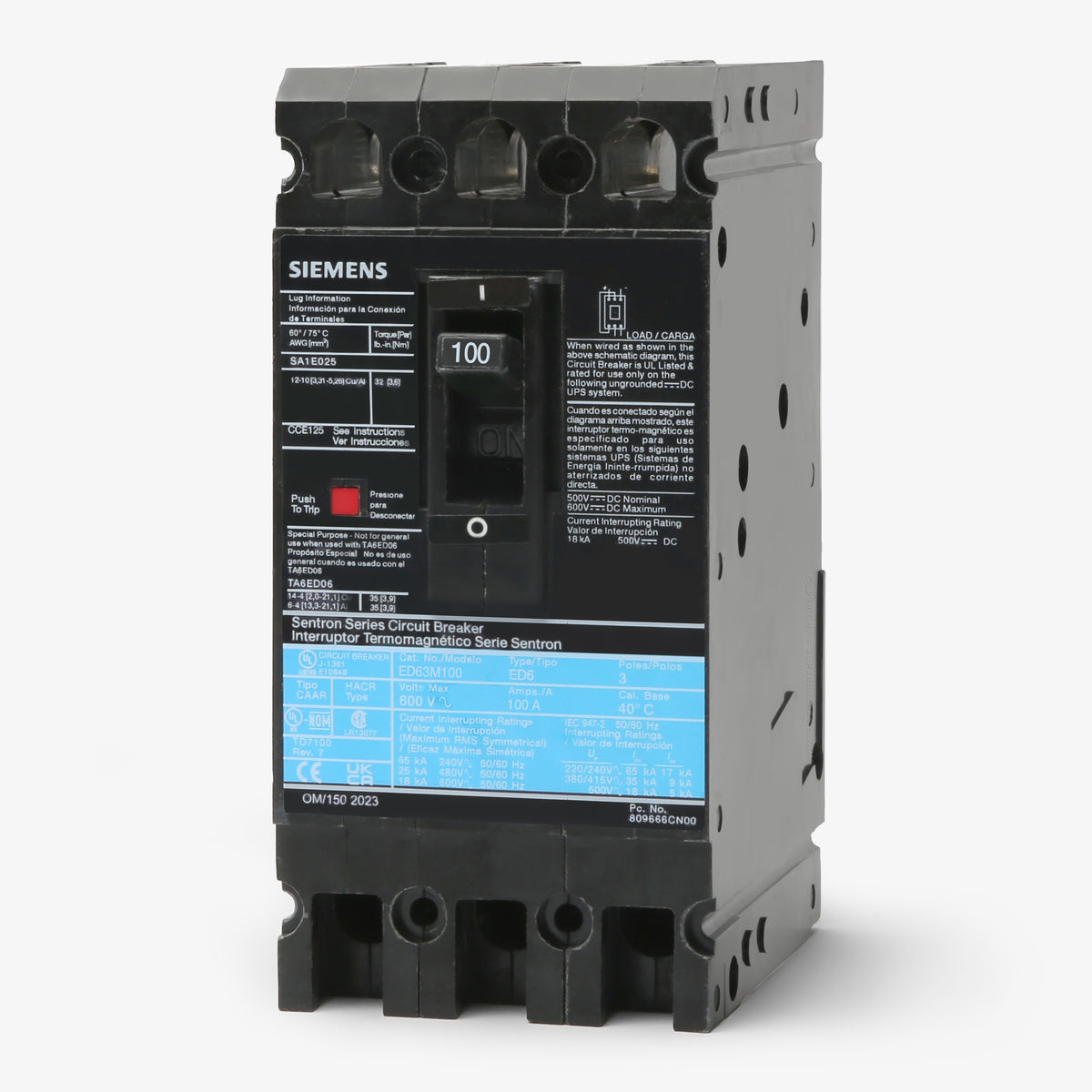

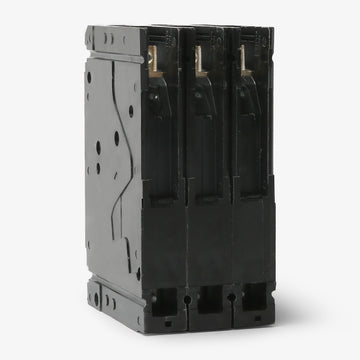

Siemens ED63M100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
110A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
Description
Rated for 100A, this 3-pole molded case circuit breaker is part of the Siemens Sentron ED Frame series. It is engineered for industrial applications, delivering robust long-time and instantaneous overcurrent protection. The breaker mounts into Siemens panelboards and switchboards using a standard bolt-on connection. It is designed for demanding environments requiring a 50°C ambient calibration. Interrupting 25 kAIC at 480VAC, this unit features reverse feed capabilities and is HACR rated.Specifications
| Brand | Siemens |
|---|---|
| Series | ED6 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lug (LN1E100) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 50C |
| Construction Features | 50C Ambient Calibration, HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat does the M in the ED63M100 catalog number indicate?
The M designates that this breaker is calibrated for a 50 degree Celsius ambient temperature environment. The standard 40 degree Celsius version of this breaker is catalog number ED63B100.
Which Siemens panelboards are compatible with the ED63M100 circuit breaker?
This ED frame breaker is designed for use in Siemens Sentron series panelboards, including P1, P2, P3, P4, and P5 models, as well as Siemens switchboards that accept bolt-on ED frame breakers.

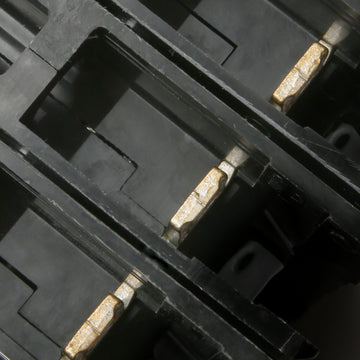

How is the ED63M100 wired and mounted?

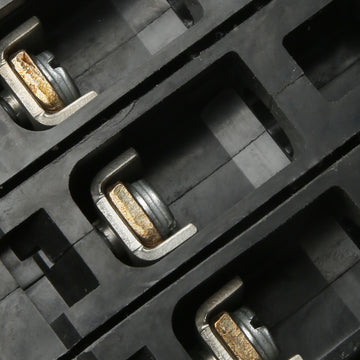

The line side utilizes a bolt-on connection for secure panelboard bus mounting. The load side comes standard with lugs that accept 10 AWG to 1/0 AWG copper or aluminum wire.
Can the ED63M100 be reverse fed?
Yes, standard Siemens ED frame thermal magnetic breakers like the ED63M100 are suitable for reverse feed applications because they do not have specific line and load markings restricting power flow direction.
Does the Siemens ED63M100 replace older I-T-E breakers?
Yes, Siemens acquired I-T-E and maintained the same ED frame footprint. The Siemens ED63M100 is a direct replacement for the older I-T-E ED63M100.
Is the ED63M100 suitable for HVAC applications?
Yes, this breaker is HACR rated, meaning it is tested and approved for use with heating, air conditioning, and refrigeration equipment.
