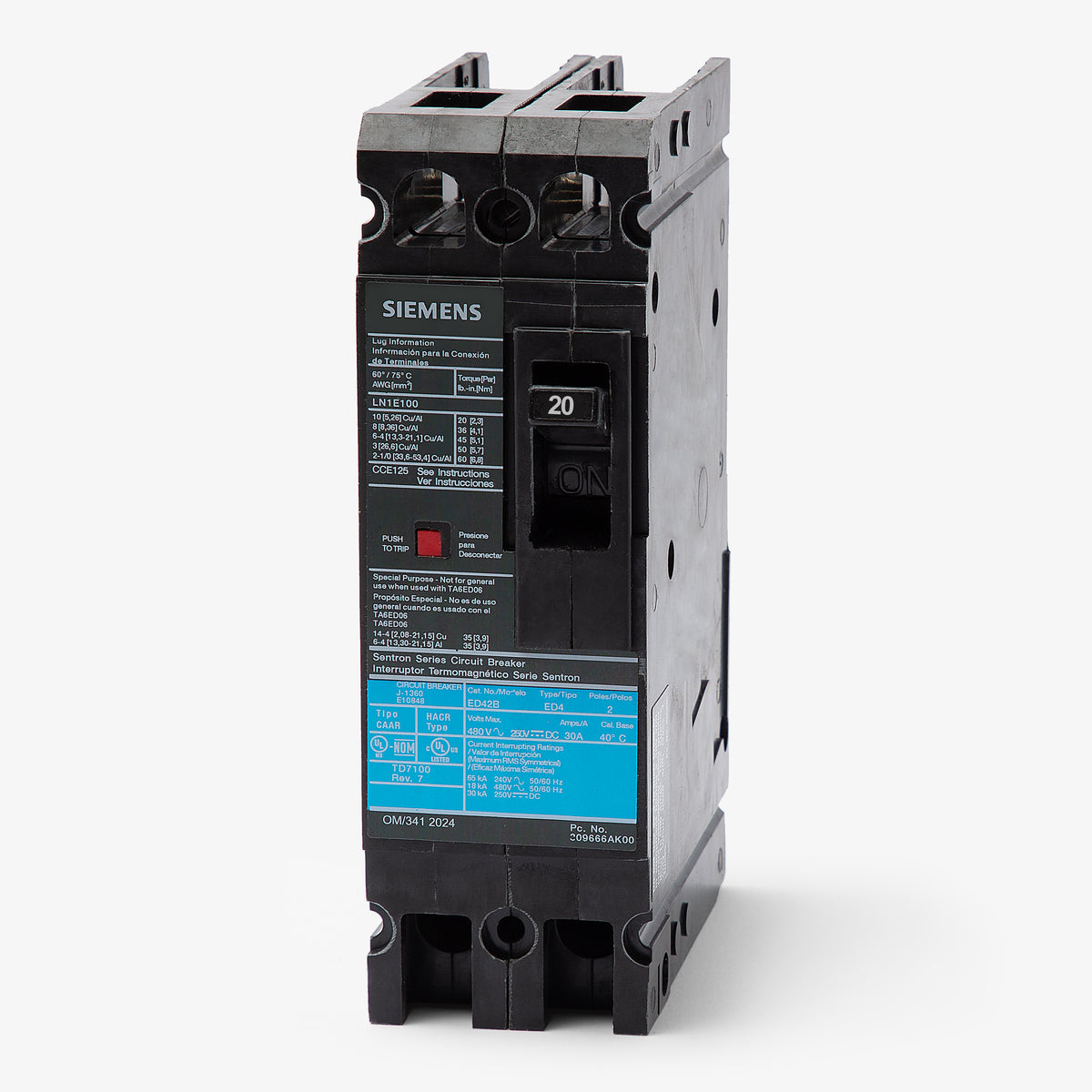

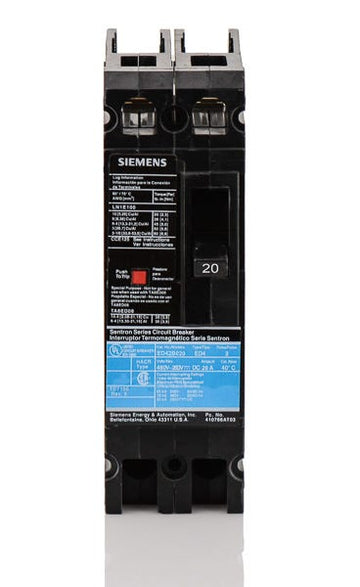

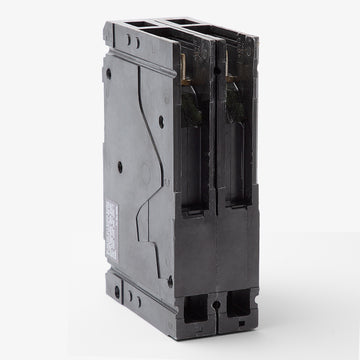

Siemens ED42B020 Molded Case Circuit Breaker
- 20A
- 2 Pole
- Bolt-On
Siemens
ED42B020
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED42B020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED42B020 - 20A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED42B020 - 20A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Series | ED4 |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included (SA1E025) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens ED42B020 - 20A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | ED4 |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included (SA1E025) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
15A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
35A 2 Pole Molded Case Circuit Breaker
Description
Designed to support heavy-duty commercial loads, this 20-amp Sentron series component delivers consistent long-time and instantaneous trip functions. The bolt-on mounting style ensures a solid mechanical connection within Siemens P1, P2, and P3 panelboards. Featuring a non-interchangeable trip unit and HACR certification, it meets rigorous safety standards for HVAC equipment. It achieves a robust 65kA interrupting capacity at 240VAC, making it suitable for demanding industrial environments.Specifications
| Brand | Siemens |
|---|---|
| Series | ED4 |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included (SA1E025) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhich Siemens panelboards accept the ED42B020 circuit breaker?
This ED4 frame breaker is designed for installation in Siemens P1, P2, and P3 series panelboards. It requires the appropriate panelboard mounting hardware for a secure bolt-on connection to the bus.
What wire sizes are compatible with the standard lugs on the ED42B020?

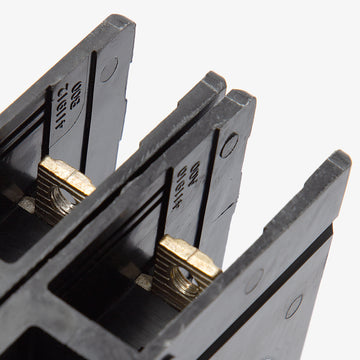

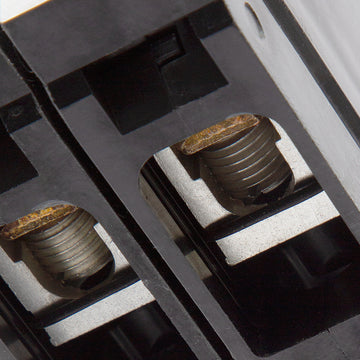

The factory-installed SA1E025 load lugs accept 14 to 10 AWG copper wire or 12 to 10 AWG aluminum wire.
Is the Siemens ED42B020 a direct replacement for older I-T-E breakers?
Yes, Siemens acquired I-T-E and maintained the Sentron product line. This breaker directly replaces legacy I-T-E ED4 frame breakers with the ED42B020 catalog number.
Can the ED42B020 be used in direct current (DC) systems?
Yes. In addition to its AC ratings, this breaker is UL listed for 250VDC applications with a 30kA interrupting capacity, making it suitable for DC control panels and distribution circuits.
Is the ED42B020 suitable for HVAC applications?
Yes, this 20-amp breaker is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration equipment.
Do I need a separate mounting kit to install the ED42B020?
If your Siemens P1, P2, or P3 panelboard does not already have an open provision for an ED frame breaker, you will need to purchase the appropriate twin-mount or single-mount hardware kit separately.
Can I adjust the trip settings on the ED42B020?
No, this breaker is equipped with a fixed thermal magnetic trip unit. Both the long-time and instantaneous trip functions are factory set and non-adjustable.
