Siemens ED42B020L Molded Case Circuit Breaker
- 20A
- 2 Pole
- Unit Mount
Siemens
ED42B020L
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED42B020L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

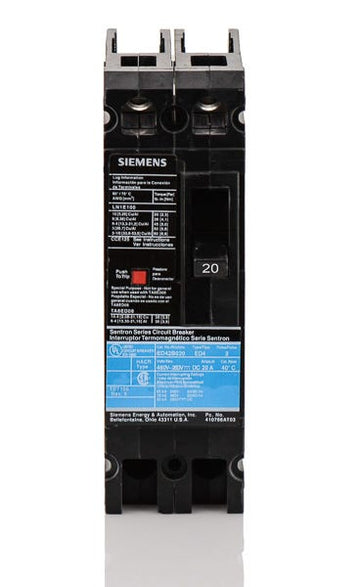

Siemens ED42B020L - 20A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 2 Pole Molded Case Circuit Breaker
45A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
Description
Belonging to the Sentron ED-frame family, the Siemens ED42B020L is a 2-pole, 20A molded case circuit breaker. Built for commercial and industrial distribution, it provides reliable thermal-magnetic protection for systems up to 480VAC. This unit-mount breaker is designed for standalone installations, featuring both line and load lugs. It mounts easily into compatible Siemens enclosures. Delivering an 18kAIC rating at 480VAC, it is HACR rated and reverse-feed capable for versatile installations.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED42B020L |
| Series | ED4 |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Enclosures, Unit Mount |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhat does the "L" at the end of the ED42B020L catalog number indicate?
The "L" suffix indicates that the breaker comes factory-assembled with both line and load side lugs included. The specific lug part number provided with this unit is SA1E025.
Is the Siemens ED42B020L suitable for reverse feed applications?
Yes, this thermal-magnetic ED frame circuit breaker is suitable for reverse feed applications. It can be back-fed in compatible control panels or enclosures.
Can this 2-pole breaker be used in DC systems?
Yes, the ED42B020L is rated for use in direct current applications up to 250VDC, providing a 30kA interrupting capacity. When applying it on a 250VDC system, Siemens recommends wiring one pole on each leg of the supply circuit.
Is this breaker HACR rated for HVAC equipment?
Yes, the ED42B020L carries an HACR rating, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires this specific overcurrent protection.
How is the ED42B020L mounted?
This is a unit-mount, feed-thru circuit breaker designed for standalone installation in compatible Siemens enclosures or control panels. It does not plug or bolt directly into standard panelboard busbars.
What are the physical dimensions of this ED frame breaker?
The ED42B020L measures approximately 2 inches wide, 6.35 inches high, and 3.92 inches deep.
What industry standards does the ED42B020L comply with?
This breaker meets UL 489 and IEC 60947-2 standards for molded case circuit breakers, and is also CSA certified for use in commercial and industrial power distribution.
