Siemens ED42B040L Molded Case Circuit Breaker
- 40A
- 2 Pole
- Unit Mount
Siemens
ED42B040L
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED42B040L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

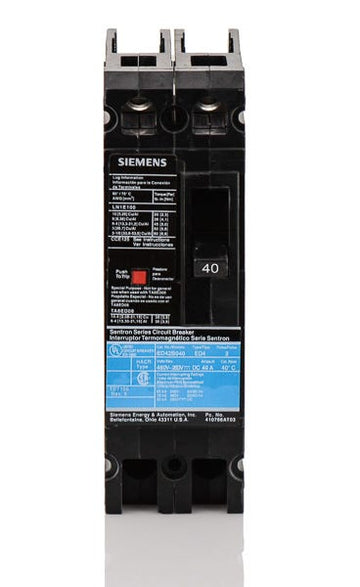

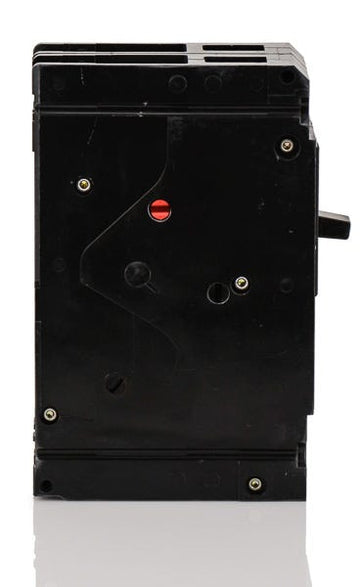

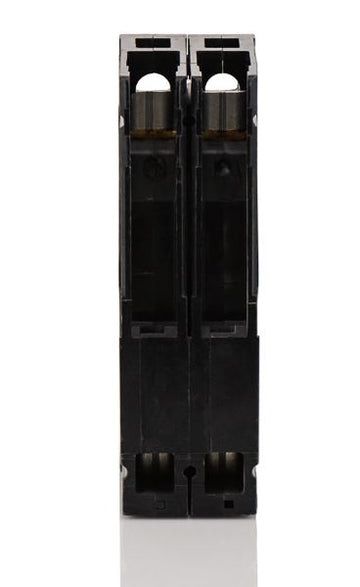

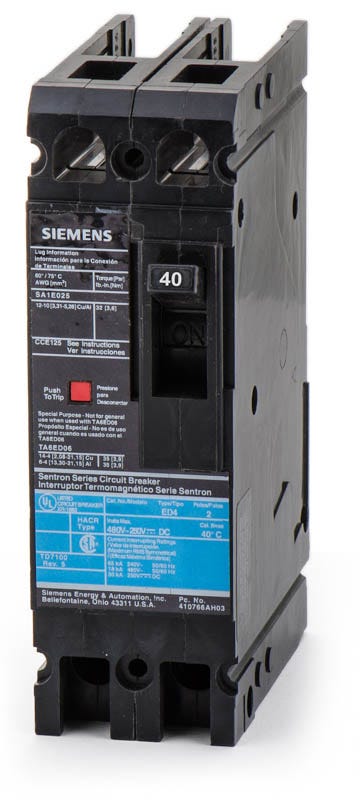

Siemens ED42B040L - 40A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
35A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
Description
Belonging to the Siemens Sentron family, this 40A molded case circuit breaker is designed for commercial and industrial power distribution. The unit mount configuration allows for flexible integration into individual enclosures and switchboards. Featuring a fixed thermal-magnetic trip unit, it delivers long-time and instantaneous protection with a 65kAIC rating at 240VAC. Factory-installed line and load lugs ensure secure wire terminations for 10-1/0 AWG conductors.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED42B040L |
| Series | ED4 |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Individual Enclosures, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Line & Load Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed |
Product FAQs
5 answersIs the Siemens ED42B040L HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
Can the ED42B040L be reverse fed?
Yes, this thermal magnetic breaker is suitable for reverse feed applications.
What panelboards are compatible with the ED42B040L?
This ED frame breaker is designed for use in Siemens S1, S2, and S3 panelboards, as well as Sentron switchboards and compatible individual enclosures.
What is the difference between the Siemens ED42B040L and the ED62B040L?
The primary difference is the interrupting capacity. The ED42B040L is rated for 18kAIC at 480VAC, whereas the ED6 version is rated for 25kAIC at 480VAC.
Which replacement lug kit is used for the ED42B040L?
If replacement terminals are needed, the correct lug kit for 30A to 100A Siemens ED frame breakers is catalog number LN1E100.
