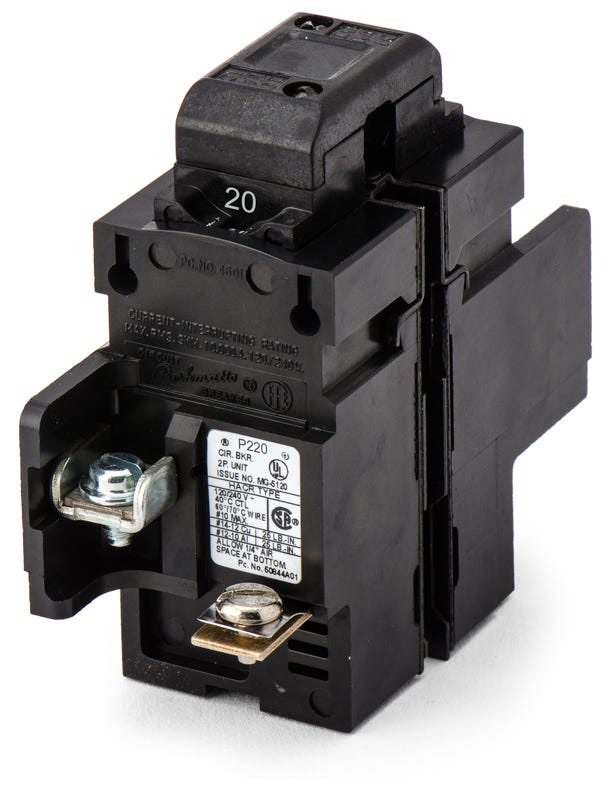

Siemens P220 Molded Case Circuit Breaker
- 20A
- 2 Pole
- Bolt-On
Siemens
P220
Molded Case Circuit Breaker
Brand
Siemens
SKU
P220
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens P220 - 20A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens P220 - 20A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | P220 |
| Series | P |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | P |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | ITE / Siemens Pushmatic Load Centers |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip |
Quantity
Siemens P220 - 20A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | P220-R |
| Series | P |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | P |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | ITE / Siemens Pushmatic Load Centers |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip |
Similar Items
30A 2 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
Description
Built for residential and commercial applications, the Siemens P220 provides 20A of thermal-magnetic protection. This 2-pole breaker is engineered for ITE and Siemens Pushmatic load centers. Featuring a secure bolt-on design, it ensures a stable panel connection. It serves as an exact replacement for older Gould P220 and UBIP220 models. Rated at 10kAIC at 120/240VAC, the unit features distinctive push-button operation for simple manual control and a common trip mechanism for safety.Specifications
| Brand | Siemens |
|---|---|
| Part Number | P220 |
| Series | P |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | P |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | ITE / Siemens Pushmatic Load Centers |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip |
Product FAQs
6 answersWhat electrical panels are compatible with the P220 circuit breaker?
The P220 is specifically designed for use in older Pushmatic load centers manufactured by Bulldog, ITE, Gould, and Siemens. It features a unique bolt-on design and will not fit in standard snap-on or plug-on panels.
Can I use the Siemens P220 to replace an older ITE or Bulldog P220?
Yes. The Pushmatic product line was originally developed by Bulldog Electric, which was later acquired by ITE, Gould, and eventually Siemens. The P220 maintains the exact same form factor and directly replaces older Bulldog, Gould, and ITE P220 breakers.
What is the Connecticut Electric cross-reference for the P220?
The Connecticut Electric UBIP220 is the direct aftermarket replacement for the original Siemens, ITE, Gould, or Bulldog P220 2-pole Pushmatic breaker.
How is the P220 secured to the panel?
The P220 features a bolt-on connection. It hooks into the panel chassis and uses a captive set screw to bolt directly to the live bus bar, ensuring a secure and high-retention electrical connection.
What wire gauge is accepted by the P220 terminals?
The screw and clamp terminals on the P220 are rated for 14 AWG to 10 AWG copper or aluminum wire. Ensure the terminal set screws are properly torqued to prevent high resistance connections.
How do you reset a tripped Pushmatic P220 breaker?
Pushmatic breakers utilize a push-button design instead of a standard toggle switch. When tripped, the button moves to an intermediate position. To reset the breaker, push the button firmly to the OFF position, then press it again to engage the ON position.
