Siemens 3VA5220-5ED31-0AA0 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Panel Mount
Siemens
3VA5220-5ED31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5220-5ED31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA5220-5ED31-0AA0 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
200A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description

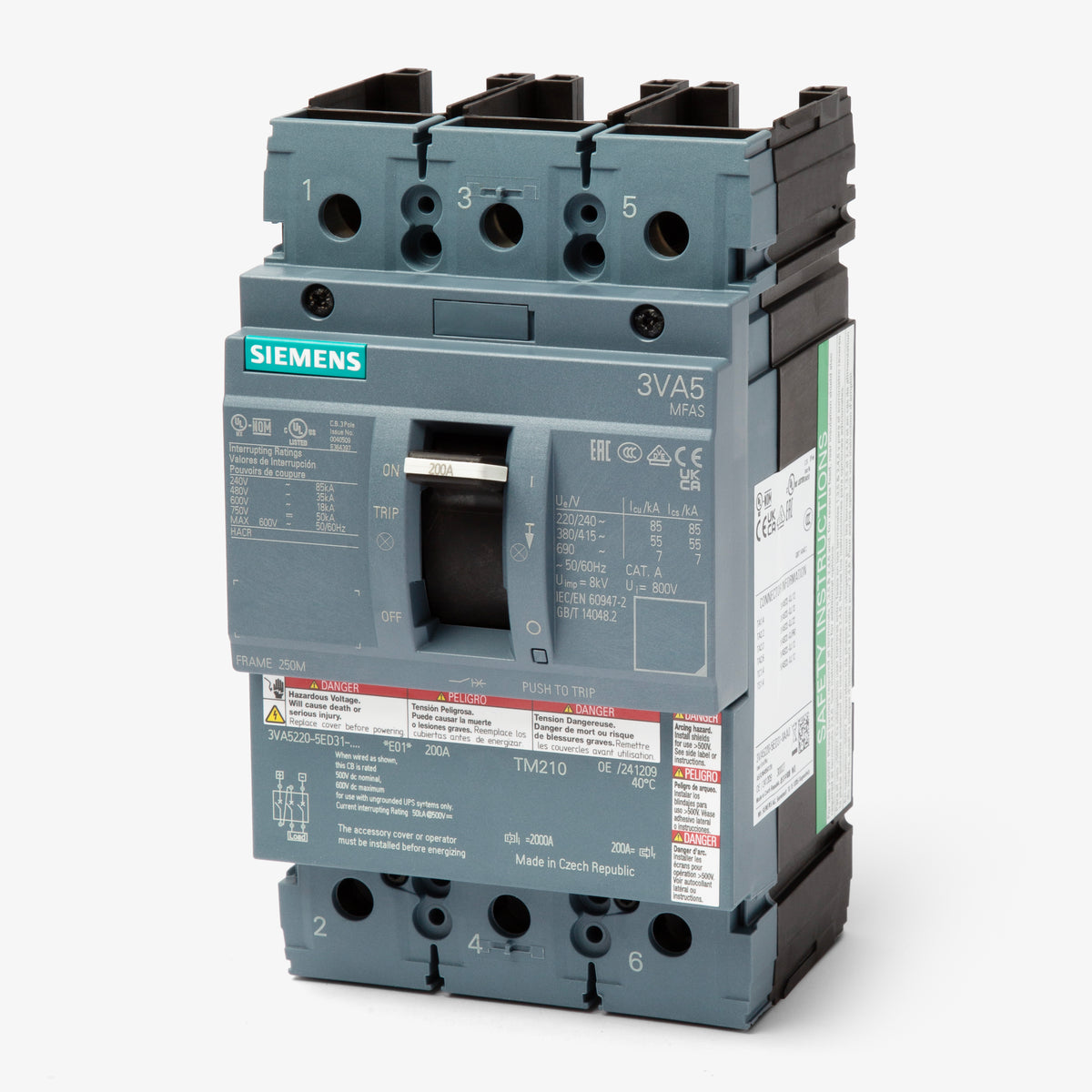

An exact replacement for legacy FD63B200 models, the Siemens 3VA5220-5ED31-0AA0 is a 3-pole, 200A molded case circuit breaker. It delivers reliable long-time and instantaneous (LI) protection for commercial, industrial, and marine environments. Designed for modern infrastructure, this breaker installs into Siemens 3VA panelboards, switchboards, and motor control centers. It is equipped with a TM210 trip unit featuring fixed thermal and magnetic settings, offering a 35kAIC rating at 480VAC.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA5220-5ED31-0AA0 |
| Series | 3VA5 |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC, 750VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 50kA @ 250VDC, 50kA @ 500VDC, 50kA @ 750VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens 3VA Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Handle Lock, Padlock Attachment, Busbar System, DIN Rail Adapter |
|---|---|
| Accessories | Nut Keeper Plate |
| Standards | IEC 60947-2, UL 489, HACR |
| Approval | ABS, CE, CSA, cULus, DNV, EAC, GL, Lloyd's, RCM, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
6 answersDoes the 3VA5220-5ED31-0AA0 come with line and load lugs installed?

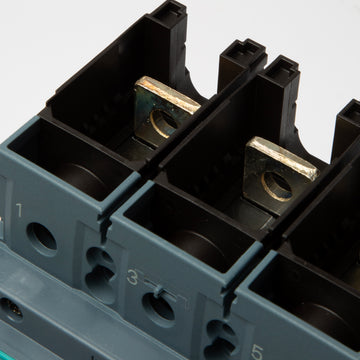

No. This specific catalog number ships with punched copper bar connections and does not include line or load lugs. You will need to order the appropriate lug kits separately or use a variant with a "6" in the 12th digit (e.g., 3VA5220-5ED36-0AA0) for factory-installed standard lugs.
Which Siemens panelboards are compatible with this 3VA52 frame breaker?
This breaker can be installed in Siemens P1, P2, P3, P4, and P5 panelboards, as well as switchboards and motor control centers. Specific strap kits or mounting provisions (such as the S3VA52PR or S3VA52T for P4 and P5 panels) are required depending on the panel type.
Can the 3VA5220-5ED31-0AA0 be reverse fed?
Yes. All Siemens 3VA5 thermal-magnetic molded case circuit breakers are UL listed for reverse feed applications, allowing for flexible installation orientations.
Is this 200A breaker rated for use on direct current (DC) systems?
Yes, it is rated for DC applications up to 750VDC with a 50kA interrupting capacity. When applying three-pole breakers on 500V or 750V ungrounded DC systems, the power supply must be connected in a series "zig-zag" configuration through the poles.
What is the catalog number for this exact breaker with factory-installed lugs?
To order this 200A, 35kA at 480V breaker with standard line and load lugs factory-installed, use catalog number 3VA5220-5ED36-0AA0.
Can I adjust the trip settings on the 3VA5220-5ED31-0AA0?
No. This breaker features a TM210 thermal-magnetic trip unit with fixed long-time (thermal) and fixed instantaneous (magnetic) protection settings. It does not offer field adjustability.
