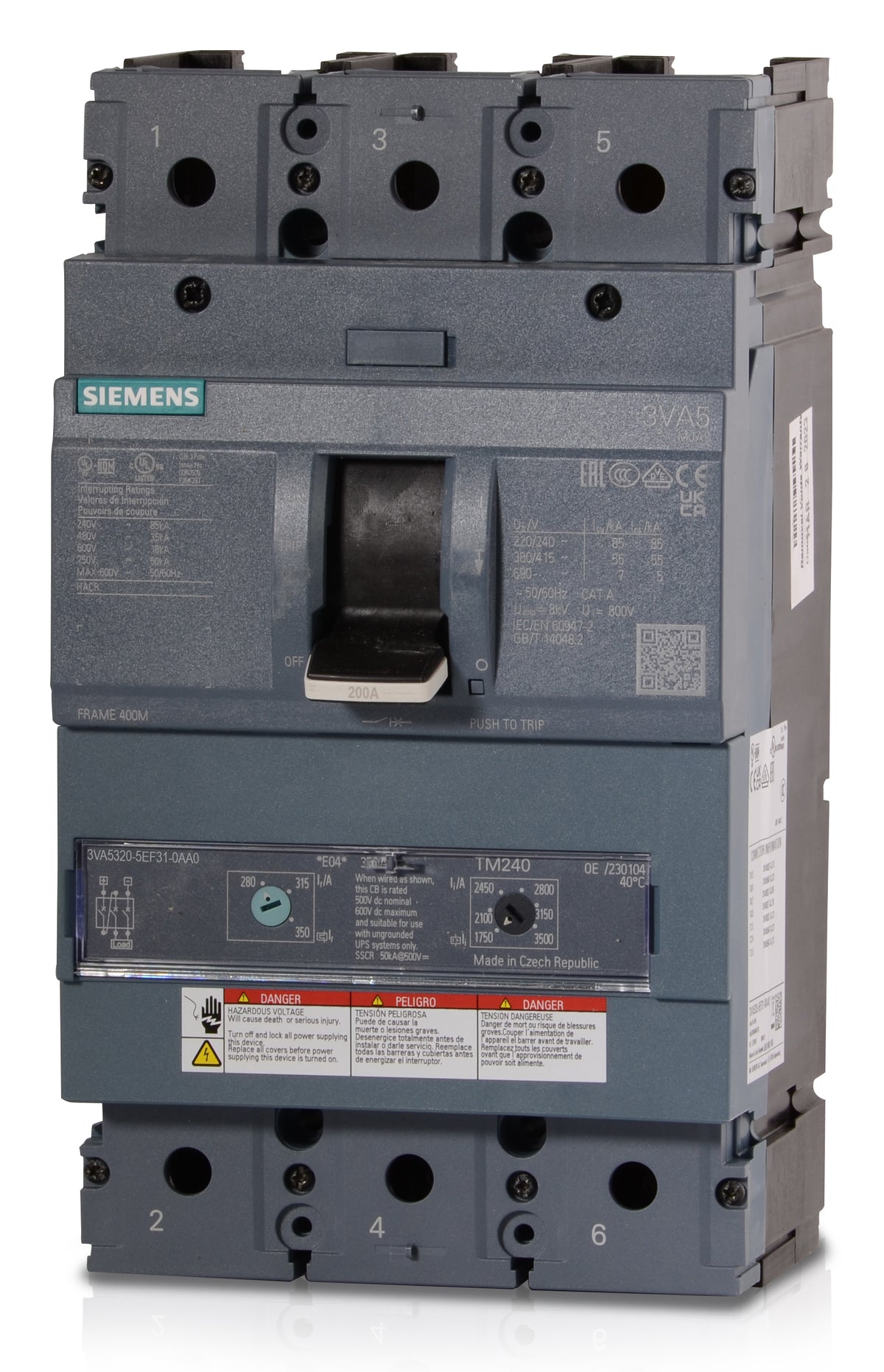

Siemens 3VA5320-5EF31-0AA0 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Panel Mount
Siemens
3VA5320-5EF31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5320-5EF31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA5320-5EF31-0AA0 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
200A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial applications, the Siemens 3VA5320-5EF31-0AA0 provides robust long-time and instantaneous protection. This 3-pole, 200A MCCB is part of the 3VA5 frame group. Designed for panel mount installations, it integrates into Siemens P2, P3, P4, and P5 panelboards and replaces discontinued JD63B200 models. Rated 35 kAIC at 480VAC, this current-limiting breaker features an M-Class interrupting rating and an adjustable thermal and magnetic trip unit for precise calibration.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA5320-5EF31-0AA0 |
| Series | 3VA5 |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 85kA @ 500VDC |
| Amperage Range | 140-200A |
|---|
| Frame Type | 3VA53 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2, P3, P4, P5 Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | None (No Lugs Included) |
| Standards | IEC 60947-2, UL 489, HACR |
| Approval | ABS, CE, CSA, EAC, IEC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Product FAQs
4 answersWhich legacy Siemens circuit breaker does the 3VA5320-5EF31-0AA0 replace?
This 3VA53 frame breaker is the designated replacement for the discontinued JD63B200 molded case circuit breaker.
What are the thermal and magnetic adjustment ranges for the TM240 trip unit on this breaker?
The TM240 ATAM trip unit features an adjustable thermal pickup (Ir) from 160A to 200A and an adjustable instantaneous magnetic trip (Ii) from 1000A to 2000A.
What does the 0AA0 suffix indicate on this Siemens 3VA53 breaker?
The 0AA0 suffix signifies that the breaker is supplied without line or load lugs and does not include any factory-installed internal accessories like auxiliary switches or shunt trips. Lugs must be sourced separately.
What frame size does the 3VA5320-5EF31-0AA0 utilize?
This 200A circuit breaker is built on the Siemens 3VA53 frame, which has a maximum capacity of 400A. This is important to note when selecting mounting hardware, handle operators, or enclosure space.
