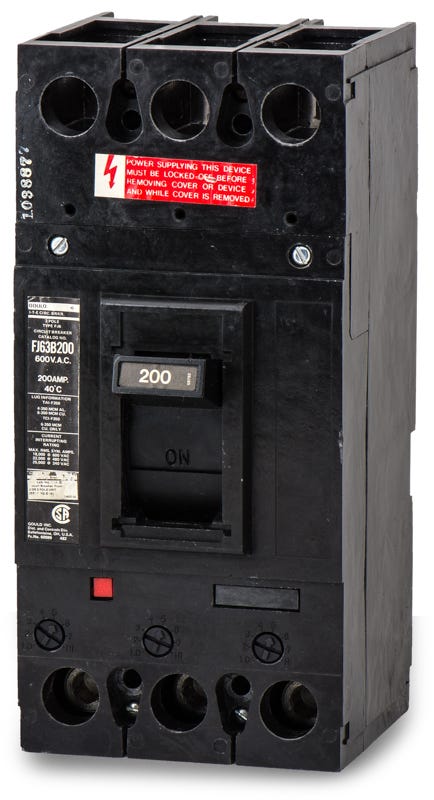

Siemens FJ63B200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Bolt-On
Siemens
FJ63B200
Molded Case Circuit Breaker
Brand
Siemens
SKU
FJ63B200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens FJ63B200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
250A 3 Pole Molded Case Circuit Breaker

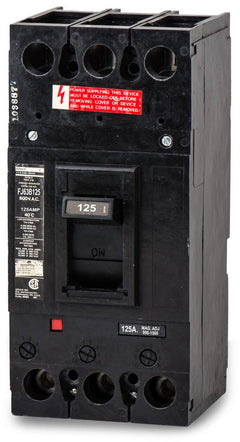

125A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial power distribution, this 200A, 3-pole molded case circuit breaker provides dependable thermal-magnetic protection. It safeguards electrical systems against overloads and short circuits. This bolt-on unit mounts into Siemens P1, P2, and P3 panelboards, SB switchboards, and legacy I-T-E F-Frame enclosures. It is superseded by the FXD63B200 for newer upgrades. Rated for 18kAIC at 600VAC, the breaker features fixed thermal and magnetic trip settings.Specifications
| Brand | Siemens |
|---|---|
| Part Number | FJ63B200-R |
| Series | FJ6 |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FJ63 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards, I-T-E F-Frame Panelboards |
| Wire Gauge | 6 AWG - 350 kcmil (Cu/Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards are compatible with the FJ63B200 circuit breaker?
This bolt-on breaker is designed for use in Siemens P1, P2, and P3 panelboards, as well as SB switchboards. It is also backward compatible with legacy I-T-E F-Frame panelboards.
Can I use the Siemens FJ63B200 to replace an older I-T-E breaker?
Yes, the Siemens FJ63B200 is a direct replacement for legacy I-T-E FJ63B200 breakers. Siemens acquired I-T-E, so this breaker will fit into existing I-T-E F-Frame enclosures without modification.
Are the lugs on the FJ63B200 rated for aluminum wire?
Yes, the standard factory lugs are dual-rated for both copper and aluminum (Cu/Al) conductors. They accept wire sizes from 6 AWG up to 350 kcmil.
Can the FJ63B200 be used in DC power systems?
Yes, this breaker is rated for up to 250VDC with a 10kA interrupting capacity. This makes it suitable for certain DC power distribution applications, in addition to its standard AC ratings.
Does the FJ63B200 allow for field adjustment of the trip curve?
No, this breaker features fixed thermal and fixed magnetic trip elements. It provides standard Long-Time and Instantaneous (LI) protection, but the trip thresholds cannot be adjusted by the user.
What safety functions does the FJ63B200 provide?
It provides thermal-magnetic protection, safeguarding electrical systems against both sustained overloads via the thermal element and sudden short circuits via the magnetic element.
