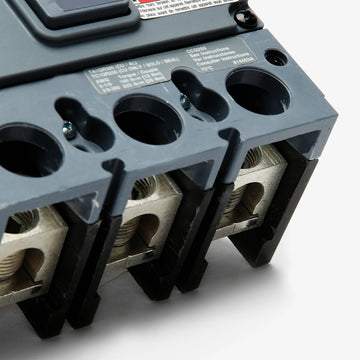

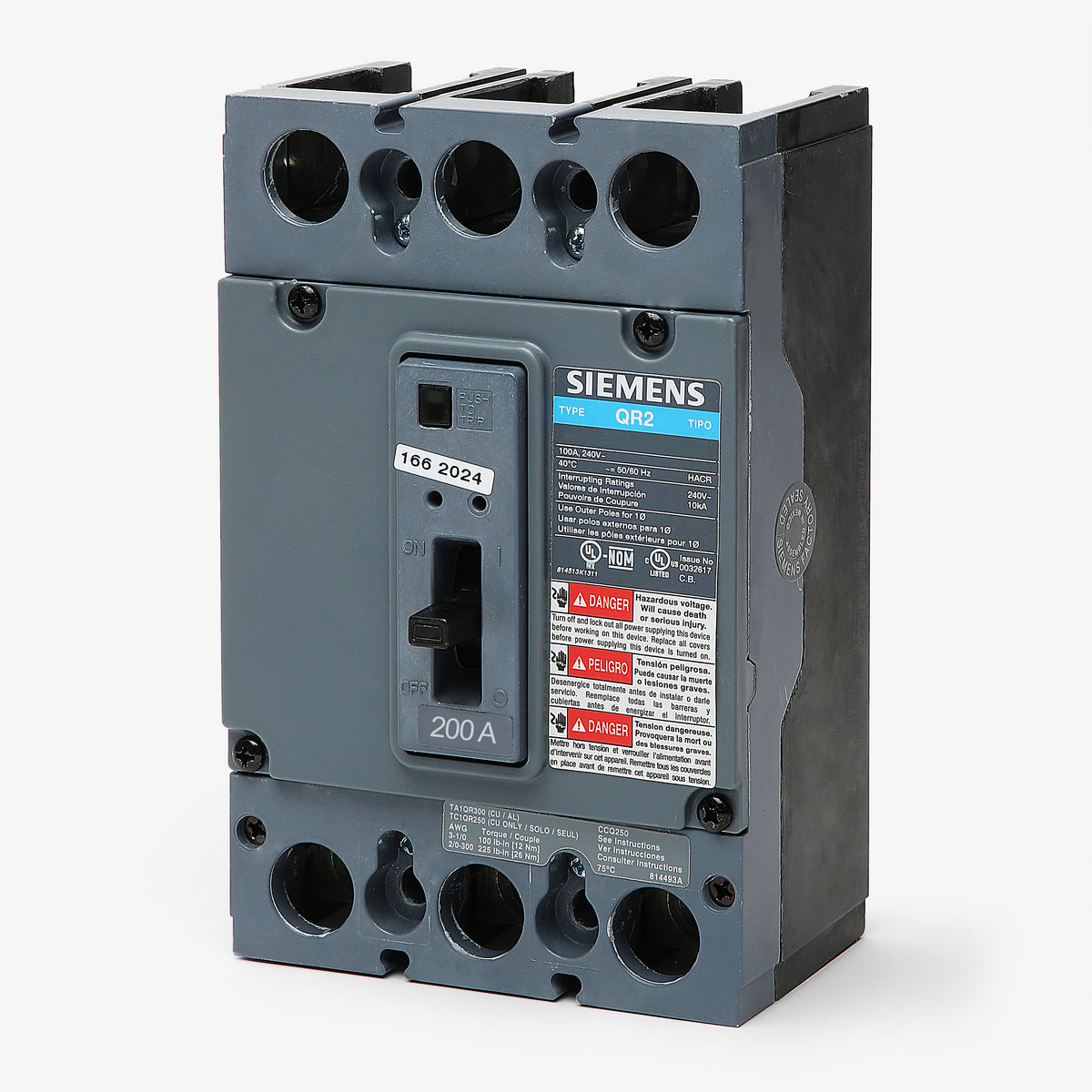

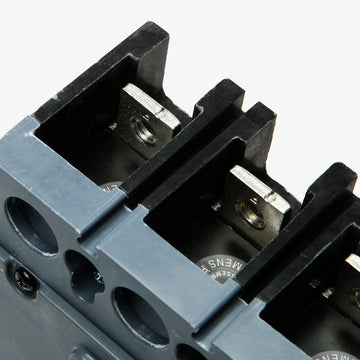

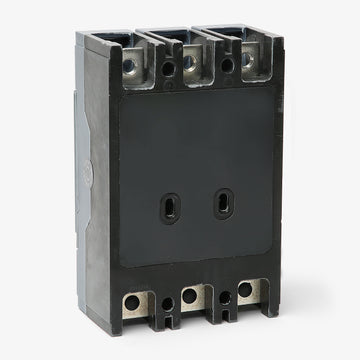

Siemens QR23B200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Bolt-On
Siemens
QR23B200
Molded Case Circuit Breaker
Brand
Siemens
SKU
QR23B200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QR23B200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens QR23B200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QR23B200 |
| Series | QR |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QR |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Meter Centers, Switchboards, Load Centers |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Push-to-Trip Button |
Quantity
Siemens QR23B200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QR23B200 |
| Series | QR |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QR |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Meter Centers, Switchboards, Load Centers |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Push-to-Trip Button |
Similar Items
125A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial environments, this 200-amp SENTRON breaker delivers reliable overcurrent protection. The three-pole unit features a fixed thermal-magnetic trip system. Designed for bolt-on mounting, it fits into Siemens P1, P2, and P3 panelboards. This QR-frame model replaces discontinued QJ23B200 breakers. Offering a 10kA interrupting capacity at 240VAC, it handles demanding loads safely. It includes reverse feed capability and a push-to-trip mechanism.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QR23B200 |
| Series | QR |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QR |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Meter Centers, Switchboards, Load Centers |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Push-to-Trip Button |
Product FAQs
6 answersCan this breaker replace an older QJ frame model?
Yes, the QR series is the direct successor and replacement for legacy QJ frame breakers [1.3.1]. Note that retrofitting this unit into older distribution switchboards or power panels may require a specific mounting adapter kit.
Is this breaker approved for reverse-feed applications?
Yes, this Siemens circuit breaker features a reverse-feed rating, allowing it to be back-fed when required by your electrical system design.
Does this breaker carry an HACR rating?
Yes, it is HACR rated, making it approved for protecting heating, air conditioning, and refrigeration equipment circuits.
How does ambient temperature affect the operation of this breaker?
This unit is calibrated for standard operation at a 40 degrees Celsius ambient temperature. If you are operating the breaker in an environment exceeding this temperature, it must be derated.
Does this model accept internal accessories?
Yes, this frame supports various UL Listed and CSA Certified field-installable internal accessories, including auxiliary switches and shunt trips.
Does this breaker include a push-to-trip feature?
Yes, this breaker is equipped with a push-to-trip button, allowing you to easily test the mechanical tripping mechanism for maintenance and safety verifications.
