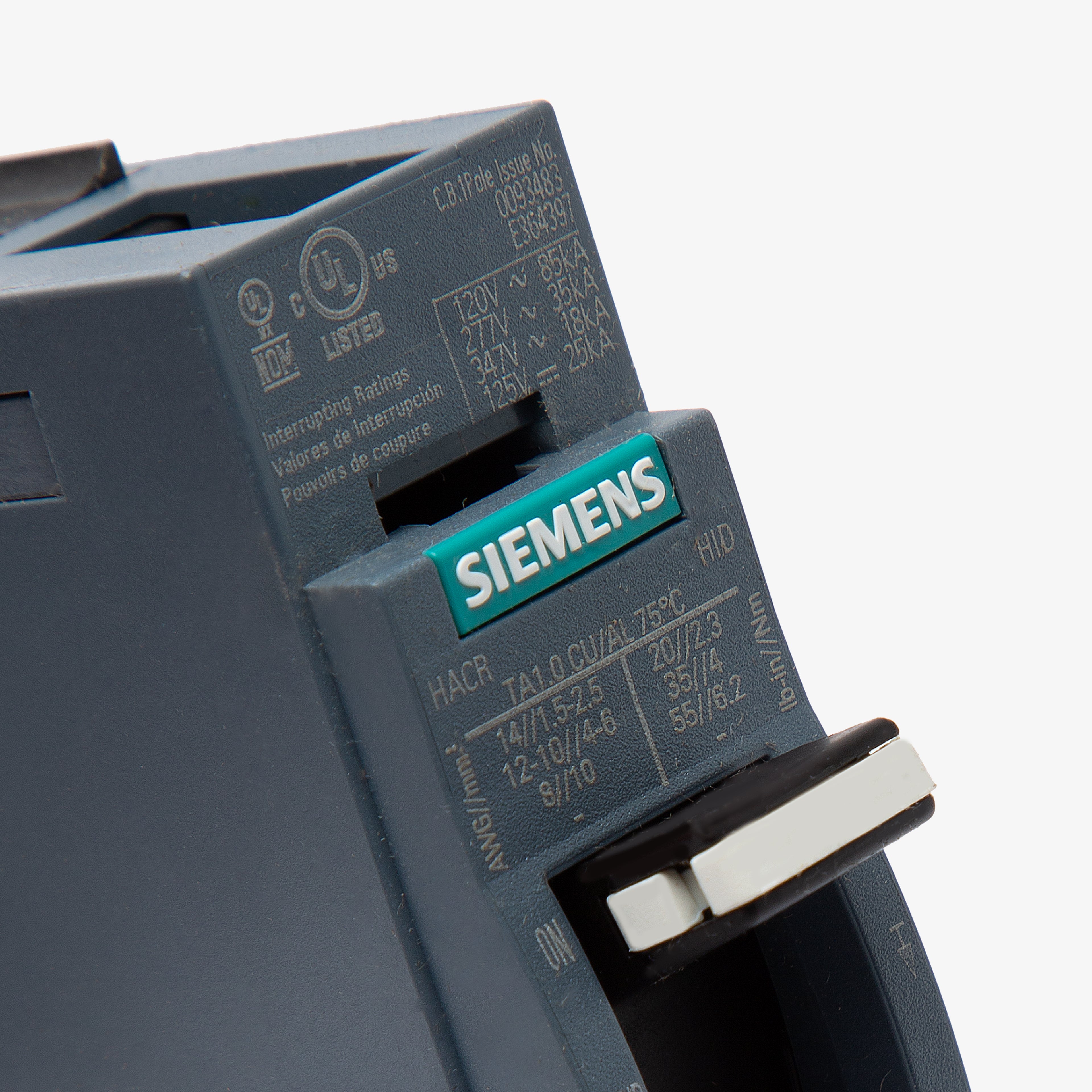

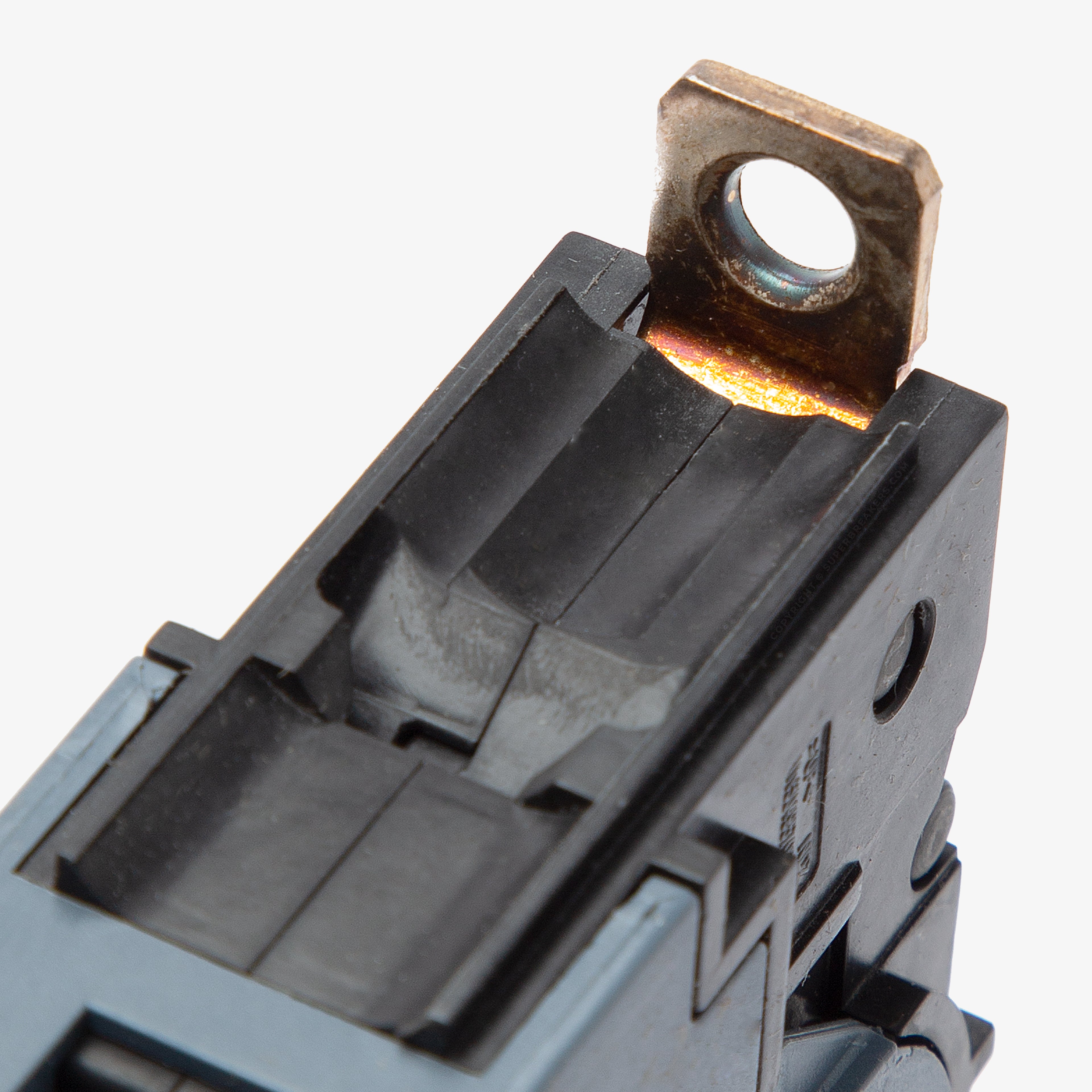

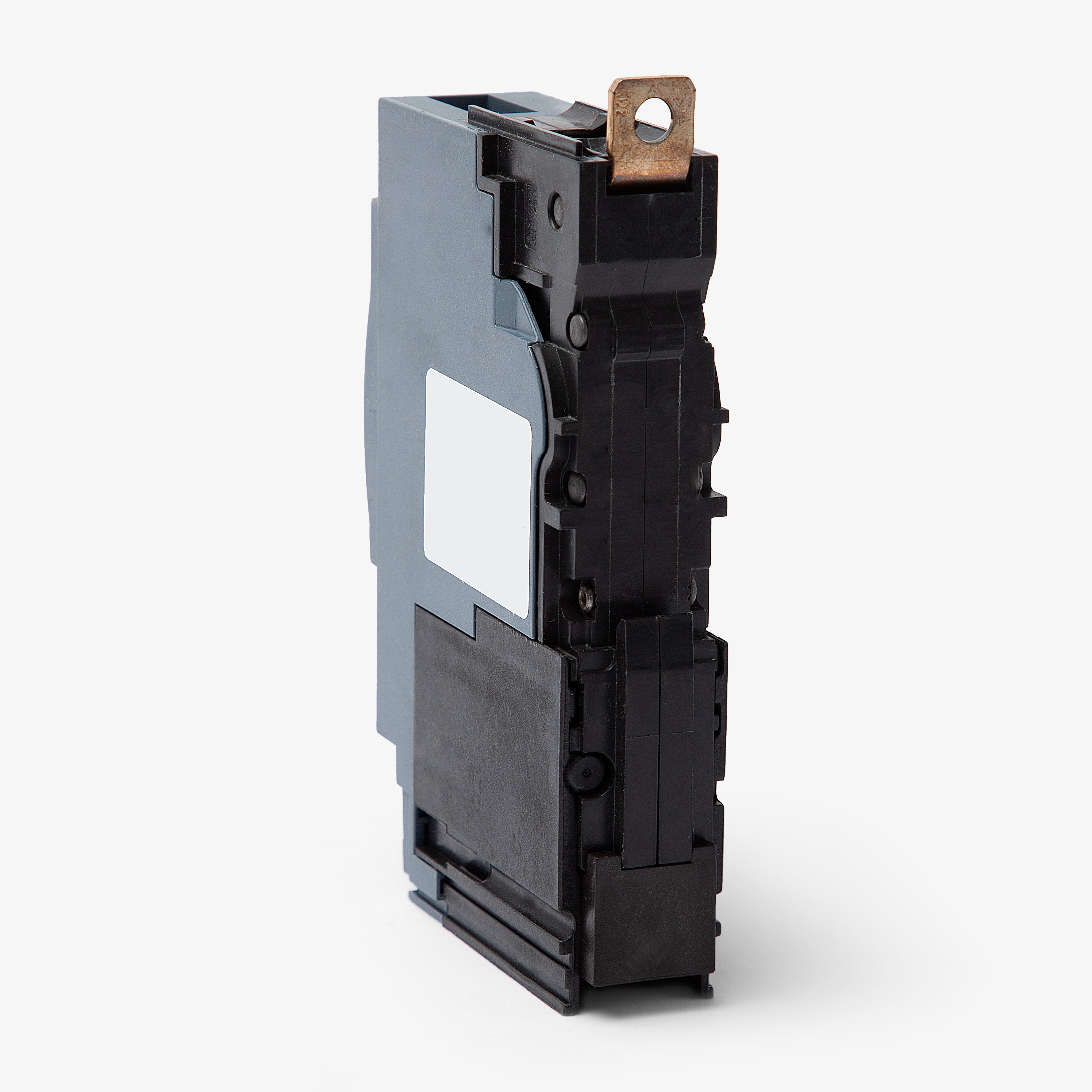

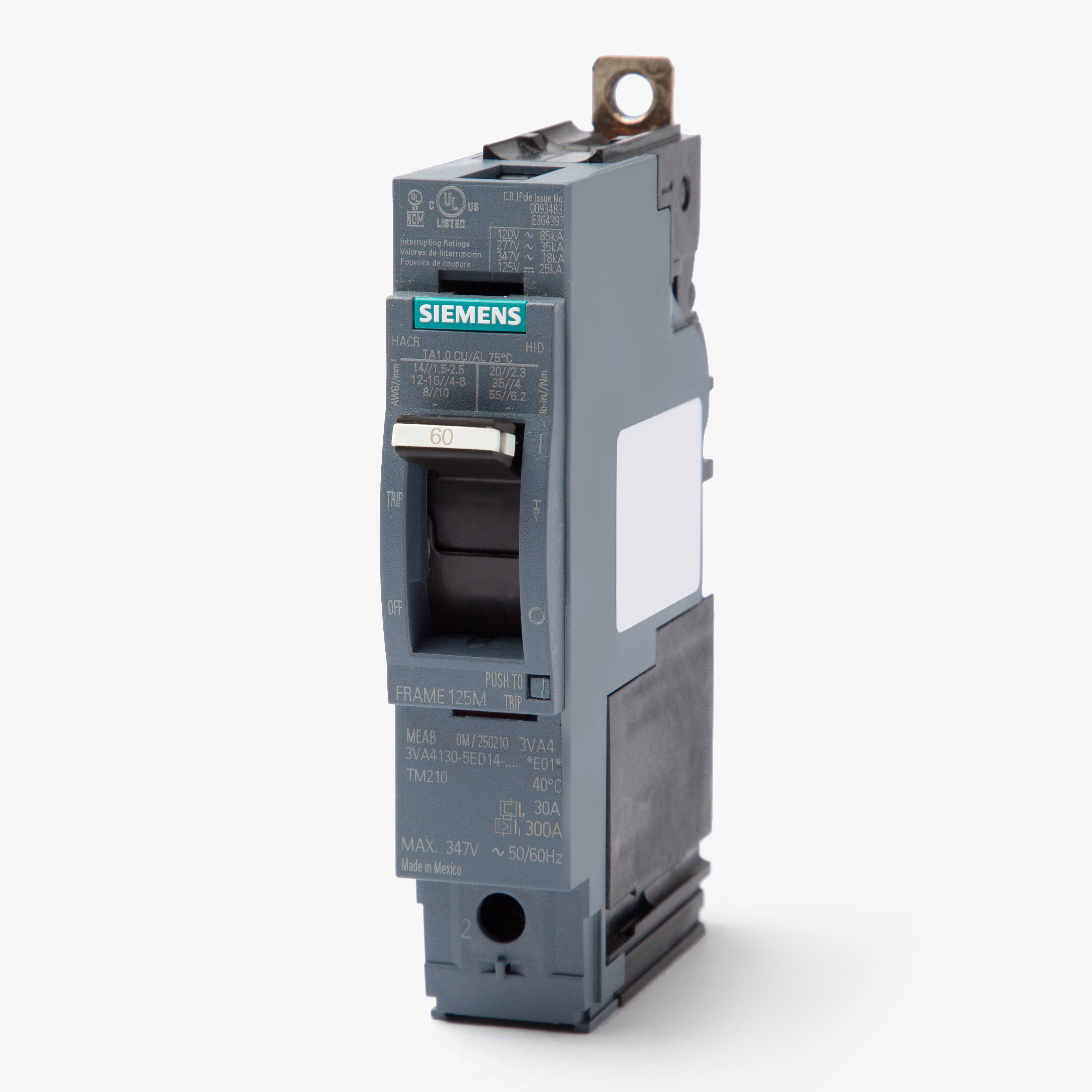

Siemens 3VA4160-5ED14-0AA0 - 60A 1 Pole Molded Case Circuit Breaker

Brand Siemens
SKU 3VA4160-5ED14-0AA0
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Siemens 3VA4160-5ED14-0AA0 - 60A 1 Pole Molded Case Circuit Breaker

Brand Siemens
SKU 3VA4160-5ED14-0AA0
Select Item Condition
Earn 246 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Siemens 3VA4160-5ED14-0AA0 - 60A 1 Pole Molded Case Circuit Breaker

New

$246.47 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Designed specifically for Siemens P1 panelboards, this single-pole 60-amp bolt-on breaker utilizes proven thermal-magnetic trip technology. The SENTRON 3VA4 series component delivers exceptional fault clearing with an 85kA interrupting rating at 120VAC and 35kA at 277VAC. Facility managers can utilize this HACR-rated unit to upgrade aging infrastructure, as it serves as an exact substitute for discontinued ED61B060 and HED41B060 models in commercial environments.

Specifications

Brand Siemens
Series 3VA4
Amperage 60A
Voltage 120VAC, 277VAC, 125VDC, 347VAC
Poles 1
Phase 1
AIC Rating 85kA @ 120VAC, 35kA @ 277VAC, 85kA @ 125VDC, 18kA @ 347VAC
Mounting Style Bolt-On
Terminal Type Lugs
For Use With Siemens P1 Panelboards
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 14 AWG - 3/0 AWG (Cu/Al)
Max Wire 3/0 AWG
Min Wire 14 AWG
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment
Accessories Load Side Lugs (Factory Installed)
Standards CSA C22.2 No. 5, IEC 60947-2, UL 489
Approval CE, CSA, HACR, UL
Temp Rating -25C to 70C
Construction Features HACR Rated, Reverse Feed
