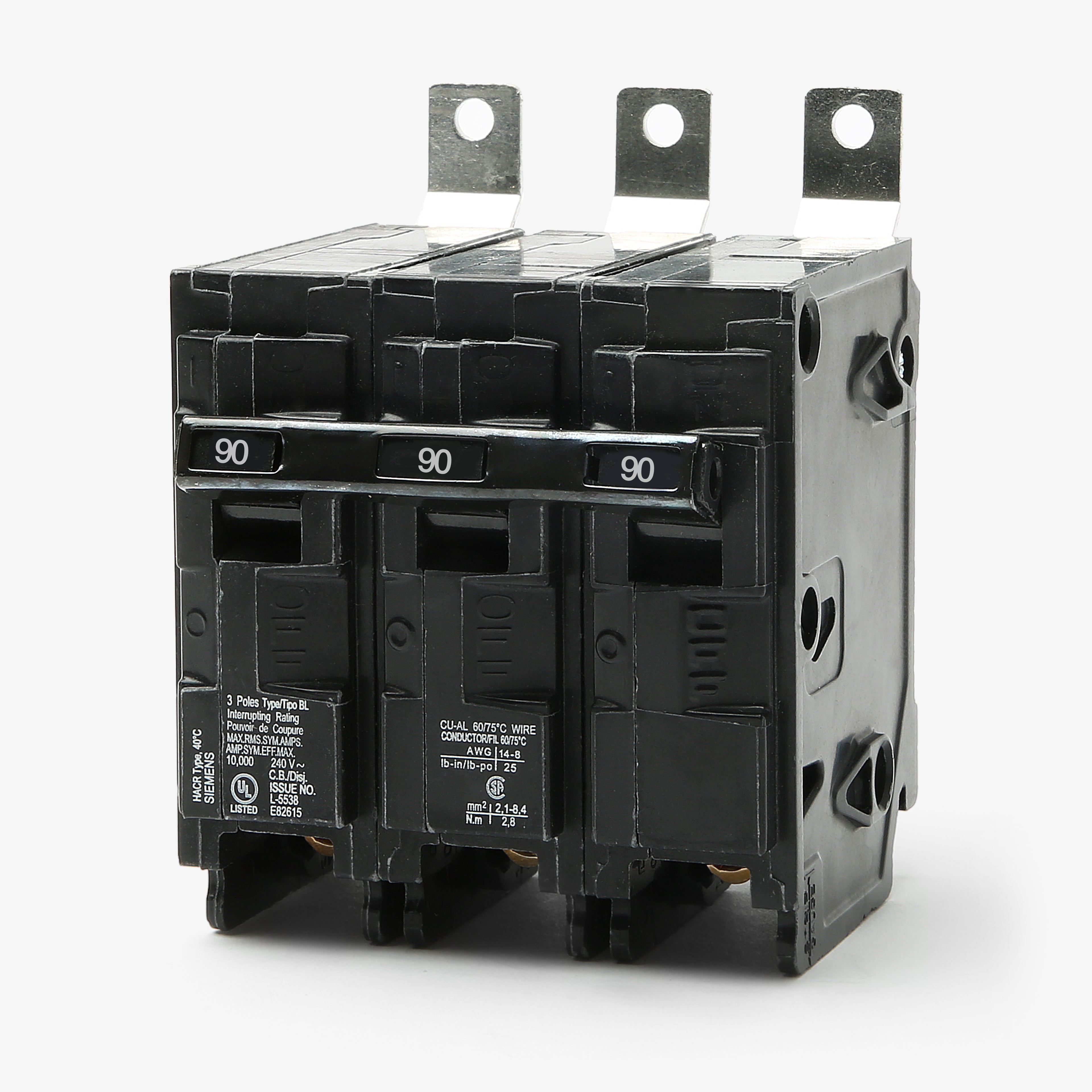

Siemens B390 - 90A 3 Pole Miniature Circuit Breaker

New

$129.99 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Built for reliable power distribution, the Siemens B390 is a 3-pole, 90A miniature circuit breaker. It operates at 240VAC and utilizes thermal-magnetic trip technology to protect commercial branch circuits from overloads and short circuits. This Type BL breaker features a bolt-on mounting style for secure installation into Siemens P1, P2, and P3 panelboards. It includes load-side lugs that accommodate up to 1/0 AWG conductors. Delivering a 10kAIC rating, the unit is HACR certified.

Specifications

Brand Siemens
Series B
Part Number B390
Amperage 90A
Voltage 240VAC
Poles 3
Phase 3
AIC Rating 10kA @ 240VAC
Mounting Style Bolt-On
Terminal Type Lugs
For Use With Siemens P1, P2, P3 Panelboards
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed
Wire Gauge 4-1/0 AWG (Cu), 2-1/0 AWG (Al)
Max Wire 1/0 AWG
Min Wire 4 AWG (Cu), 2 AWG (Al)
Available Options Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Rotary Handle

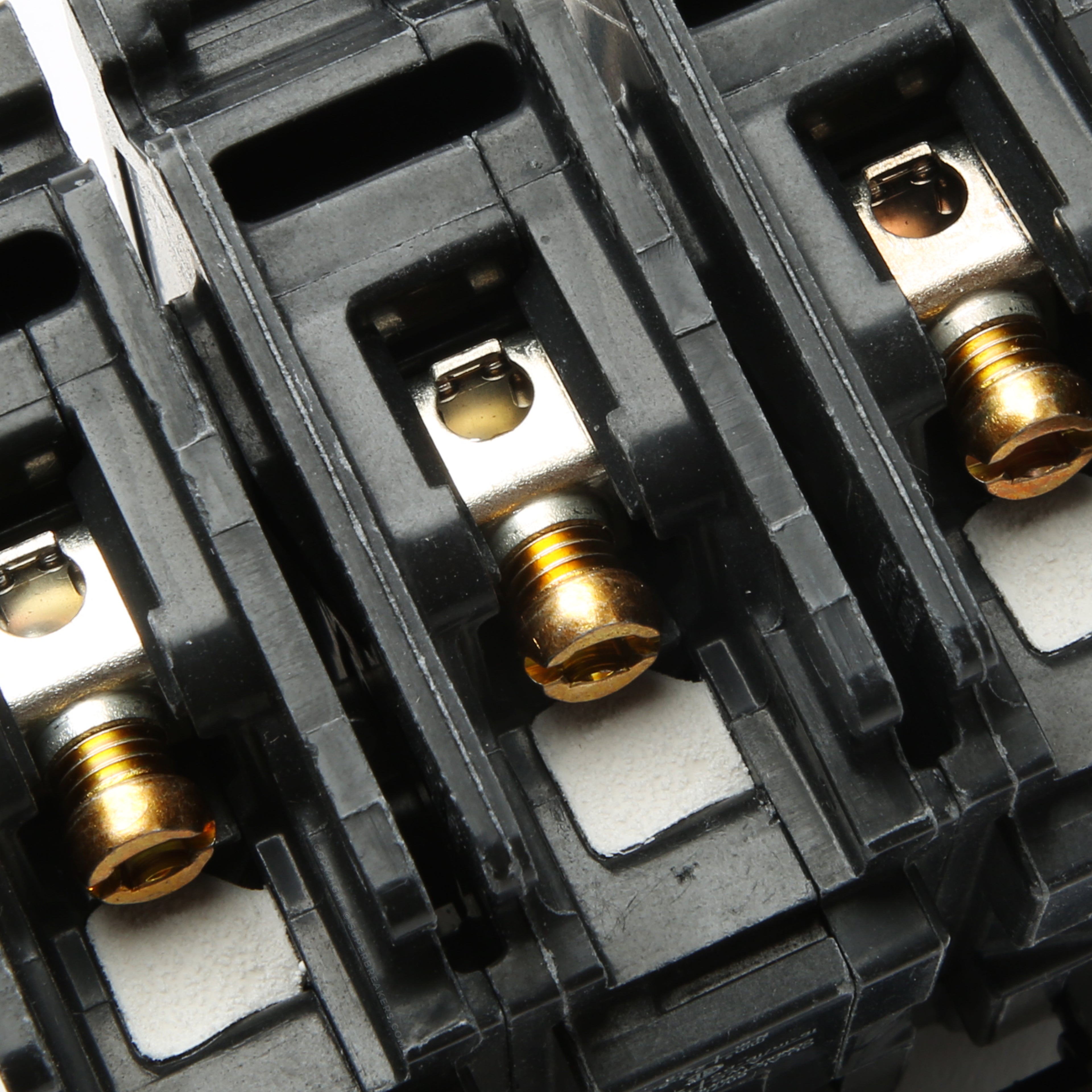

Accessories Load Side Lugs Included
Standards CSA C22.2 No. 5, UL 489
Approval CSA, HACR, UL
Temp Rating 40C
Construction Features HACR Rated, Non-Interchangeable Trip, Trip-Free Mechanism
