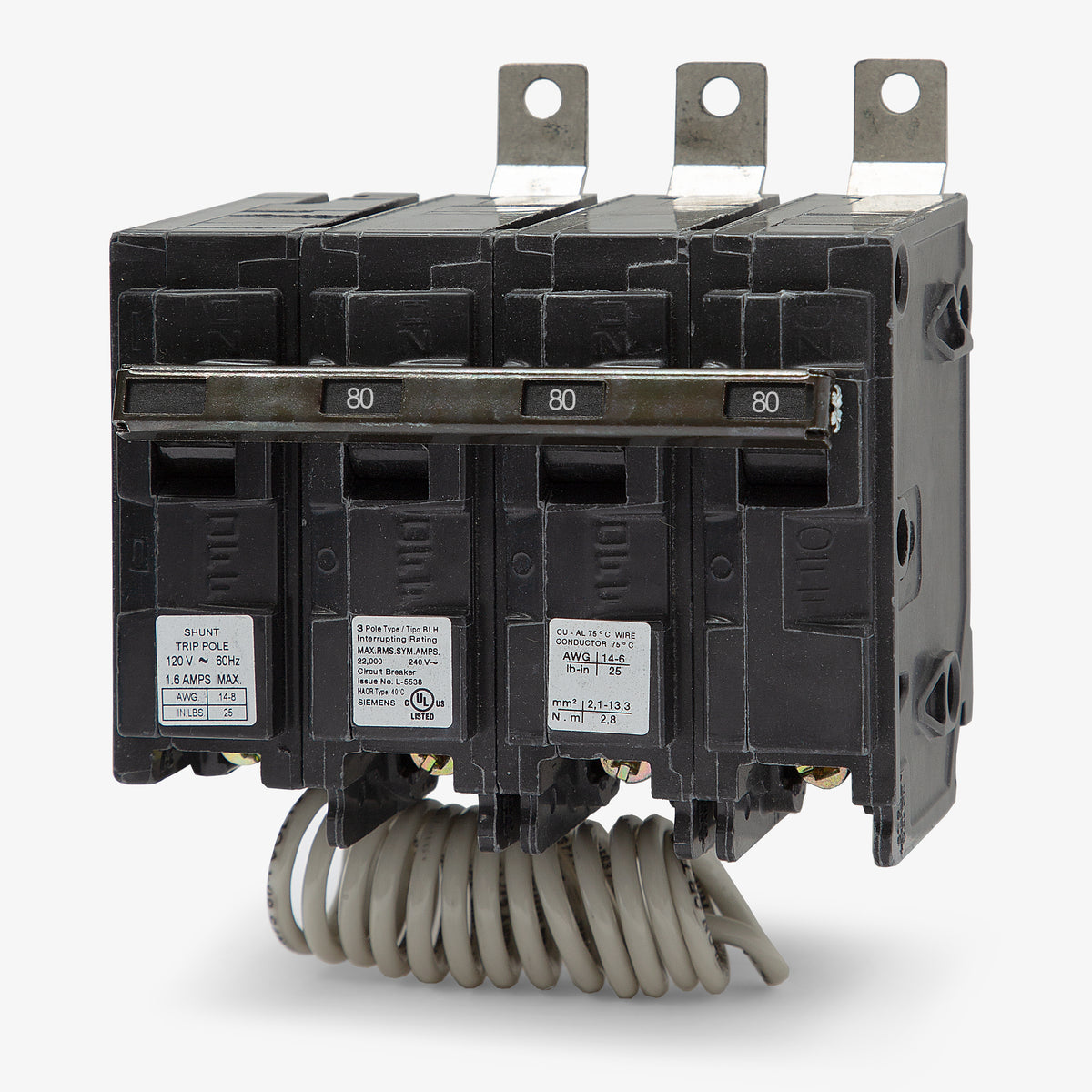

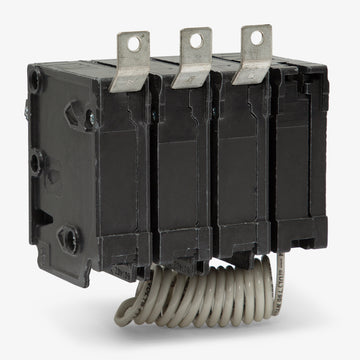

Siemens B380H00S01 Miniature Circuit Breaker
- 80A
- 3 Pole
- Bolt-On
Siemens
B380H00S01
Miniature Circuit Breaker
Brand
Siemens
SKU
B380H00S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens B380H00S01 - 80A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
60A 3 Pole Miniature Circuit Breaker
30A 3 Pole Miniature Circuit Breaker
Description
Designed for advanced control, the Siemens B380H00S01 combines standard overcurrent protection with remote tripping capabilities. This 80A, three-pole breaker features a factory-installed 120VAC shunt trip for automated disconnects. This BLH-type breaker installs into Siemens P1, P2, and P3 panelboards. The bolt-on mounting style provides a highly secure connection, and the lugs support 4-1/0 AWG copper wire. Delivering a 22 kAIC rating at 240VAC, this HACR-rated unit safely clears faults.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B380H00S01 |
| Series | B |
| Amperage | 80A |
| Poles | 3 |

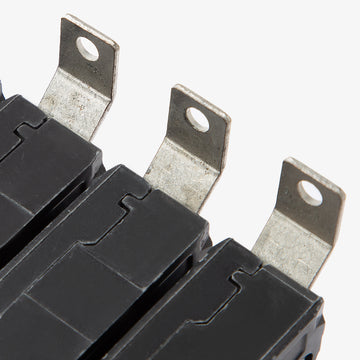

| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | B |
|---|---|

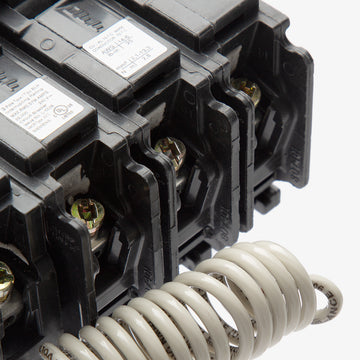

| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu), 2-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG (Cu), 2 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment, Rotary Handle |
|---|---|
| Accessories | Shunt Trip (120VAC) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Trip-Free Mechanism |
Product FAQs
5 answersWhat does the '00S01' suffix indicate on the B380H00S01 breaker?
The '00S01' suffix signifies that this breaker includes a factory-installed 120V AC shunt trip, which allows the breaker to be tripped remotely.
What does the 'H' in the B380H00S01 catalog number designate?
The 'H' identifies this as a BLH-type breaker. This provides a high interrupting rating of 22kAIC at 240V AC, compared to the 10kAIC rating found on standard BL-type breakers.
Can the B380H00S01 be installed in a standard Siemens load center?
No, this is a bolt-on circuit breaker designed specifically for Siemens P1, P2, and P3 commercial panelboards. It will not fit in plug-on residential load centers.
How does the 120V shunt trip operate on the B380H00S01?
The factory-installed shunt trip requires a 120V AC control signal. When voltage is applied to the shunt trip circuit, it mechanically opens the breaker contacts to provide remote shutdown capabilities.
Is the Siemens B380H00S01 a direct replacement for ITE models?
Yes, Siemens acquired ITE, and this unit directly replaces the legacy ITE B380H00S01. It is also commonly cross-referenced under part number 6FME3.
