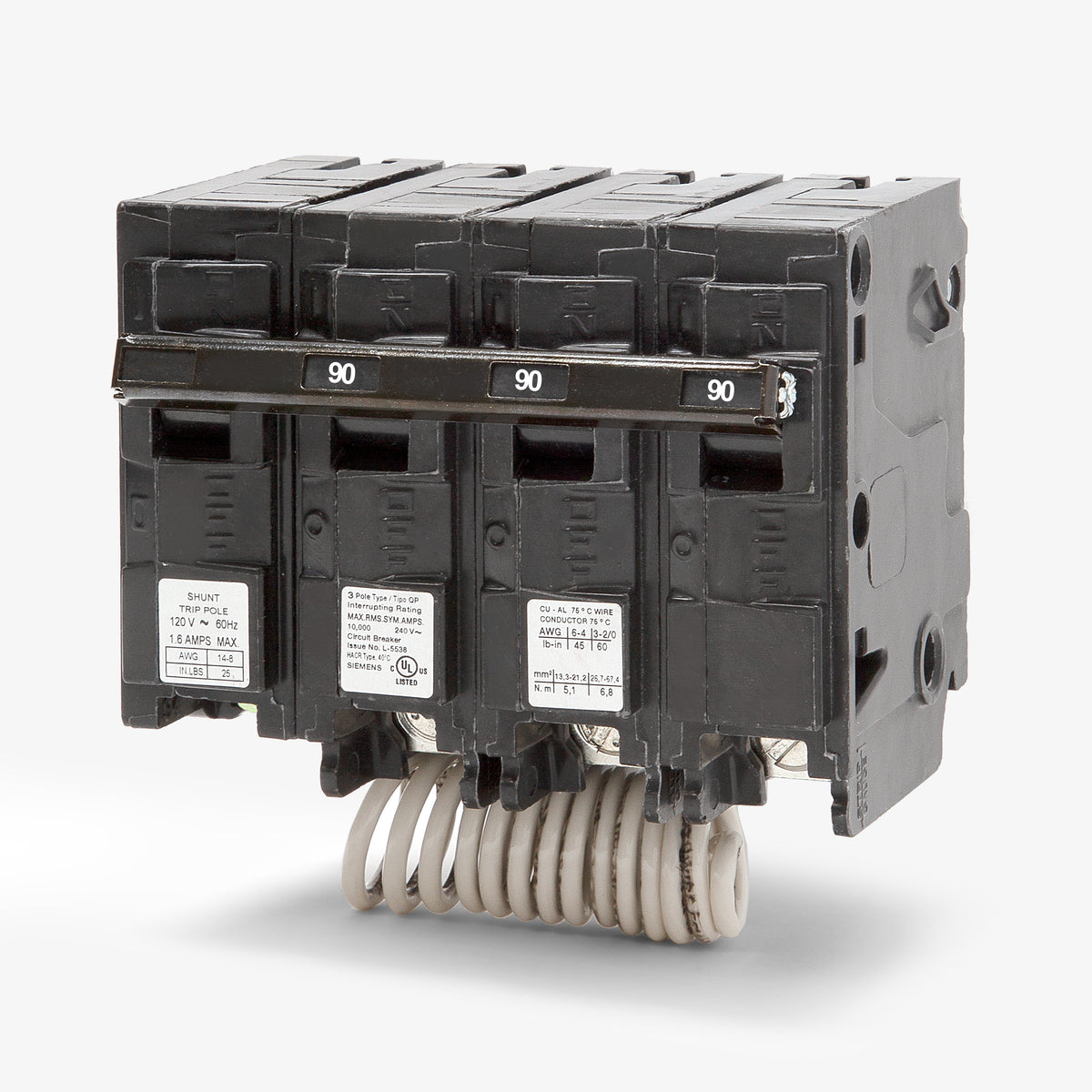

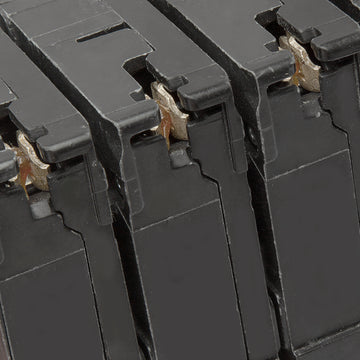

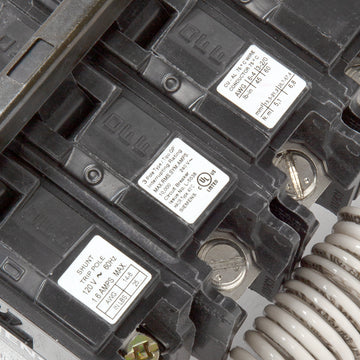

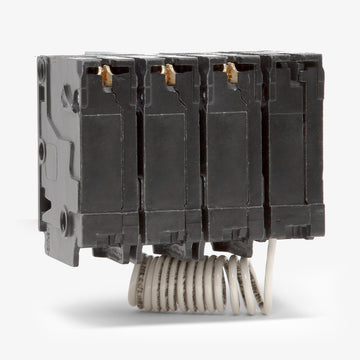

Siemens Q39000S01 Miniature Circuit Breaker
- 90A
- 3 Pole
- Plug-On
Siemens
Q39000S01
Miniature Circuit Breaker
Brand
Siemens
SKU
Q39000S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens Q39000S01 - 90A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
80A 3 Pole Miniature Circuit Breaker
70A 3 Pole Miniature Circuit Breaker
60A 3 Pole Miniature Circuit Breaker
Description
Designed for commercial applications, this three-pole 90A breaker features a factory-installed 120VAC shunt trip for remote power disconnection. It installs into Siemens P1 panelboards and standard EQ or Ultimate load centers. The 10kAIC rated unit includes Insta-Wire connectors to speed up installation and provides reliable long-time and instantaneous trip functions.Specifications
| Brand | Siemens |
|---|---|
| Part Number | Q39000S01 |
| Series | QP |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Load Centers, Siemens P1 Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu), 2-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Factory Installed Shunt Trip (120VAC) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated |
Product FAQs
5 answersWhat does the 00S01 suffix indicate on the Q39000S01 catalog number?
The 00S01 suffix means the breaker includes a factory-installed 120V AC shunt trip. This allows the breaker to be opened remotely via a 120V control signal, which is commonly used for emergency stops or automated power disconnection.
How many 1-inch panel spaces are required to install the Q39000S01?
This breaker requires four 1-inch panel spaces. The 3-pole breaker occupies three spaces, and the attached shunt trip module requires one additional adjacent space.
Which load centers and panelboards are compatible with this breaker?
The Q39000S01 is designed for use in Siemens EQ and Ultimate load centers, as well as Siemens P1 panelboards that accept plug-on QP series branch breakers.
What control voltage is required to activate the shunt trip mechanism?
The factory-installed shunt trip on this specific model requires a 120V AC control voltage signal to remotely trip the breaker contacts.
Does this breaker provide ground fault or arc fault protection?
No. The Q39000S01 is a standard thermal magnetic breaker with long-time and instantaneous (LI) trip functions. It does not include GFCI or AFCI protection.
