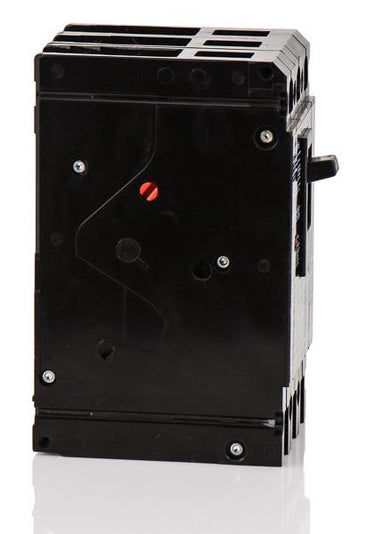

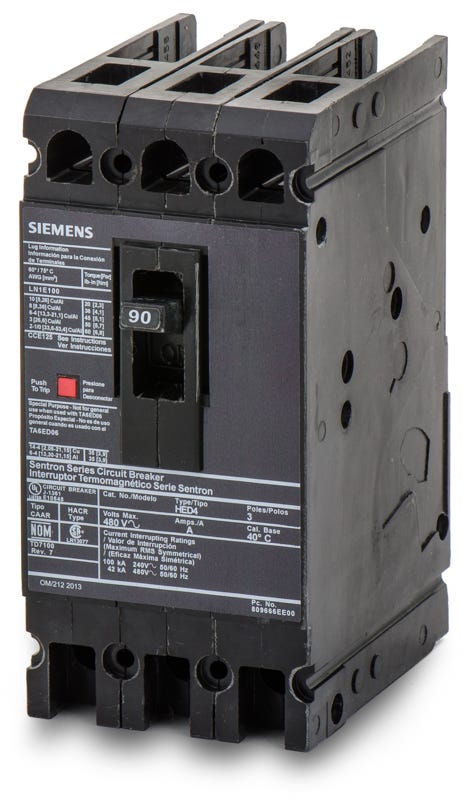

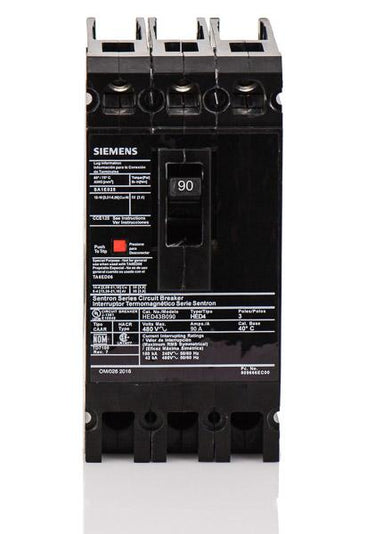

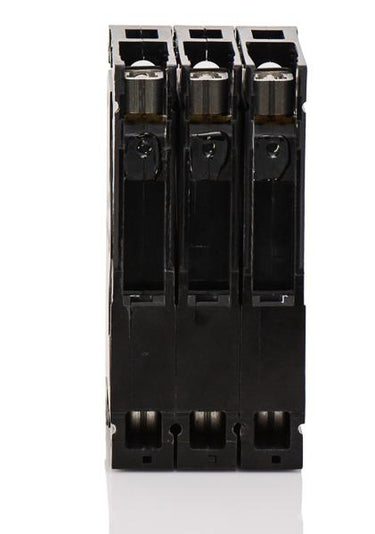

Siemens HED43B090L Molded Case Circuit Breaker
- 90A
- 3 Pole
- Unit Mount
Siemens
HED43B090L
Molded Case Circuit Breaker
Brand
Siemens
SKU
HED43B090L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HED43B090L - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
110A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Part of the Sentron ED-frame family, this 90-amp three-pole breaker delivers robust long-time and instantaneous trip functions for commercial environments. It mounts into standard enclosures, switchboards, and motor control centers requiring unit-mount configurations. Featuring a 42kAIC rating at 480VAC, the device includes factory-installed line and load lugs to streamline wiring. Note that this legacy component is officially replaced by the newer 3VA5190-6EC36-0AA0 series.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HED43B090L |
| Series | HED4 |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
7 answersWhat is the difference between the HED43B090 and HED43B090L?
The L suffix in the HED43B090L catalog number indicates that the breaker is supplied with both line and load side lugs factory-installed. Standard ED-frame breakers without the L suffix typically only include load side lugs.
What types of panels accept this breaker?
This unit mount ED-frame breaker is designed for installation in Siemens Sentron panelboards, switchboards, and motor control centers.
Is this circuit breaker suitable for reverse feeding?
Yes, all Siemens ED-frame circuit breakers are suitable for reverse connection.
What replacement lugs are used on this breaker?
This breaker uses Siemens LN1E100 lugs on both the line and load sides. These lugs accept 10 to 1/0 AWG copper or aluminum wire.
Is this breaker HACR rated?
Yes, this ED-frame breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
Is this breaker rated for 100 percent continuous duty?
No, this is a standard rated breaker. It is designed to carry 80 percent of its maximum rated current for continuous loads lasting three hours or more.
What is the maximum frame size for the HED4 series?
The HED4 series belongs to the Siemens ED-frame family, which has a maximum frame size of 125A.
