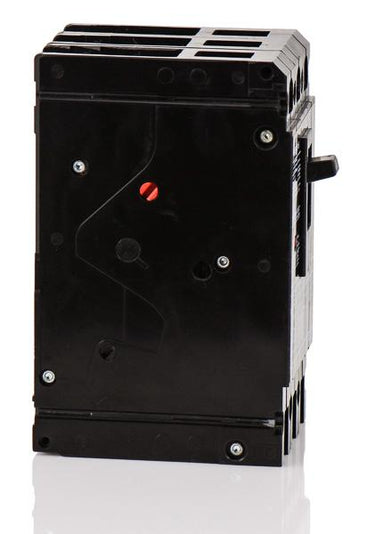

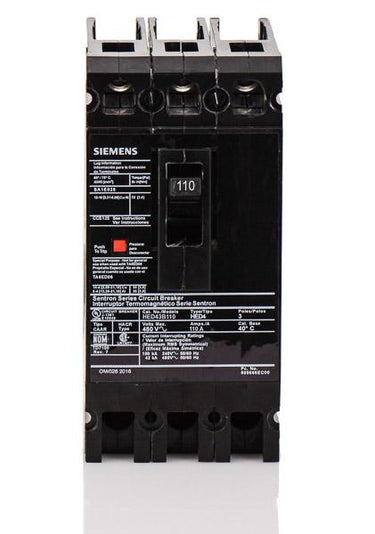

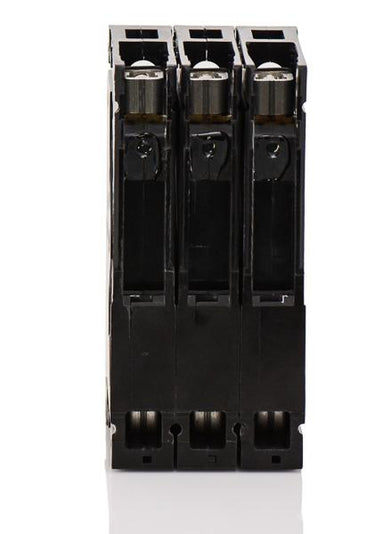

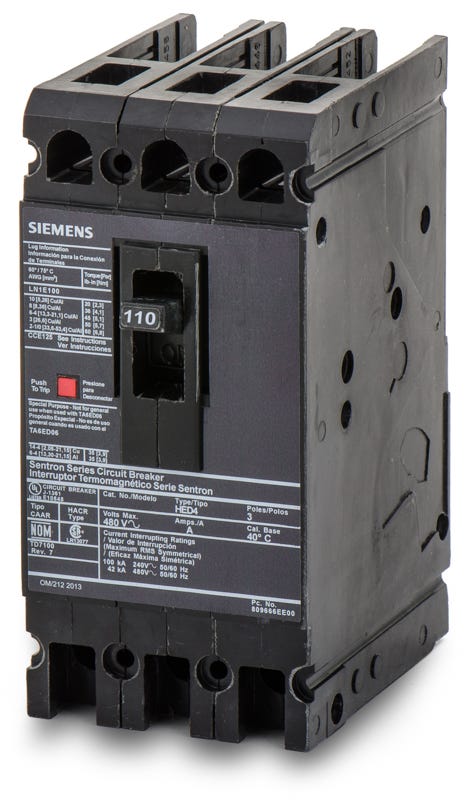

Siemens HED43B110L Molded Case Circuit Breaker
- 110A
- 3 Pole
- Unit Mount
Siemens
HED43B110L
Molded Case Circuit Breaker
Brand
Siemens
SKU
HED43B110L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HED43B110L - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
125A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Belonging to the Sentron family, this 110-amp molded case circuit breaker delivers robust long-time and instantaneous trip functions. The ED-frame footprint is standard across many industrial applications requiring high interrupting capacity. Designed for unit mounting, it installs into Siemens enclosures, switchboards, and motor control centers. Line and load lugs are factory-installed.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HED43B110L |
| Series | HED4 |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 3-3/0 AWG (Cu), 1-2/0 AWG (Al) |
| Max Wire | 3/0 AWG (Cu), 2/0 AWG (Al) |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Product FAQs
5 answersHow is the HED43B110L mounted in an enclosure?
This is a unit mount, feed-thru circuit breaker. Instead of plugging into a panelboard busbar, it bolts directly to a backpan or mounting plate. It is compatible with Siemens enclosures, switchboards, and motor control centers designed for ED frame breakers.
What does the "L" suffix mean in the HED43B110L catalog number?
The "L" suffix indicates that the breaker is supplied with both line and load side lugs factory installed.
What is the difference between ED4 and HED4 circuit breakers?
HED4 breakers are the high interrupting capacity version of the standard ED4 frame. While a standard ED4 is rated for 18kA at 480VAC, the HED43B110L is rated for 42kA at 480VAC.
Can the Siemens HED43B110L be reverse fed?
Yes, this ED frame circuit breaker features a non-interchangeable trip unit and is suitable for reverse feed applications.
Is the HED43B110L HACR rated?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
