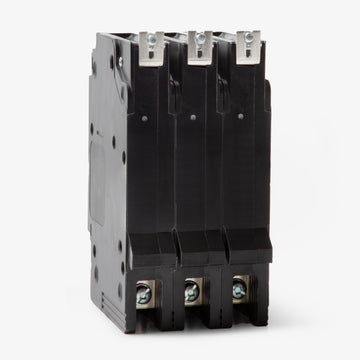

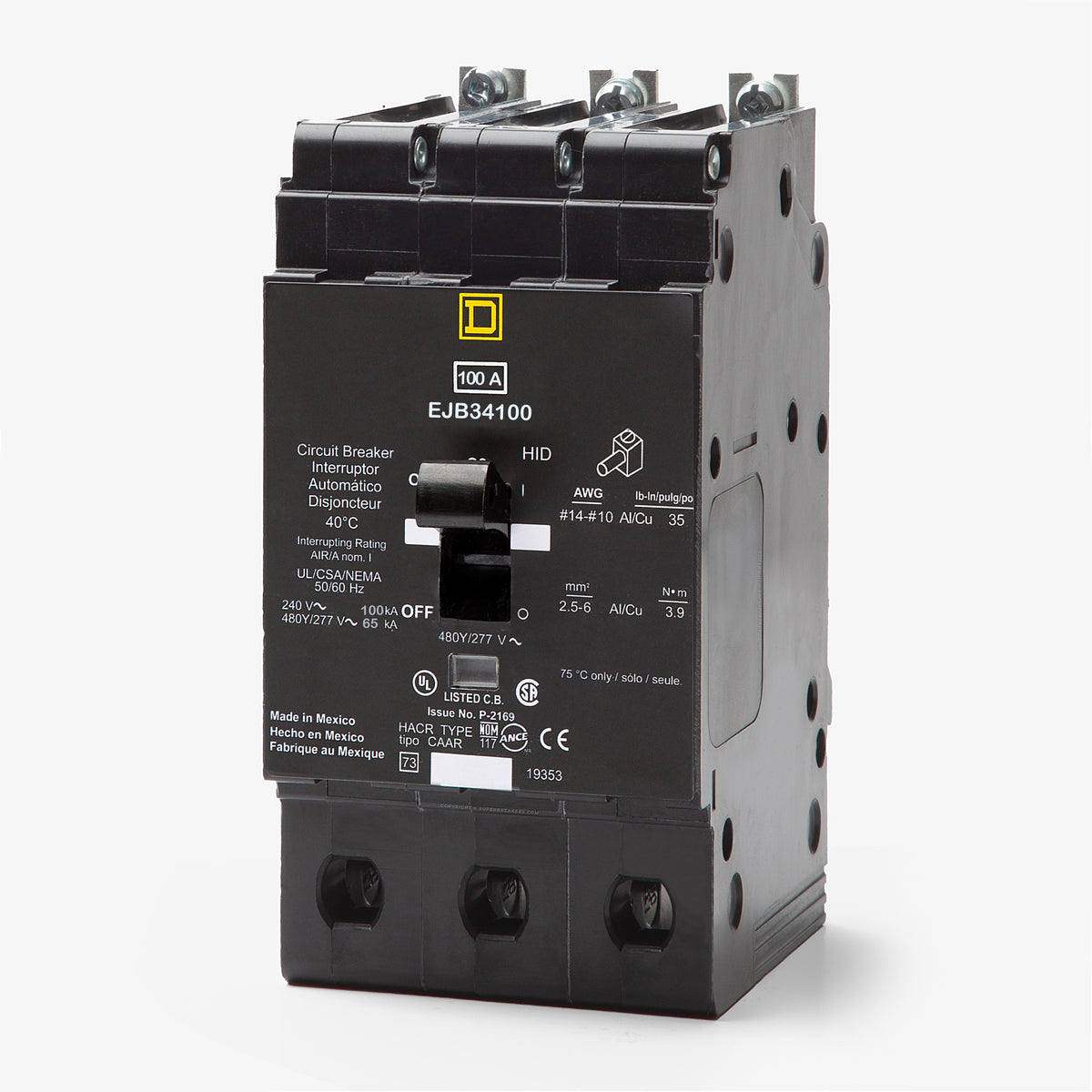

Square D EJB34100 Miniature Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
Square D
EJB34100
Miniature Circuit Breaker
Brand
Square D
SKU
EJB34100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EJB34100 - 100A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D EJB34100 - 100A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EJB34100 |
| Series | EJB |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 120VAC, 100kA @ 240VAC, 65kA @ 277VAC, 65kA @ 480Y/277VAC |
| Frame Type | EJB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Quantity
Square D EJB34100 - 100A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EJB34100-R |
| Series | EJB |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 120VAC, 100kA @ 240VAC, 65kA @ 277VAC, 65kA @ 480Y/277VAC |
| Frame Type | EJB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Similar Items
90A 3 Pole Miniature Circuit Breaker
80A 3 Pole Miniature Circuit Breaker
125A 3 Pole Miniature Circuit Breaker
Description
Built for demanding industrial environments, this 100-amp three-pole device offers robust thermal-magnetic protection. The E-frame construction provides consistent performance across 120V, 240V, 277V, and 480Y/277V commercial networks. It fastens securely into Square D NF panelboards using a standard bolt-on configuration. Factory-installed aluminum lugs accommodate a wide range of wire gauges. This HACR and HID rated unit boasts a 100kAIC capacity at 240V and features a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | EJB34100 |
| Series | EJB |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 120VAC, 100kA @ 240VAC, 65kA @ 277VAC, 65kA @ 480Y/277VAC |
| Frame Type | EJB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat panelboards are compatible with the Square D EJB34100?
This breaker is designed specifically for Square D NF series merchandised panelboards. It features a bolt-on connection and will not fit NQ or I-Line panelboards.
What is the difference between Square D EDB, EGB, and EJB circuit breakers?
They share the identical E-frame physical dimensions and fit the exact same NF panelboards, but differ in their maximum interrupting capacity at 480Y/277VAC. The EDB series is rated for 18kA, EGB is rated for 35kA, and the EJB series is the highest tier at 65kA.
Can the EJB34100 be used to replace an EDB34100 or EGB34100?
Yes. Because the EJB34100 has a higher interrupting rating but the exact same physical footprint, it serves as a safe, direct drop-in replacement or upgrade for the lower-rated EDB and EGB 100-amp 3-pole breakers.
Is the EJB34100 HACR rated?
Yes, this E-frame breaker is HACR rated. It is suitable for protecting group motor applications in heating, air conditioning, and refrigeration equipment according to UL 489 standards.
What does the LI trip function indicate on this breaker?
The LI designation signifies Long-Time and Instantaneous protection. This is standard thermal-magnetic protection, utilizing a bimetallic strip for prolonged overloads (Long-Time) and an electromagnet to clear rapid short-circuit faults (Instantaneous).
Is the EJB34100 rated for use with aluminum wire?

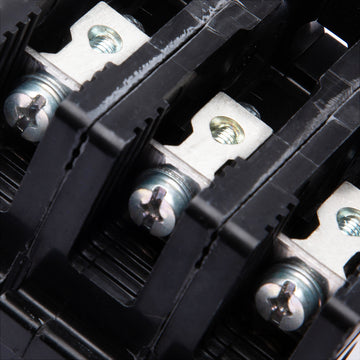

Yes, the factory-installed mechanical lugs are dual-rated for both copper and aluminum conductors. The permitted wire range is 14 to 2/0 AWG for copper, and 12 to 2/0 AWG for aluminum.
