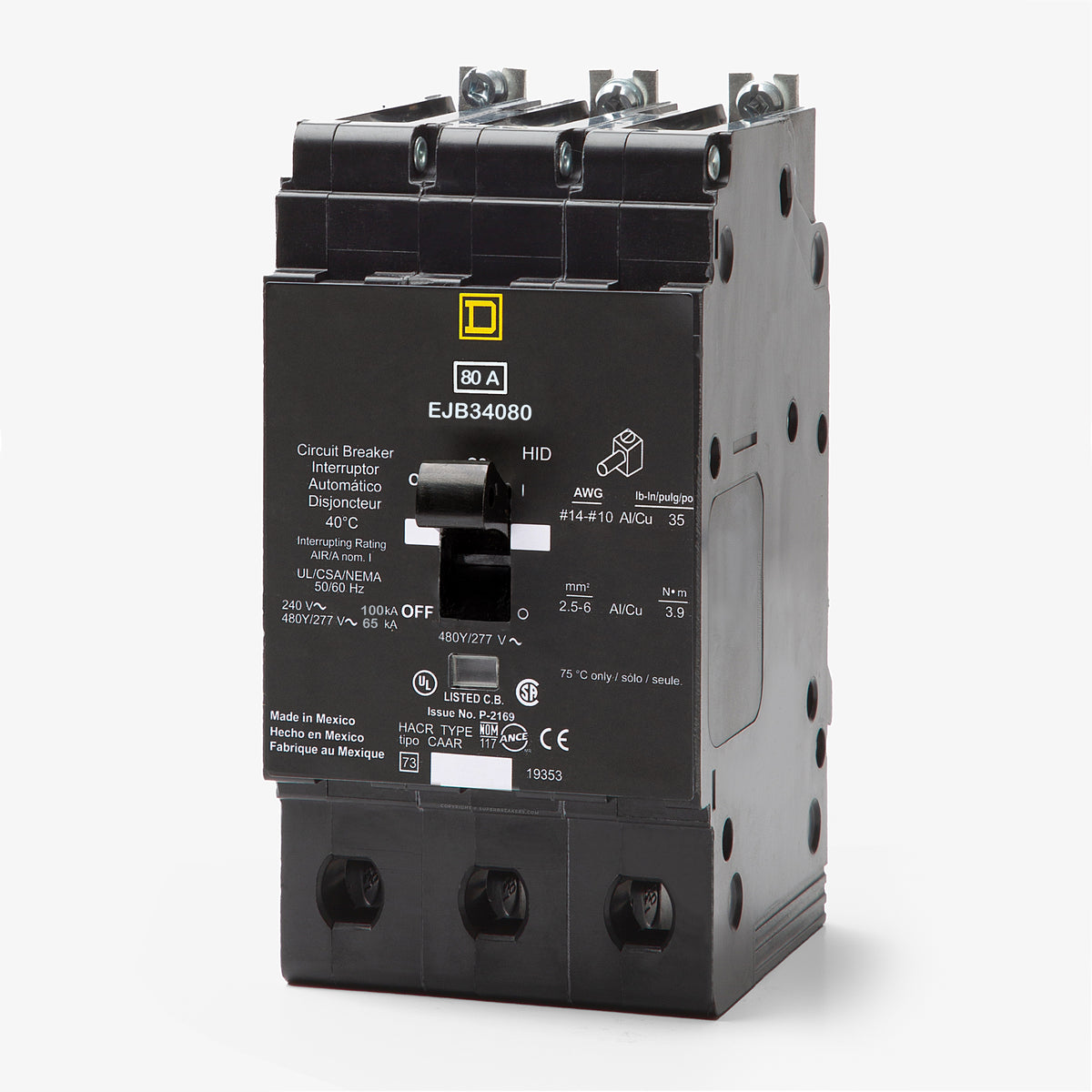

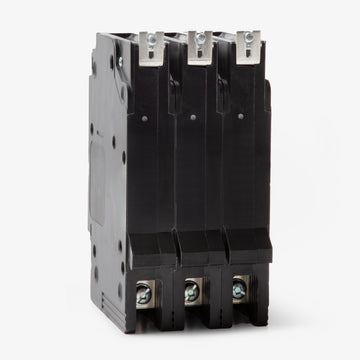

Square D EJB34080 Miniature Circuit Breaker
- 80A
- 3 Pole
- Bolt-On
Square D
EJB34080
Miniature Circuit Breaker
Brand
Square D
SKU
EJB34080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EJB34080 - 80A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D EJB34080 - 80A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EJB34080 |
| Series | EJB |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 120VAC, 100kA @ 240VAC, 65kA @ 277VAC, 65kA @ 480Y/277VAC |
| Frame Type | EJB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Standard Aluminum Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Quantity
Square D EJB34080 - 80A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EJB34080-R |
| Series | EJB |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 120VAC, 100kA @ 240VAC, 65kA @ 277VAC, 65kA @ 480Y/277VAC |
| Frame Type | EJB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Standard Aluminum Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Similar Items
70A 3 Pole Miniature Circuit Breaker
100A 3 Pole Miniature Circuit Breaker
60A 3 Pole Miniature Circuit Breaker
Description
Built for commercial and industrial applications, the Square D EJB34080 is a 3-pole, 80A miniature circuit breaker from the E-Frame family. It provides reliable thermal-magnetic overcurrent protection for 480Y/277VAC electrical systems. This unit mounts into Square D NF panelboards using a standard bolt-on connection. It accepts 14-2/0 AWG copper or aluminum conductors. Rated for 100 kAIC at 240V, it handles demanding fault currents and features a Visi-Trip indicator for rapid identification.Specifications
| Brand | Square D |
|---|---|
| Part Number | EJB34080 |
| Series | EJB |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 120VAC, 100kA @ 240VAC, 65kA @ 277VAC, 65kA @ 480Y/277VAC |
| Frame Type | EJB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Standard Aluminum Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat panelboards accept the EJB34080 circuit breaker?
The EJB34080 is a bolt-on E-frame breaker designed specifically for use in Square D NF panelboards. It requires three pole spaces for installation.
Can I use the EJB34080 on a 480V ungrounded delta system?
No. The 480Y/277VAC designation is a slash rating. This indicates the breaker is strictly designed for solidly grounded wye systems where the voltage to ground does not exceed 277V. It must not be installed on 480V ungrounded or corner-grounded delta systems.

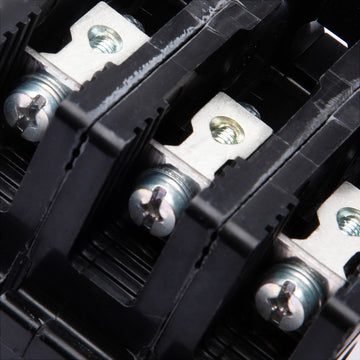

What are the wire size and torque requirements for the EJB34080 terminals?
The integrated lugs accept 14 to 2/0 AWG copper or 12 to 2/0 AWG aluminum wire. Required tightening torque depends on the wire size. Torque 14 to 10 AWG conductors to 34.5 lb-in, and 8 to 2/0 AWG conductors to 49.6 lb-in.
What is the difference between the Square D EDB34080, EGB34080, and EJB34080?
All three are 80A, 3-pole E-frame breakers that fit Square D NF panelboards, but their interrupting ratings differ. At 480Y/277VAC, the EDB34080 is rated for 18 kAIC, the EGB34080 for 35 kAIC, and the EJB34080 provides the maximum rating of 65 kAIC.
Is the EJB34080 rated for continuous loads at 100% of its nameplate amperage?
No. Like most standard Square D E-frame breakers, the EJB34080 is an 80% rated device. For continuous loads lasting three hours or more, the maximum current should not exceed 64 amps, which is 80% of its 80-amp nominal rating.
Are the trip settings adjustable on the EJB34080?
No. The EJB34080 features a thermal magnetic trip unit with fixed long-time and instantaneous trip functions. Neither the thermal overload nor the instantaneous magnetic trip threshold can be adjusted in the field.
