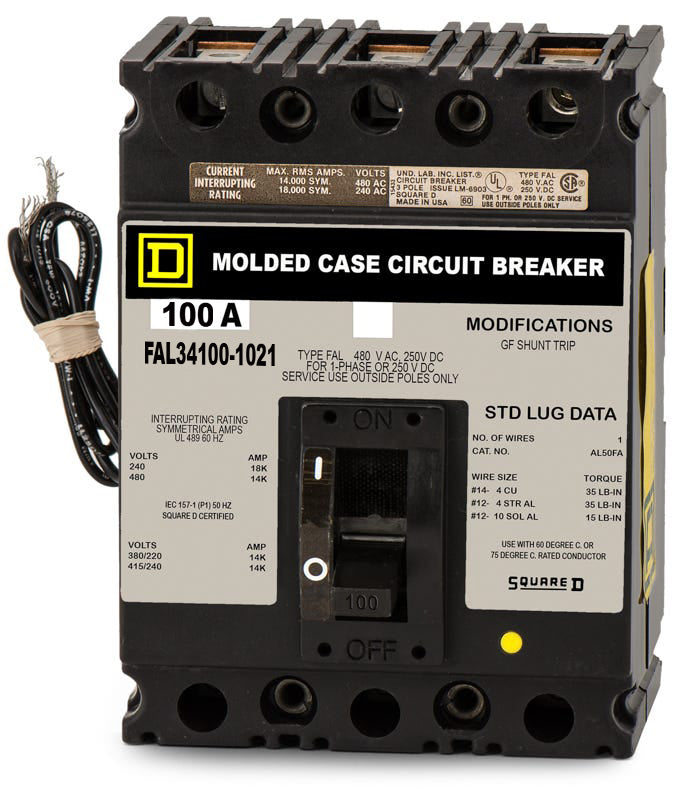

Square D FAL34100-1021 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
Square D
FAL34100-1021
Molded Case Circuit Breaker
Brand
Square D
SKU
FAL34100-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FAL34100-1021 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
80A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial applications, the Square D FAL34100-1021 is a 3-pole, 100A molded case circuit breaker. It provides thermal-magnetic protection for systems up to 480VAC. This unit mount breaker installs into compatible Square D enclosures and motor control centers. As a legacy F-Frame component, it is replaced by the BDL36100SA for modern upgrades. Rated for 25kAIC at 240VAC, this model includes a factory-installed 120-240VAC shunt trip for remote tripping capabilities.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL34100-1021 |
| Series | FAL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (120-240VAC), Lugs (AL100FA) |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
7 answersWhat does the "-1021" suffix indicate on the FAL34100-1021 catalog number?
The "-1021" suffix designates a factory-installed 120-240VAC shunt trip, which allows the circuit breaker to be tripped remotely for emergency stops or control logic.
What is the modern replacement for the legacy FAL34100-1021 breaker?
The FAL34100-1021 is part of the legacy Square D F-Frame series. For modern upgrades or new builds, it crosses over to the PowerPact B-Frame series, specifically the BDL36100SA when equipped with a shunt trip.
What equipment is the FAL34100-1021 designed to be installed in?
This unit-mount MCCB is compatible with Square D enclosures, switchboards, and motor control centers that accept legacy F-Frame breakers.
What are the acceptable wire sizes for the line and load lugs on this breaker?
The included lugs accept 14 AWG to 1/0 AWG copper conductors, or 12 AWG to 1/0 AWG aluminum conductors.
Can the FAL34100-1021 be applied in DC electrical systems?
Yes, this thermal-magnetic breaker is rated for DC applications up to 250VDC, providing an interrupting rating of 10kAIC at that voltage.
How is the FAL34100-1021 mounted?
This is a unit-mount circuit breaker. It fastens directly to a backpan or mounting bracket and connects to the circuit via wire lugs, rather than plugging or bolting onto a panelboard busbar.
Can the trip curve be adjusted on the FAL34100-1021?
No, this breaker uses a fixed thermal-magnetic trip unit. Both the long-time (overload) and instantaneous (short circuit) trip functions are factory set and non-adjustable.
