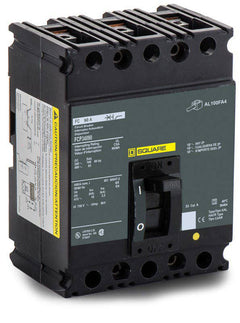

Square D FCP34100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
Square D
FCP34100
Molded Case Circuit Breaker
Brand
Square D
SKU
FCP34100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FCP34100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, the Square D FCP34100 3-pole, 100A MCCB provides reliable thermal magnetic protection. This F-frame breaker features a bolt-on mounting style to install into Square D panelboards, switchboards, and motor control centers. It serves as a legacy component replaced by the HJL36100. Rated for 65 kAIC at 480VAC, it ensures superior fault clearing. The unit is HACR rated and includes line and load side lugs.Specifications
| Brand | Square D |
|---|---|
| Part Number | FCP34100 |
| Series | FCP |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC |
| Frame Type | FCL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB-1, W-C-375B/GEN |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Extra High Interrupting Capacity, Non-Interchangeable Trip |
Product FAQs
7 answersWhat types of enclosures and panels are compatible with the FCP34100?
This bolt-on F-frame circuit breaker is designed for use in Square D panelboards, switchboards, and motor control centers that accept legacy FCL or F-frame breakers.
What wire sizes and materials are accepted by the lugs on this breaker?
The line and load side lugs accept 14 AWG to 1/0 AWG wire. They are rated for both copper and aluminum conductors.
What does the LI trip function indicate on the FCP34100?
The LI designation means the thermal magnetic trip unit provides Long-Time protection for sustained overloads and Instantaneous protection for short circuits. Both the thermal and magnetic trip points are fixed.
Is the Square D FCP34100 still in active production?
The FCP34100 is a legacy F-frame circuit breaker. For new installations or direct upgrades, Schneider Electric typically recommends the PowerPact H-frame series, such as the HJL36100, as a modern replacement.
Can this breaker be used in 240V systems?
Yes. While it has a maximum voltage rating of 480V AC with a 65kA interrupting capacity, it is fully rated for 240V AC systems, where it provides a higher interrupting rating of 100kA.
Does this breaker mount onto an I-Line bus?
No. The FCP34100 features a bolt-on connection type. It is not compatible with I-Line plug-on panelboards, which require breakers with specialized I-Line jaw connectors.
Does this breaker provide ground fault or equipment protection?
No. The FCP34100 is a standard thermal magnetic breaker with LI functions. It does not include ground fault or equipment protection features.
