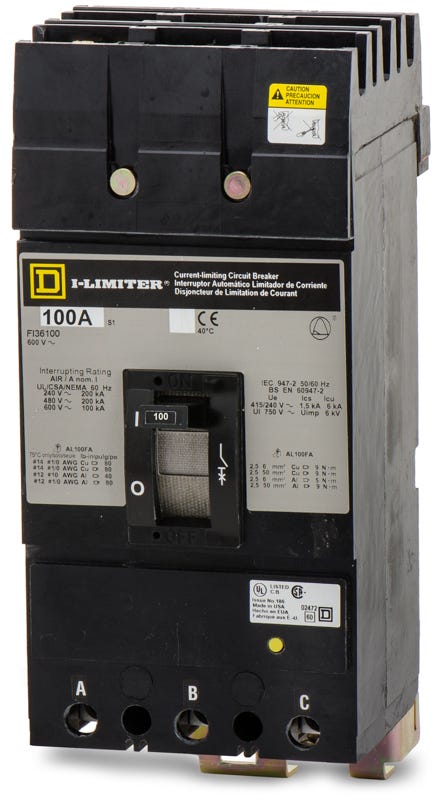

Square D FIL36100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
Square D
FIL36100
Molded Case Circuit Breaker
Brand
Square D
SKU
FIL36100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FIL36100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FIL36100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FIL36100-R |
| Series | FIL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 100kA @ 600VAC |
| Frame Type | FIL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Individual Enclosures |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Motor Operator, Lug Kits |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator |
| Special Features | Current Limiting |
Quantity
Square D FIL36100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FIL36100 |
| Series | FIL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 100kA @ 600VAC |
| Frame Type | FIL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Individual Enclosures |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Motor Operator, Lug Kits |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator |
| Special Features | Current Limiting |
Similar Items
50A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Providing superior overcurrent defense, the Square D FIL36100 is a 100-amp, 3-pole molded case circuit breaker from the legacy F-Frame family. It is equipped with a thermal-magnetic trip unit for commercial applications. The breaker mounts into Square D switchboards and standalone enclosures via a standard unit-mount configuration. When upgrading older panels, the PowerPact HRL36100 serves as the manufacturer replacement. It boasts a massive 200 kAIC interrupting rating at 480VAC.Specifications
| Brand | Square D |
|---|---|
| Part Number | FIL36100 |
| Series | FIL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 100kA @ 600VAC |
| Frame Type | FIL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Individual Enclosures |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Motor Operator, Lug Kits |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator |
| Special Features | Current Limiting |
Product FAQs
9 answersIs the Square D FIL36100 still manufactured?
The FIL36100 is a legacy F-frame breaker that has been superseded by the PowerPact H-frame series. For applications requiring a direct replacement with the same 200kAIC interrupting rating at 480VAC, the PowerPact HRL36100 is the recommended manufacturer substitute.
What does the I in the FIL36100 catalog number indicate?
In Square D legacy F-frame nomenclature, the I designates a current limiting circuit breaker. This provides an exceptionally high interrupting rating of 200kAIC at 480VAC, making it suitable for distribution systems with high available fault currents.
Can the FIL36100 replace a standard FAL or FHL breaker?
Yes, the FIL36100 shares the same physical dimensions and unit mount configuration as other legacy F-frame breakers. It can serve as a direct drop-in upgrade for FAL or FHL models when a higher interrupting capacity is required by the system design.
What type of enclosures can accommodate the FIL36100?
This unit mount breaker is designed for installation in Square D switchboards, motor control centers, and individual enclosures configured for legacy F-frame breakers. It is not compatible with I-Line panelboards, which require specialized plug-on mounting brackets.
Are the lugs removable on the FIL36100?
Yes, the standard mechanical lugs on this feed-thru breaker can be removed or replaced in the field. The factory lugs accept 14 to 1/0 AWG copper or aluminum conductors. Always torque replacement lugs to the specifications printed on the breaker faceplate.
Does the FIL36100 provide ground fault protection?
No, this model features a standard thermal magnetic trip unit with long-time and instantaneous functions for overload and short circuit protection. It does not include integrated ground fault or equipment protection features.
Can the FIL36100 be reverse fed?
Standard thermal magnetic F-frame breakers can generally be reverse fed unless specifically marked Line and Load on the housing. Always verify the physical labeling on your specific unit before wiring it in a reverse feed configuration.
Will PowerPact H-frame accessories work on the FIL36100?
No, legacy F-frame breakers require specific F-frame internal accessories. Shunt trips, auxiliary switches, and undervoltage releases designed for the newer PowerPact series are not backwards compatible with the FIL36100.
Can I adjust the trip settings on the FIL36100?
No, the FIL36100 features a fixed thermal and fixed magnetic trip unit. Neither the long-time overload nor the instantaneous short circuit settings can be adjusted in the field.
