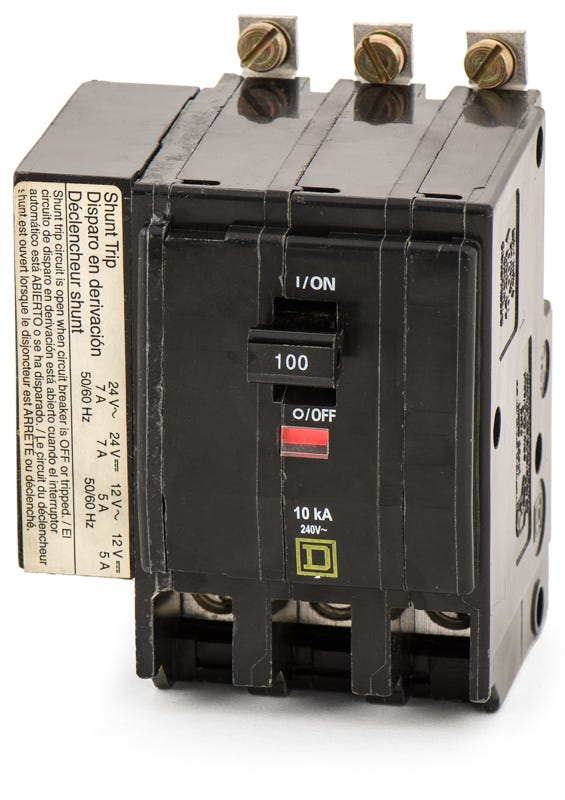

Square D QOB3100-1042 QOB31001042 - 100A 3 Pole Miniature Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
Square D
QOB3100-1042
QOB31001042 - 100A 3 Pole Miniature Circuit Breaker
Brand
Square D
SKU
QOB3100-1042
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB31001042 - 100A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
100A 3 Pole Miniature Circuit Breaker
100A 3 Pole Miniature Circuit Breaker
90A 3 Pole Miniature Circuit Breaker
Description
Integrating a factory-installed 1A/1B auxiliary switch, this 100A, 3-pole miniature circuit breaker enables advanced status monitoring for control systems. It delivers 10kAIC of thermal-magnetic protection for 240VAC commercial applications. The unit fastens securely into Square D NQ and NQOD panelboards using a standard bolt-on connection. Its box lug terminals are rated for 4 AWG to 2/0 AWG copper or aluminum wiring.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB3100-1042 |
| Series | QOB |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Auxiliary Switch |
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Product FAQs
8 answersWhat does the "-1042" suffix mean on the QOB31001042 catalog number?
The "-1042" suffix indicates that this breaker includes a factory-installed shunt trip accessory rated for 12V or 24V AC/DC. This allows the breaker to be tripped remotely using a separate control circuit.
Which panelboards are compatible with the QOB31001042 circuit breaker?
This bolt-on miniature circuit breaker is designed exclusively for use in Square D NQ and NQOD series panelboards. It cannot be installed in standard QO load centers, which require plug-on connections.
How many panel spaces does the QOB31001042 require?
While the breaker itself is a 3-pole device, the factory-installed shunt trip accessory requires one additional pole space. Therefore, this unit will occupy a total of four pole spaces in your NQ or NQOD panelboard.
Can I add a shunt trip to a standard QOB3100 breaker in the field?
No. Square D QO and QOB miniature circuit breakers do not support field-installable internal accessories. The shunt trip must be factory-installed, which requires ordering the specific QOB31001042 catalog number.
What is the difference between the QO31001042 and the QOB31001042?
The QO31001042 is a plug-on circuit breaker designed for QO load centers, while the QOB31001042 features a bolt-on connection specifically designed for NQ and NQOD commercial panelboards. Both models include the 12/24V AC/DC shunt trip.
Can the QOB31001042 be installed in a 480Y/277V panelboard?
No. This circuit breaker is rated for a maximum of 240V AC. For 480Y/277V systems, you will need a different breaker series, such as the Square D EDB, EGB, or EJB frame breakers, depending on your specific panelboard type.
Does the factory-installed shunt trip require a separate power source to operate?
Yes. The shunt trip coil must be energized by an external 12V or 24V AC/DC control circuit to remotely trip the breaker. It does not draw power from the breaker's primary load terminals.
Can I use this breaker if my system requires a 22kAIC fault current rating?
No. The QOB31001042 has a maximum interrupting rating of 10kAIC at 120/240V AC. If your system requires a 22kAIC rating, you must upgrade to the QOB-VH series, such as the QOB3100VH, and ensure it is ordered with the appropriate shunt trip suffix.
