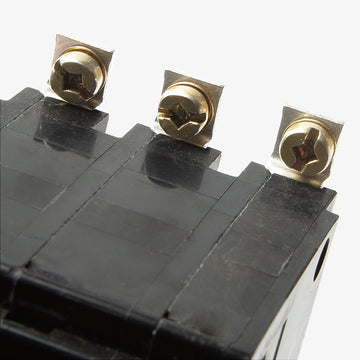

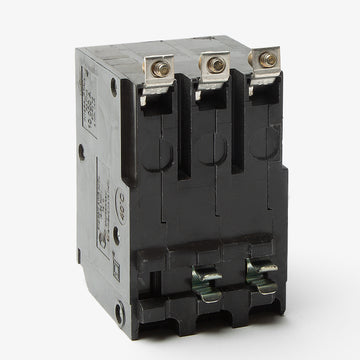

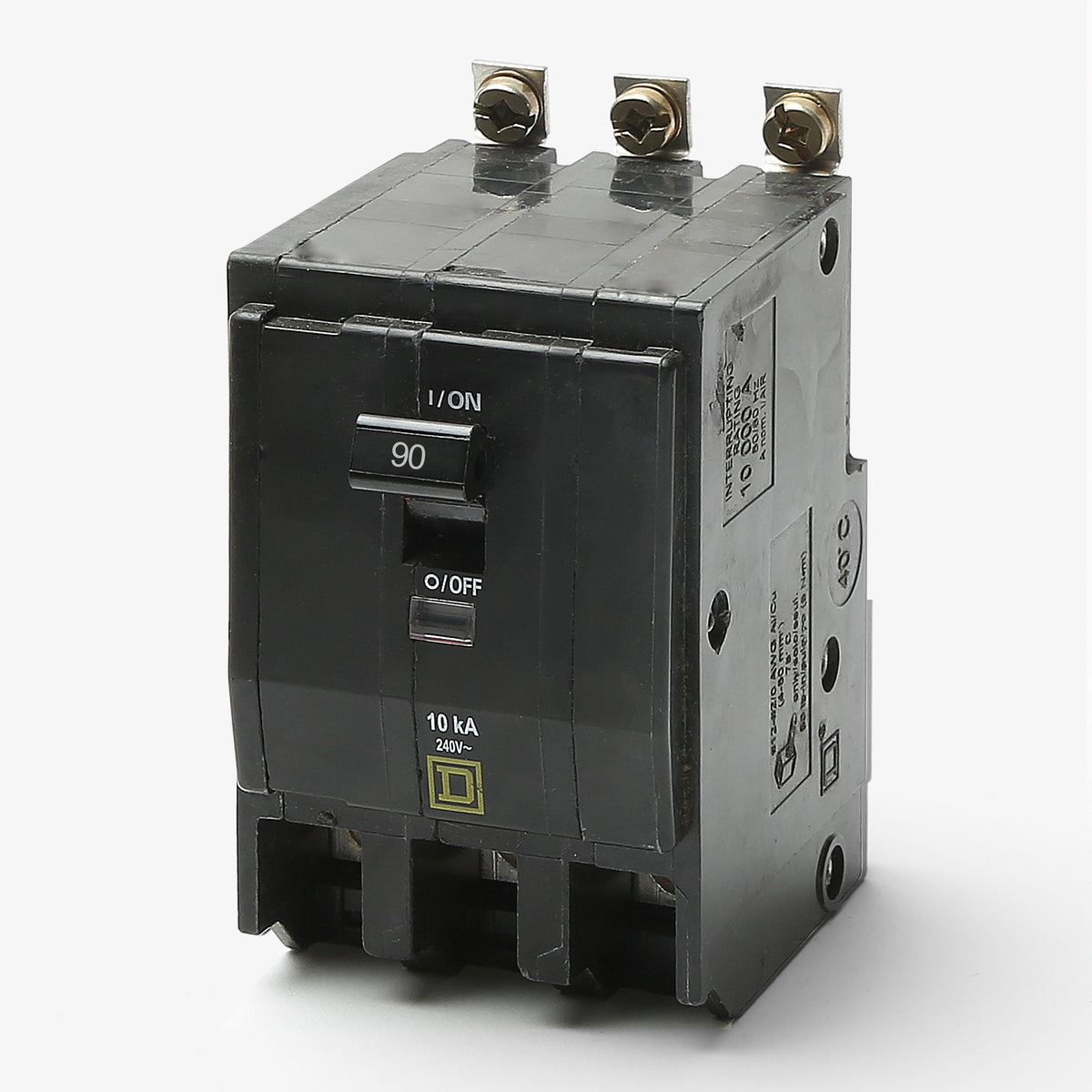

Square D QOB390 Miniature Circuit Breaker
- 90A
- 3 Pole
- Bolt-On
Square D
QOB390
Miniature Circuit Breaker
Brand
Square D
SKU
QOB390
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB390 - 90A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB390 - 90A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB390 |
| Series | QOB |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Sold out
Quantity
Square D QOB390 - 90A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB390-R |
| Series | QOB |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Similar Items
90A 3 Pole Miniature Circuit Breaker
100A 3 Pole Miniature Circuit Breaker
100A 3 Pole Miniature Circuit Breaker
Description

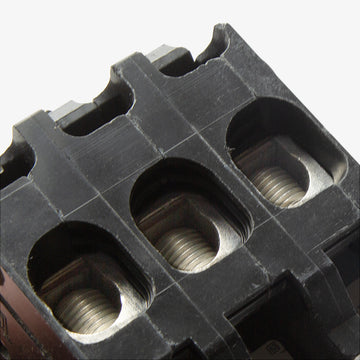

Part of the QO family, this 90A miniature circuit breaker provides thermal-magnetic overcurrent protection for commercial and industrial applications. It is rated for 10kAIC at 240VAC. The three-pole unit mounts into Square D NQ and NQOD panelboards using a secure bolt-on connection. It accepts 4 AWG to 2/0 AWG aluminum or copper wiring via standard box lugs. A built-in Visi-Trip indicator provides immediate visual confirmation of a tripped circuit. The breaker is also HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB390 |
| Series | QOB |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Product FAQs
4 answersWhat panelboards are compatible with the QOB390?
This breaker bolts into Square D NQ and NQOD panelboards. Because it utilizes a bolted bus connection, it will not fit in standard QO residential load centers that require plug-on breakers.
How much panel space does this circuit breaker occupy?
It requires three standard 3/4-inch spaces within your panelboard chassis.
Is there a version of this breaker with a higher interrupting rating?
Yes. If your fault current calculations exceed 10kA at 240VAC, the QOB390VH is the direct upgrade that provides a 22kAIC rating in the same footprint.
Is the QOB390 HACR rated?
Yes, it is HACR rated, meaning it is certified for safely supplying power to heating, air conditioning, and refrigeration equipment motor loads.
