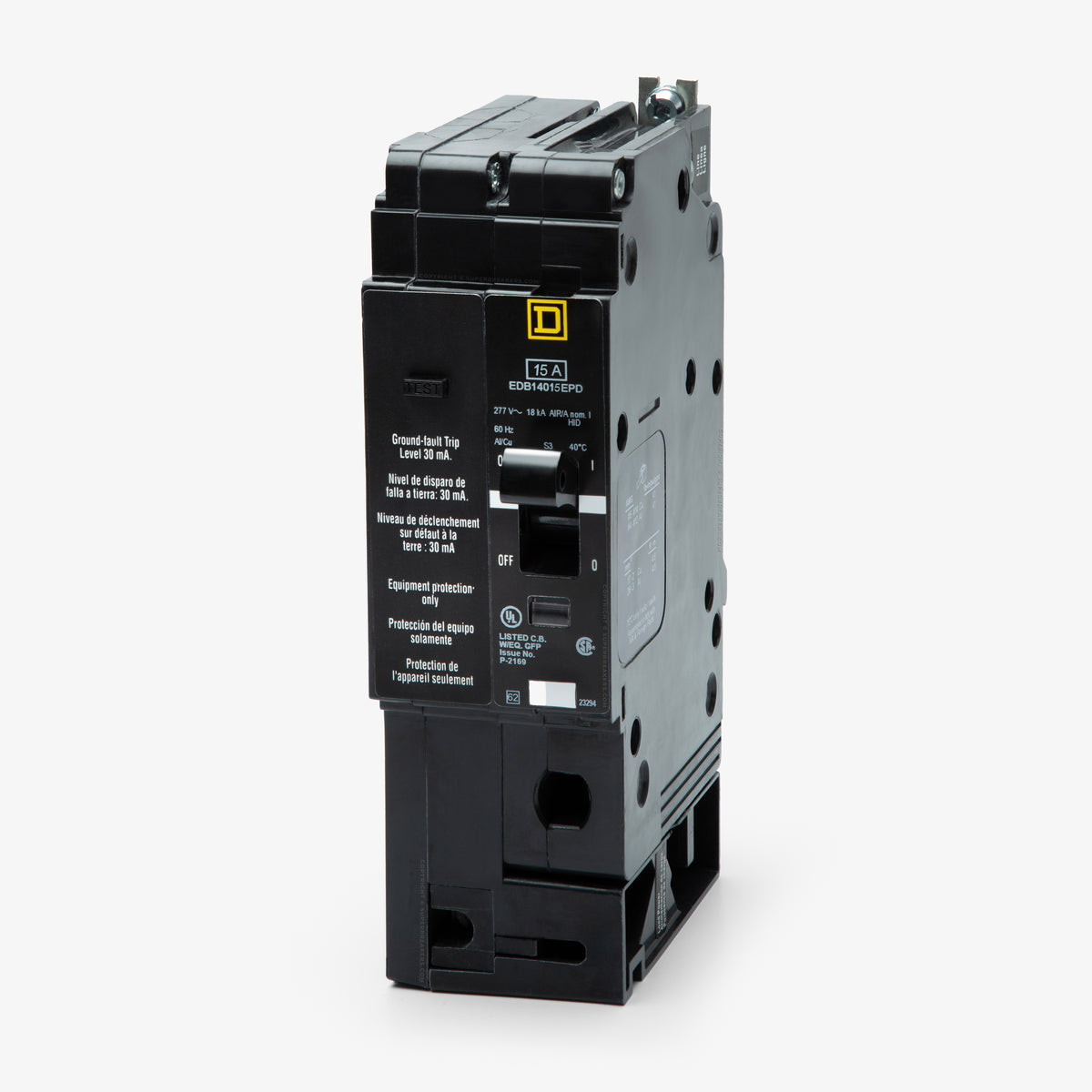

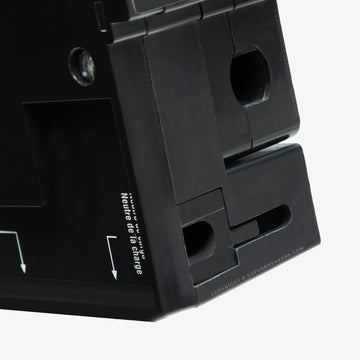

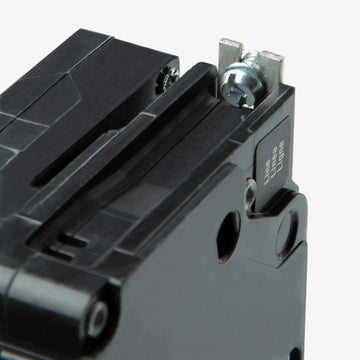

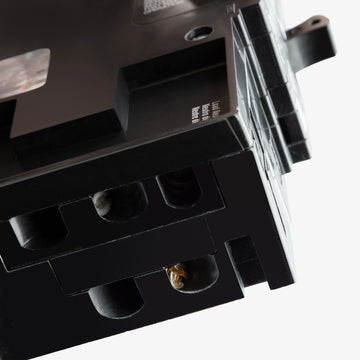

Square D EDB14015EPD GFEP Miniature Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Square D
EDB14015EPD
GFEP Miniature Circuit Breaker
Brand
Square D
SKU
EDB14015EPD
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EDB14015EPD - 15A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
20A GFEP Miniature Circuit Breaker
30A GFEP Miniature Circuit Breaker
Description
Engineered for commercial and industrial applications, the EDB14015EPD delivers 30mA ground fault protection to safeguard machinery rather than personnel. This 15A single-pole device installs into Square D NF panelboards using a secure bolt-on connection. Featuring a 25kAIC rating at 120VAC and a Visi-Trip indicator, it allows maintenance teams to quickly identify tripped circuits. The thermal-magnetic trip mechanism ensures reliable performance for critical equipment loads.Specifications
| Brand | Square D |
|---|---|
| Part Number | EDB14015EPD |
| Series | EDB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 120VAC, 18kA @ 240VAC, 18kA @ 277VAC, 18kA @ 120/240VAC |
| Frame Type | EDB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, HID, IEC 60947-2, NEMA AB 1, UL 489, UL 1053 |
| Approval | cULus, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, SWD Rated, Visual Trip Indicator |
Product FAQs
5 answersWhat panelboards are compatible with the EDB14015EPD?
This E-frame breaker is designed exclusively for use in Square D NF series panelboards. It features a bolt-on connection and will not fit NQ or QO load centers.
How much space does this 1-pole breaker require in the panel?
Although it operates as a 1-pole breaker, the integrated ground fault electronics module requires the EDB14015EPD to occupy two pole spaces in the NF panelboard.
What does the EPD suffix indicate on this breaker?
EPD stands for Equipment Protection Device. It provides ground fault protection for equipment with a 30mA trip threshold. It is not a Class A GFCI breaker, which has a 5mA threshold, and should not be used where personnel protection is required by code.
How is the ground fault circuit wired for this breaker?

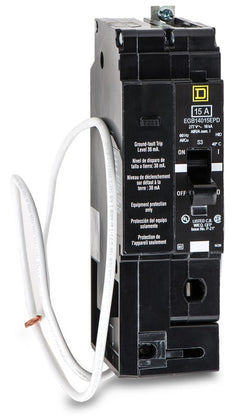

The breaker features a pigtail neutral wire that must be connected directly to the panelboard neutral bar. This connection is required to power the internal ground fault circuitry and ensure proper EPD operation.
What are the higher interrupting rating alternatives to the EDB14015EPD?
If an interrupting rating higher than 18kA at 277VAC is required, you can use the EGB14015EPD for 35kA or the EJB14015EPD for 65kA. Both alternatives maintain the same physical footprint and NF panel compatibility.
