Square D FA14015C Molded Case Circuit Breaker
- 15A
- 1 Pole
- I-Line
Square D
FA14015C
Molded Case Circuit Breaker
Brand
Square D
SKU
FA14015C
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

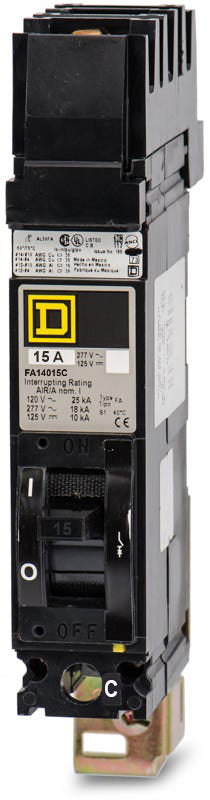

Square D FA14015C - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 1 Pole Molded Case Circuit Breaker
60A 1 Pole Molded Case Circuit Breaker
80A 1 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the Square D FA14015C is a 1-pole, 15A molded case circuit breaker. It delivers dependable thermal-magnetic protection for electrical distribution systems. This F-Frame breaker mounts into Square D I-Line panelboards using a factory-configured Phase C jaw connection. It is replaced by the newer HDA140153 model for system upgrades. Rated for 18kAIC at 277VAC, it ensures robust fault clearing. The unit is HACR rated and includes a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA14015C |
| Series | FA |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 120VAC, 18kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Phase C Jaws (Factory Configured) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489, W-C-375B/GEN |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Phase C Connection |
Product FAQs
6 answersWhat does the "C" suffix indicate in the FA14015C catalog number?
The "C" signifies that this 1-pole breaker is factory-configured with a Phase C jaw connection. This specific jaw alignment dictates which phase the breaker connects to when installed into a Square D I-Line panelboard.
Is the Square D FA frame series still in active production?
No, the FA frame is a legacy molded case circuit breaker series. For modern system upgrades, Schneider Electric replaced the FA series with the PowerPact H-Frame series, which is also compatible with I-Line panelboards.
Can I install the FA14015C in a standard QO load center?
No, the FA14015C is an F-Frame molded case circuit breaker designed exclusively for industrial and commercial I-Line panelboards. It will not fit in residential QO or Homeline load centers.
Are the trip units on the FA14015C interchangeable?
No, this FA frame breaker utilizes a sealed construction with a non-interchangeable thermal-magnetic trip unit. The long-time and instantaneous trip settings are fixed and cannot be modified in the field.
Is the FA14015C suitable for HVAC applications?
Yes, this breaker is HACR rated, making it approved for use with heating, air conditioning, and refrigeration equipment motor loads.
How does the I-Line plug-in connection work on the FA14015C?
The I-Line plug-in design allows the breaker jaws to connect directly onto the panelboard bus stack. The breaker is then secured to the backpan with a mounting screw, eliminating the need for cabled bus connections and reducing installation time.
