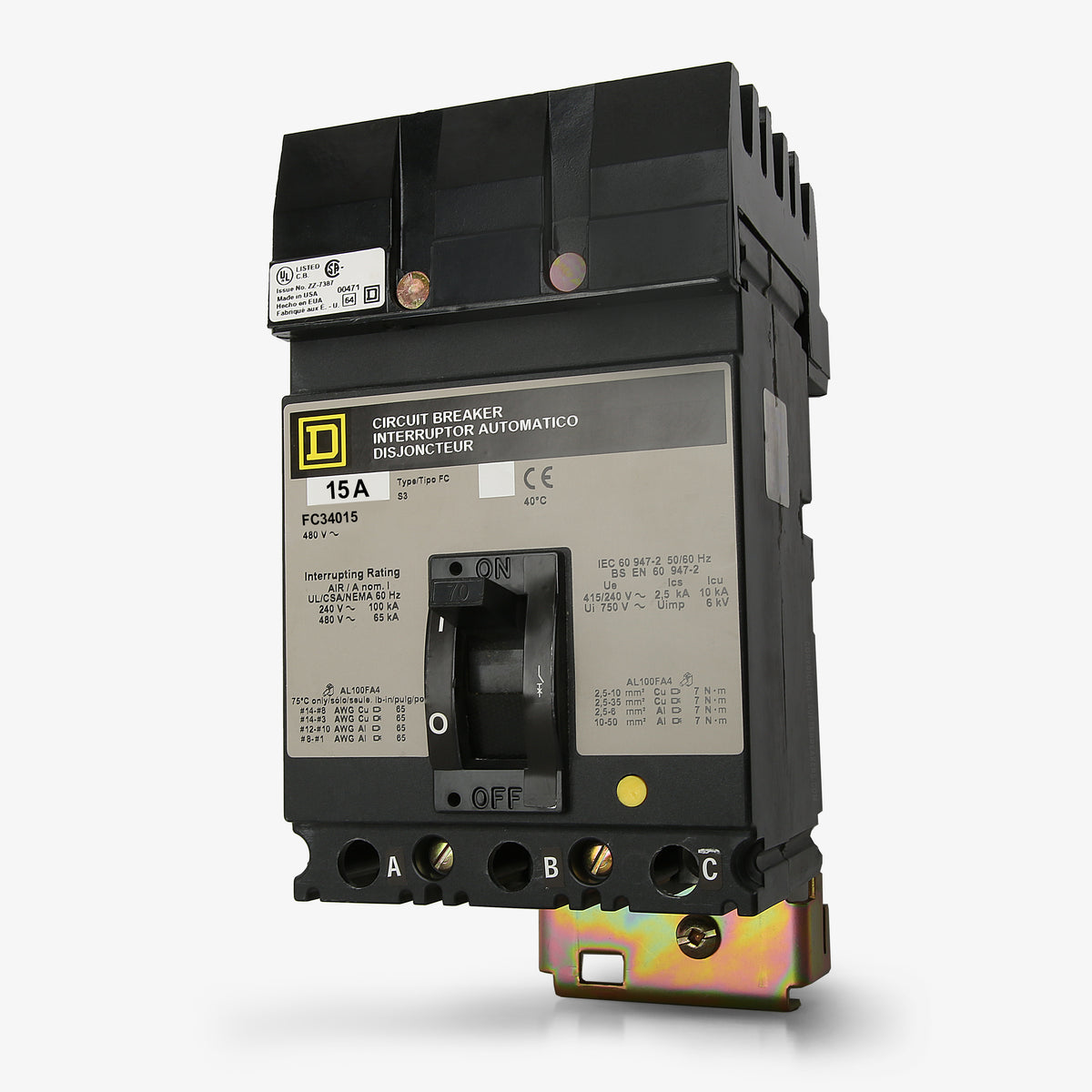

Square D FC34015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- I-Line
Square D
FC34015
Molded Case Circuit Breaker
Brand
Square D
SKU
FC34015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FC34015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FC34015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FC34015 |
| Series | FC |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FC |
|---|---|

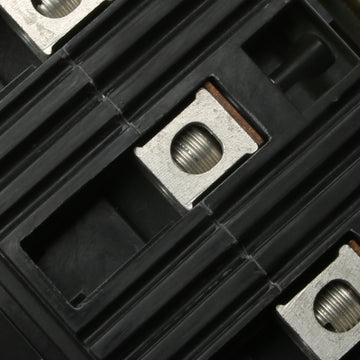

| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Extra High Interrupting Capacity, Visual Trip Indicator |
Quantity
Square D FC34015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FC34015-R |
| Series | FC |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Extra High Interrupting Capacity, Visual Trip Indicator |
Similar Items
20A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Providing extra high interrupting capacity, the Square D FC34015 is a 3-pole, 15A molded case circuit breaker from the legacy F-Frame series. It delivers robust thermal-magnetic protection with long-time and instantaneous (LI) trip functions for industrial environments. This breaker installs into Square D I-Line panelboards and switchboards. For system upgrades, it is replaced by the PowerPact HJA36015. It features a 65kAIC rating at 480VAC, HACR certification, and a Visi-Trip flag.Specifications
| Brand | Square D |
|---|---|
| Part Number | FC34015 |
| Series | FC |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Extra High Interrupting Capacity, Visual Trip Indicator |
Product FAQs
5 answersWhich panelboards are compatible with the FC34015 circuit breaker?
This breaker features an I-Line plug-in connection and is designed specifically for Square D I-Line panelboards and switchboards. It mounts directly to the internal busbar via its integrated plug-on jaw mechanism.
What is the modern replacement for the legacy FC34015 circuit breaker?
For new installations or panel upgrades, this legacy F-Frame breaker is replaced by the Square D PowerPact H-Frame HJA36015. The HJA36015 provides the same 15A, 3-pole configuration, I-Line mounting, and 65kAIC at 480VAC interrupting rating as the original unit.
Can the trip settings on the FC34015 be adjusted?
No. This breaker features a traditional thermal-magnetic trip unit with fixed thermal and fixed magnetic settings. It provides standard long-time and instantaneous (LI) overcurrent protection without dial adjustability.
Is the FC34015 suitable for use in DC electrical systems?
Yes. In addition to its standard 240VAC and 480VAC ratings, this thermal-magnetic breaker is certified for DC systems up to 250VDC, providing a 10kA interrupting rating.
Does the FC34015 require a separate mounting kit for installation?

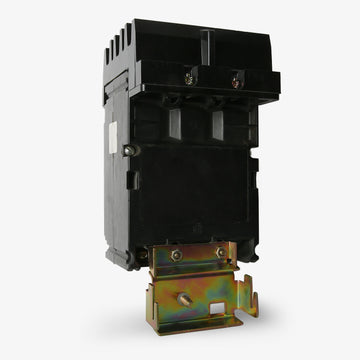

No. The breaker has an integrated I-Line jaw mechanism on the line side, allowing it to lock directly onto the busbar of a compatible Square D I-Line panelboard without requiring additional mounting brackets or hardware.
