Square D FDA34015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- I-Line
Square D
FDA34015
Molded Case Circuit Breaker
Brand
Square D
SKU
FDA34015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

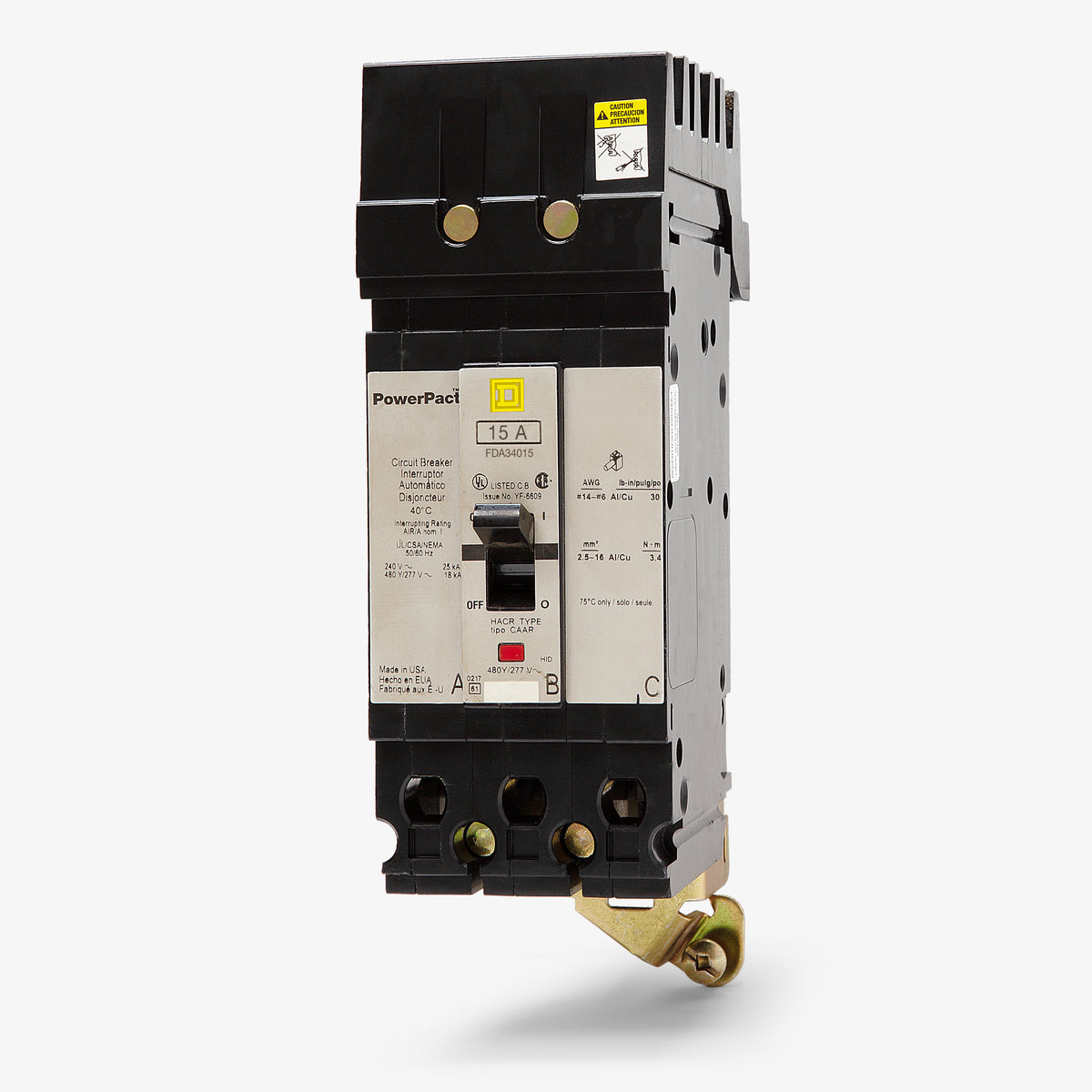

Square D FDA34015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
20A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Built for industrial power distribution, this 15A thermal-magnetic breaker offers robust overcurrent defense with fixed LI trip functions. It carries a Switching Duty (SWD) rating, making it suitable for switching 120V or 277V fluorescent lighting loads. Designed exclusively for Square D I-Line panelboards, the breaker utilizes a specialized jaw connection for secure phase bus mounting. It functions as a reliable substitute for FH34015 models and is superseded by the HDA36015 equivalent.Specifications
| Brand | Square D |
|---|---|
| Part Number | FDA34015 |
| Series | FDA |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhat panelboards accept the FDA34015 circuit breaker?

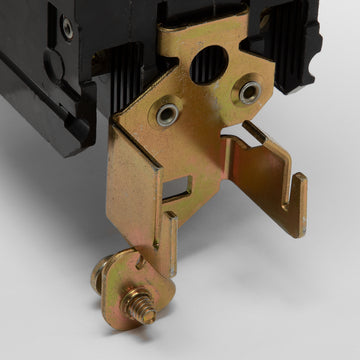

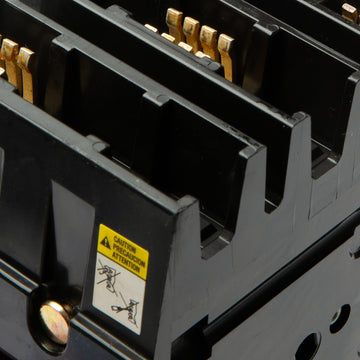

The FDA34015 is designed exclusively for Square D I-Line panelboards and switchboards. It utilizes a specialized plug-on jaw connection that mounts directly to the I-Line phase bus.
What is the modern PowerPact replacement for the FDA34015?
The legacy F-frame FDA34015 has been superseded by the Square D PowerPact H-frame series. The direct modern equivalent is the HDA36015, which maintains the same 15A rating, 3-pole configuration, and I-Line mounting style.
What wire gauge range is supported by the FDA34015 terminals?
The load-side lugs on this breaker accept 14 AWG to 1/0 AWG copper or aluminum conductors.
Can I use the FDA34015 in a standard unit-mount application?
No. The FDA34015 features an I-Line plug-in connection on the line side. It cannot be used as a standard lug-to-lug or unit-mount breaker.
Are the trip settings adjustable on the FDA34015?
No. This breaker features a thermal-magnetic trip unit with fixed long-time and fixed instantaneous (LI) trip functions. Neither the thermal nor the magnetic settings are adjustable.
Is the FDA34015 rated for switching lighting loads?
Yes, 15A models like the FDA34015 carry a Switching Duty (SWD) rating, making them suitable for switching 120V or 277V fluorescent lighting loads on a regular basis.
