Square D FHL3601513M Motor Circuit Protector
- 15A
- 3 Pole
- Unit Mount
Square D
FHL3601513M
Motor Circuit Protector
Brand
Square D
SKU
FHL3601513M
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

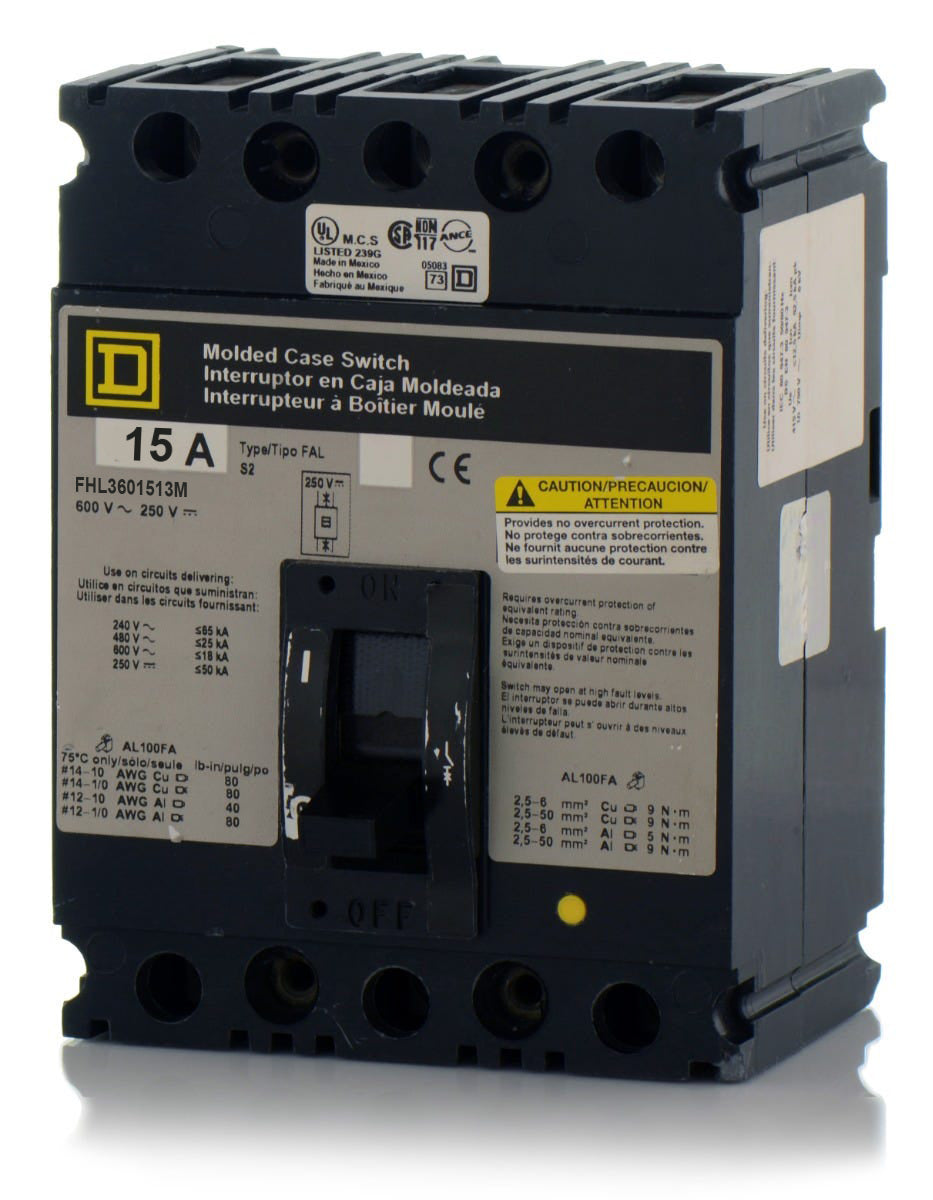

Square D FHL3601513M - 15A 3 Pole Motor Circuit Protector
New
Quantity
Similar Items
100A 3 Pole Motor Circuit Protector
15A 3 Pole Motor Circuit Protector
Description
Engineered for reliable short-circuit defense, this 15A Mag-Gard unit provides magnetic-only protection for motor branch circuits. It mounts into standard motor control centers and combination starters, working alongside separate overload relays to prevent equipment damage. While the original F-Frame series has transitioned to the modern PowerPact H-Frame (such as the HGL36030M38X), this specific model maintains a 65kAIC rating at 240V and features an adjustable instantaneous trip of 50-180A.Specifications
| Brand | Square D |
|---|---|
| Part Number | FHL3601513M |
| Series | FHL |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Amperage Range | 50-180A |
|---|
| Frame Type | FHL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Motor Control Centers, Motor Starters |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector |
